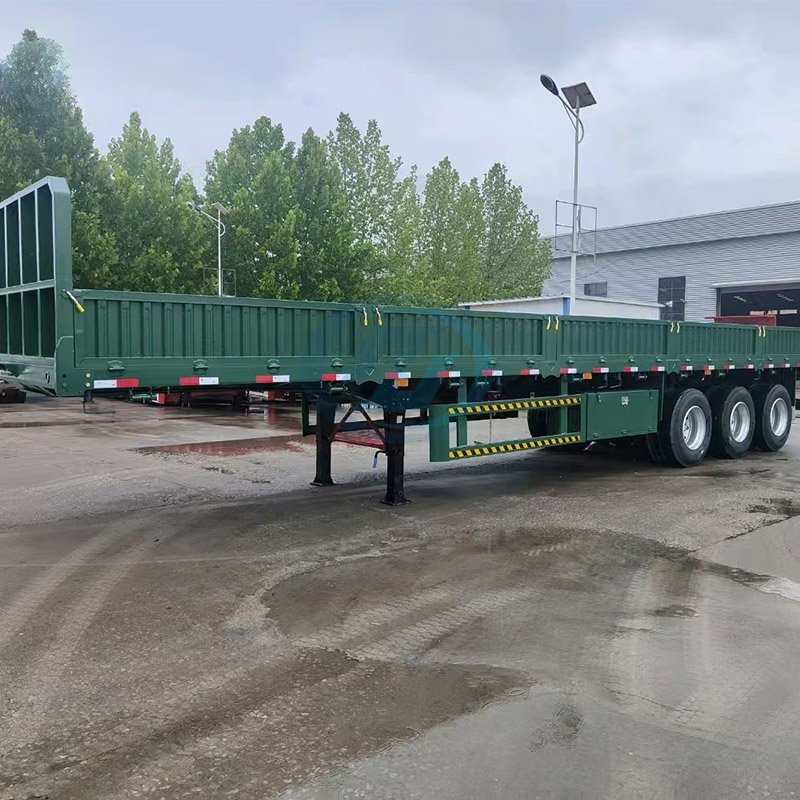

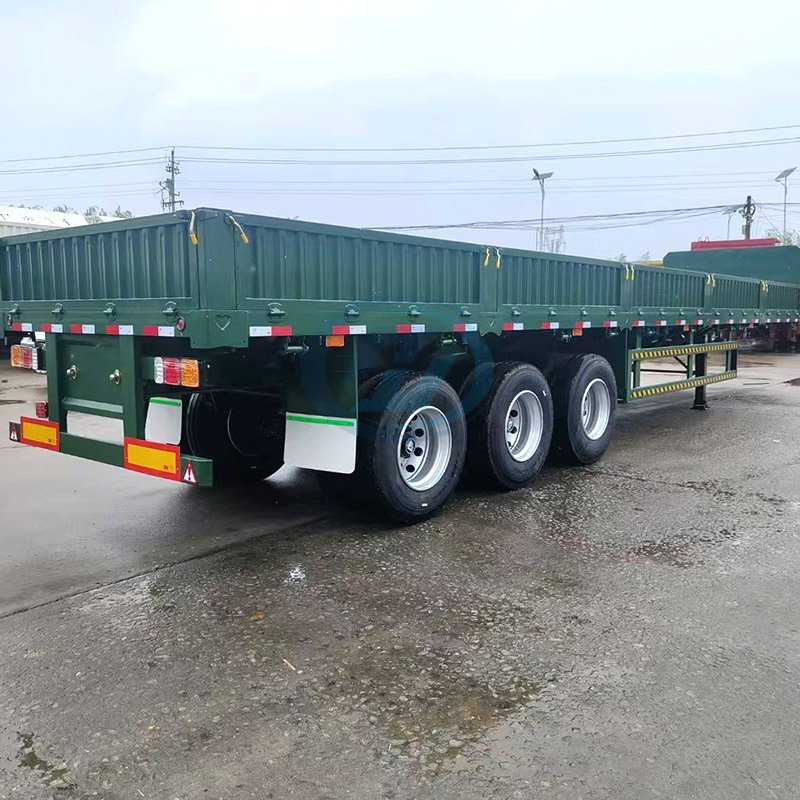

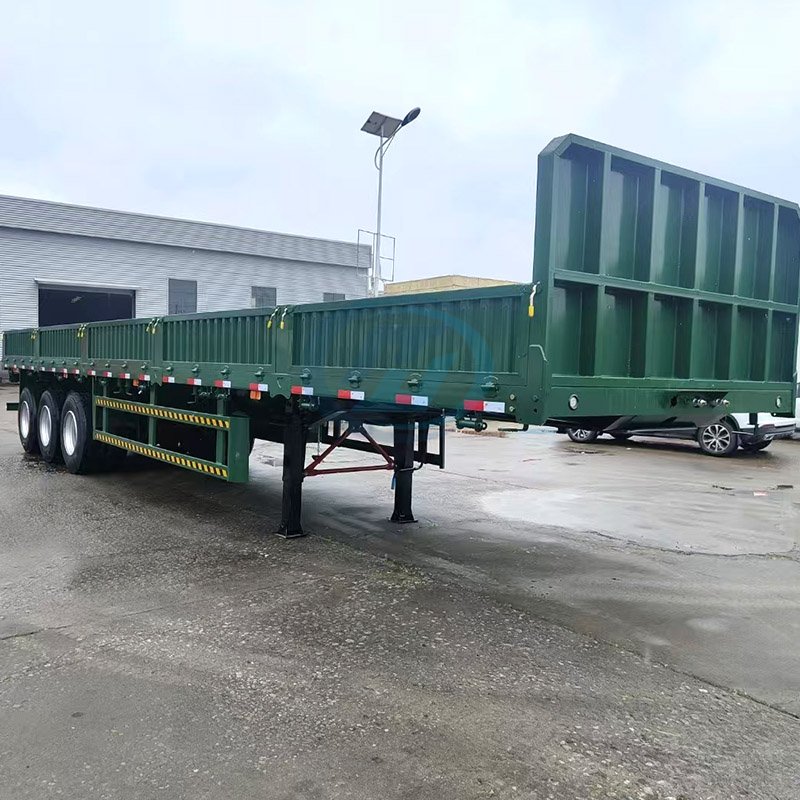

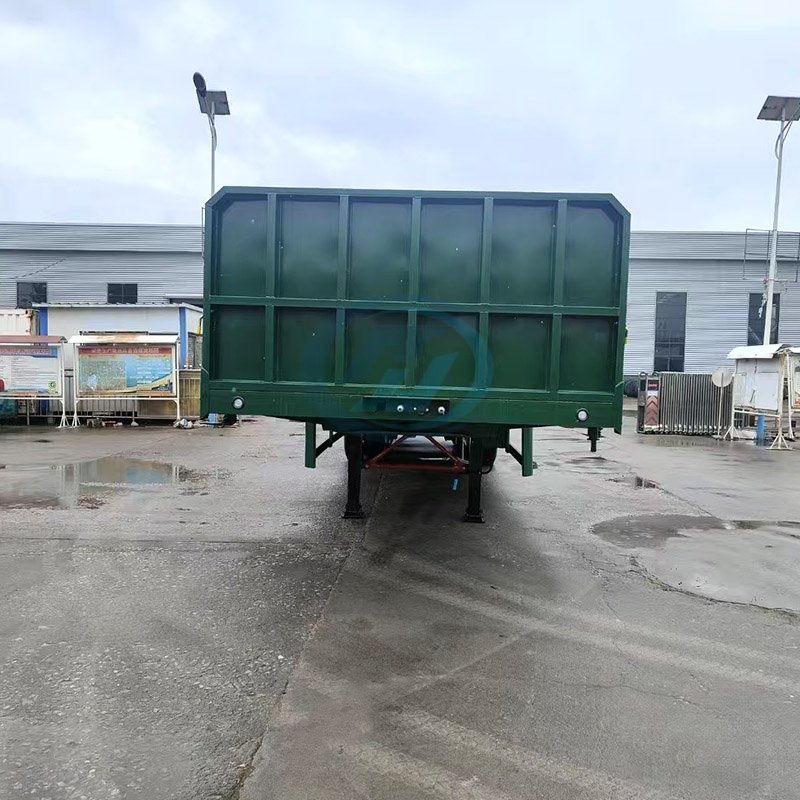

The 3-axle bulk cargo transportation semitrailer offers a robust design with a large payload capacity of 50,000kg, a durable 500mm main beam constructed with submerged arc welding, and enhanced safety features including a 90# exchangeable kingpin and 30/30 type brakes on each axle. It also features versatile mechanical suspension with 10 leaf springs, practical tools and spare tire carrier, and reliable components such as JOST landing gear and FUWA 13Tx3 axles, making it an efficient and reliable choice for transporting heavy loads.
Specification
Technical Specification Confirm Document | ||
Type | 3 axle bulk cargo transportation semitrailer | |
Parameter | dimension(mm) | length×width×height:12500×2500×1610mm |
king pin setting(mm) | According to the design | |
fifth wheel height(mm) | ||
wheelbase(mm) | According to the design | |
tare weight(kg) | 6,200 | |
payload (kg) | 50,000 | |
Fabric | main beam(mm) | 500,submerged arc welding |
flange and web(mm) | 14/8/14 | |
Lock | 12 | |
Paint | primer + top coat | |
OEM | landing gear | JOST |
Kingpin | 90# exchangeable | |
brake system | 30/30 type on each axle | |
ABS | No | |
Suspension | mechanical suspension with 10 leaf spring. | |
Axle | FUWA 13Tx3 | |
Tire | 315/80R22.5*8 | |
Rim | Equip 8 per chassis. | |
tool box | steel box,on right,stainless steel lock | |
spare tire carrier | 2 units per chassis 2个 | |
box | 12500*2500*800mm | |
Color | ||
Others | Marking: “LONG VEHICLE” sign on the rear end.LED lights,equip side turn light. |
Product Features
1. Large Payload Capacity: With a tare weight of 6,200kg and a payload capacity of 50,000kg, it can handle heavy loads efficiently.
2. Durable Construction: The main beam is 500mm, constructed with submerged arc welding, ensuring a robust and durable structure.
3. Enhanced Safety: Equipped with a 90# exchangeable kingpin and a 30/30 type brake system on each axle, it offers reliable safety features.
4. Versatile Use: The mechanical suspension with 10 leaf springs provides stability and adaptability to various road conditions.
5. Practical Features: It includes a tool box with a stainless steel lock and a spare tire carrier, adding to its functionality.
6. Reliable Components: Uses JOST landing gear and FUWA 13Tx3 axles, known for their reliability and performance.
7. Efficient Design: The overall design, including the dimensions and the use of 315/80R22.5*8 tires, ensures efficient transportation of bulk cargo.
These features make the 3-axle semitrailer a reliable and efficient choice for bulk cargo transportation.
