MAXUS

Chassis vehicle configuration parameters

1.Engine: SC20M125.1Q6
2.Engine working mode: High-pressure common rail
3.Fuel type: Diesel
4.Displacement/Power（kw）: 1996/93
5.Emission standard: Euro 6
6.External dimensions: 5160,4950*1998*2480/2530
7.Number of steel plate springs: -/2
8.Tires: 215/75R16LT, 4
9.Track pitchfront/rear（mm）: 1734/1728
10.Wheelbase（mm）: 3100
11.Axle weight: 1760/2040
12.Gross weight（kg）: 3800
13.Lode/dead weight（kg）: 2560/2300
14.Rated passenger carrying capacity including driver: 5-7
15.Approaching/departure angle: 26/14
16.Front/rear suspension（mm）: 865/985, 865/1195
17.Maximum speed km/h: 150
18.Gearbox: 5 forward, 1reverse
19.Other one set: ABS, central control door lock, cab electric doors and windows, remote key, cab three seats, the back door is double-open at 180 degrees open
20.original cab factory heating and cooling system two set

Body coating

1.Paste blue or red reflective film and emergency signs around the vehicle body can be designed according to customer needs.
2.Black solar film on the left side of the medical cabin, semi transparent frosted film on the right and rear sides, standard medical appearance.

Alarm system

1.The front of the car roof is equipped with blue warning lights that have good light transmission and strong penetration ability optional
warning light style.
2.The 100W external amplifier is equipped with an alarm and a shouting function, which conforms to the national standard tone of Chinese
ambulances. Can be designed according to customer needs
3.Install 3 blue and white flashing lights on both sides of the vehicle body.
4.Install 2 blue flashing lights at the rear of the vehicle body

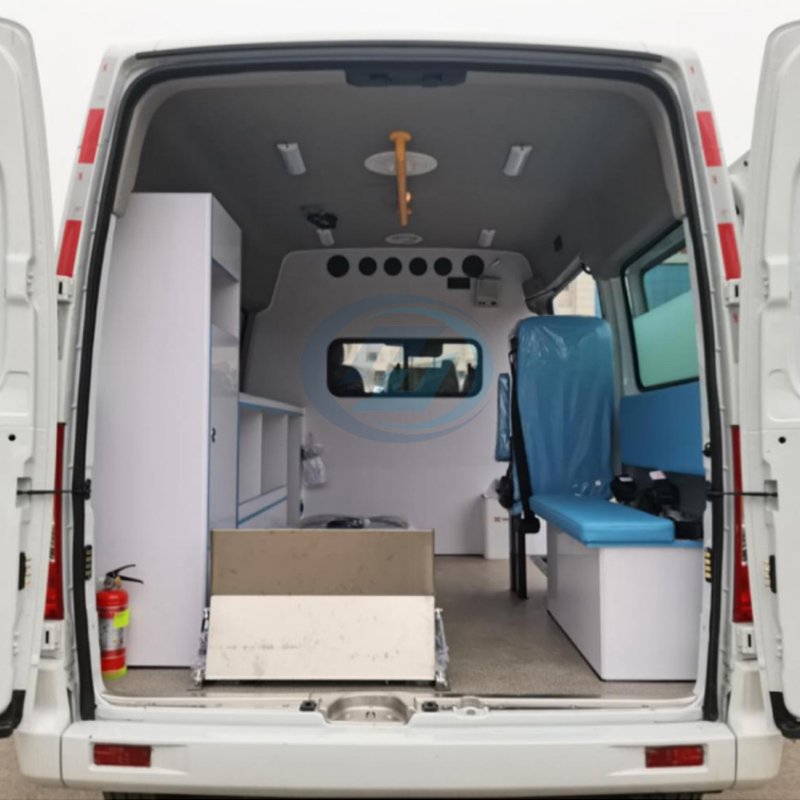

Inside the medical cabin

1.Install polymer material irregular partition walls between the driver's cab and medical cabin, separating the front and rear carriages.
2.Install transparent sliding windows on the middle partition wall for easy front and rear observation.
3.The floor of the medical cabin adopts medical specialized flooring, which has the characteristics of shock absorption, easy cleaning,acid and alkali resistance, fire resistance, anti slip, and anti-static.
4.All medical cabinets in the medical cabin are made of new environment-friendly biodegradable polymer materials, which are characterized by high strength, odor free, mold proof, bacteria proof, anti-static, moisture-proof, flame retardant, easy to clean, easy to disinfect,anti-aging, non-toxic, and strong safety.
5.Install an infusion stand on the top of the medical cabin.

Electrical system

1.The power distribution in the medical cabin adopts an ACC key ignition control device. When the key is turned on to the second gear, the entire power supply system in the medical cabin automatically connects to the battery power supply, and the entire equipment can work normally. When the key is turned back to the second gear. In the following or unplugged state, the entire cabin will automatically shut off (to prevent the loss of battery power caused by forgetting to turn off the electrical appliances and prevent the inability to start).
2.Integrated rocker switch control panel for medical cabin, AC circuit protection system.
3.Vehicle mounted intelligent 500W pure sine wave inverter power supply system, with 12V input and 220V output, providing 24-hour uninterrupted power supply.
4.Install 3 national standard 220V power ports and 1 national standard 12V power socket in the medical cabin.
5.Four LED lighting fixtures are installed in the medical cabin to fully meet the work needs of medical staff.
6.One disinfection lamp in the medical cabin.
7.Front and rear intercom system, effective communication between driver's cabin and medical cabin.

Oxygen system

1.Install 2 10 liter medical oxygen cylinders and dedicated shock absorber slots inside the medical cabin oxygen cabinet.
2.Hidden oxygen pipeline system with 2 national standard oxygen ports.
3.Two oxygen pressure reducing valves.
4.1 humidification bottle.

Seat

1.Install one forward independent seat with a safety belt on the right side of the medical cabin.
2.Install a 2-person long horizontal soft pack seat belt safety belt on the right side of the medical cabin.

Air condition system

1.The medical cabin is equipped with independent air conditioning and heating devices, which are controlled by independent control switches.

Emergency assistance

1.Automatic loading stretcher, equipped with stretcher pads and guides.
2.Dry powder fire extinguisher and fixed bracket.
3.Foot operated medical stainless steel sewage bucket.
