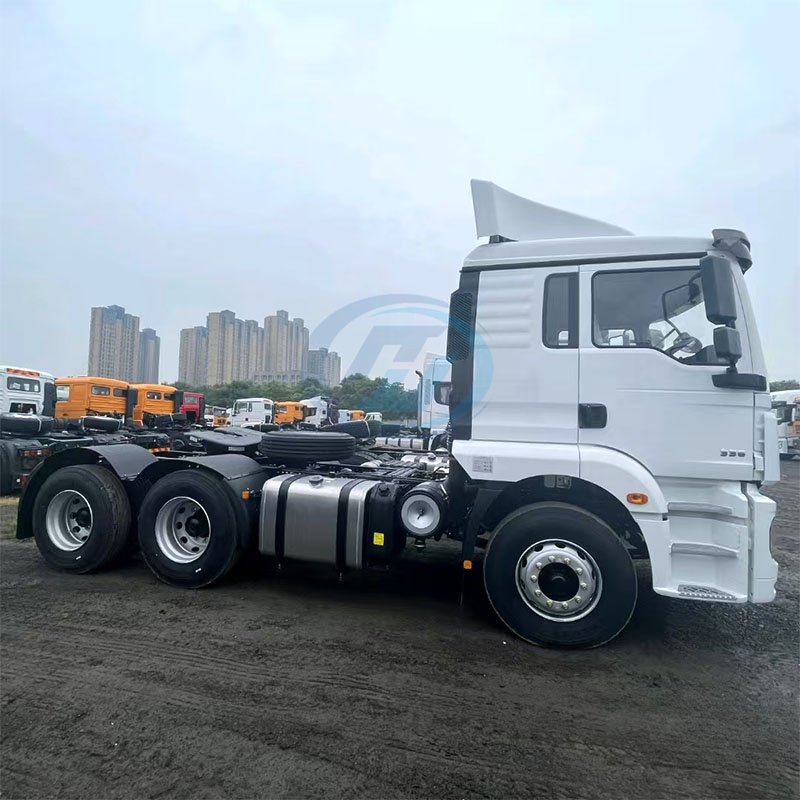

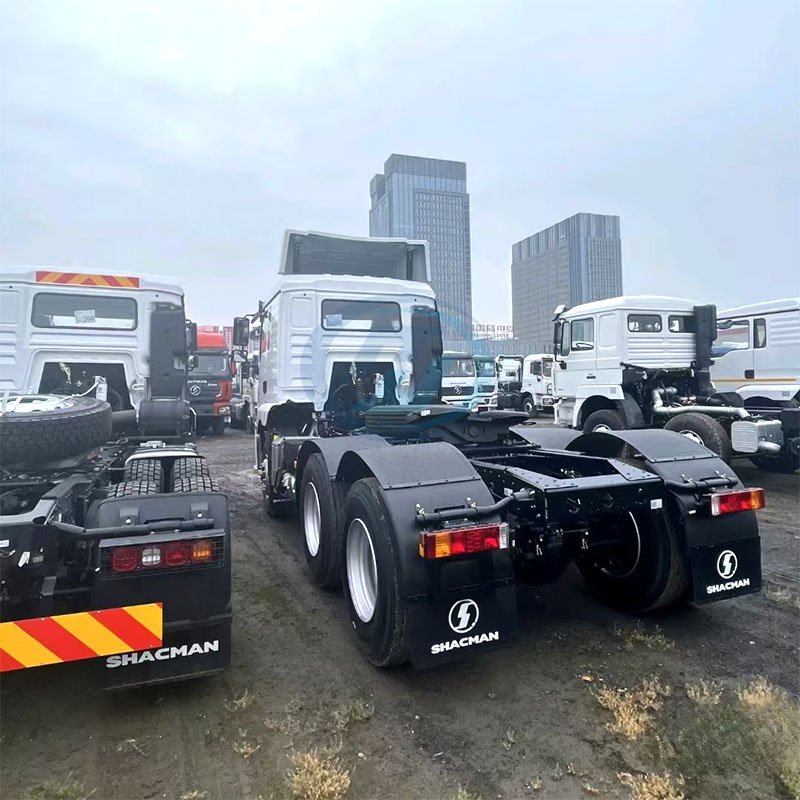

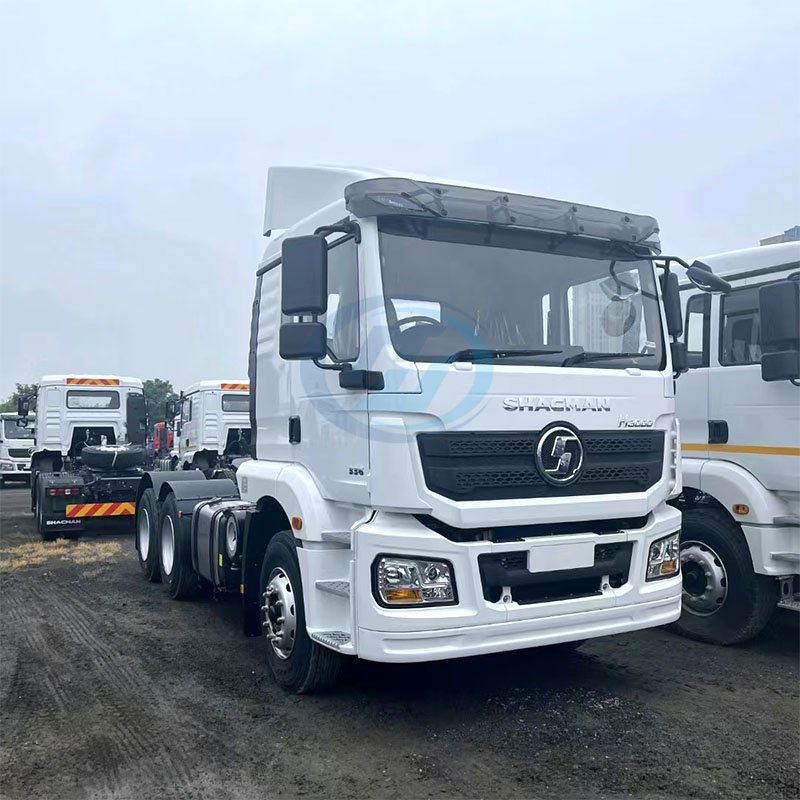

SHACMAN H3000 6x4 tractor truck pulling capacity of up to 60-120 tons; In the transportation industry, it is often used to drag various trucks and containers, especially in road transportation, the tractor is used as a trailer to make truck transportation more convenient and fast, in addition, it is also used in agriculture, rescue and other aspects; Because of its strong structure, high load capacity and low fuel consumption, it is widely used in Africa, Central Asia, Southeast Asia, South America and other regions.
Specification
SHACMAN H3000 6x4 TRACTOR TRUCK | |
Model | SX4255JV324 |
Cabin | H3000 cab, long cabin, single sleeper, with air conditioner |
Engine | WP12.400E201, 400HP, Euro II Emission standard Option:WP10.380E22(380HP), WP10.340E22(340HP) |
Transmission | Fast 12jsd200t, manual, 12 F & 2 R |
Front axle | 7500kg loading capacity |
Rear axle | 2*16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 12.00R20, 11 pcs (including one spare tire) option: 12R22.5, 315/80R22.5 |
Fuel tank | 400L |
The fifth wheel | 90#/50# |
Overall dimension | 6900*2550*3300 mm |
Color | Color: Basic color for free (white, red, blue, orange, gray), Special colors are extra |
Product Features
1. All tractor trucks are equipped with high-strength leaf spring suspension and reinforced chassis.
2. A variety of configurations: optional cab seat (mechanical/air bag), cab top installation alarm light (single/double), fender (split/integral), the fifth wheel (90#/50#), deflector cover (can reduce wind resistance); Intercooler protection, reverse buzzer, road plate intake system, metal bumper.
3. Classic engine: 340-430 HP; In line with Euro 2, Euro 3, Euro 4, Euro 5, Euro 6 emission standards;
4: Transmission: Manual operation (MT), 10/12 positive 2 reverse, optional synchronizer.
5. For some markets with very high weather temperatures, you can choose a drip system to cool the brake drum.
6. Front/Rear axle: suitable for a variety of complex and mixed road conditions.
7. Right drive, left drive, colors are optional.
8. Tires: can be equipped with multiple types of tires. It mainly uses the famous Chinese tire brand TRIANGE.
