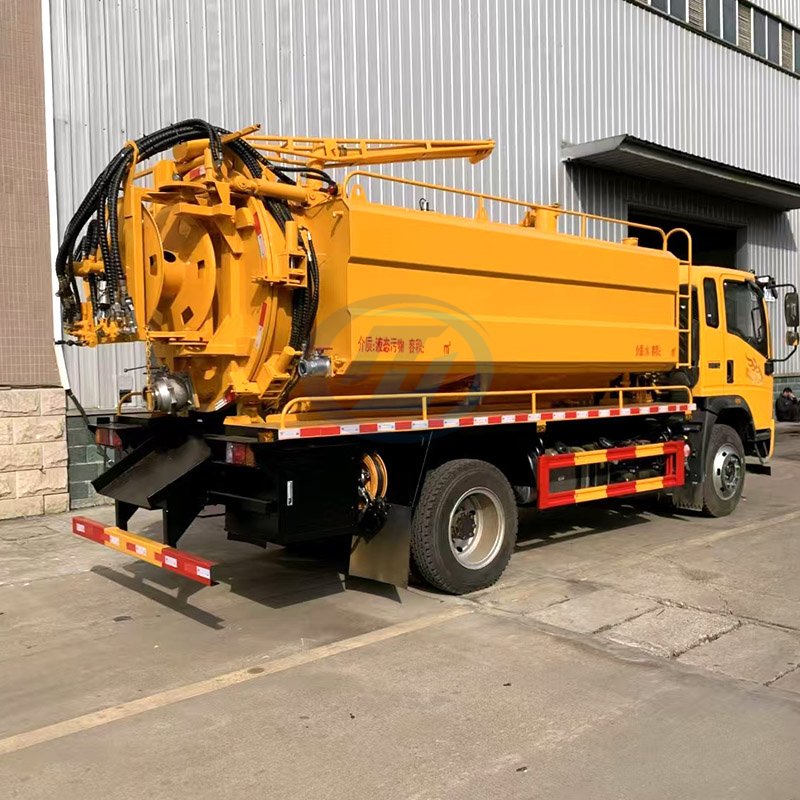

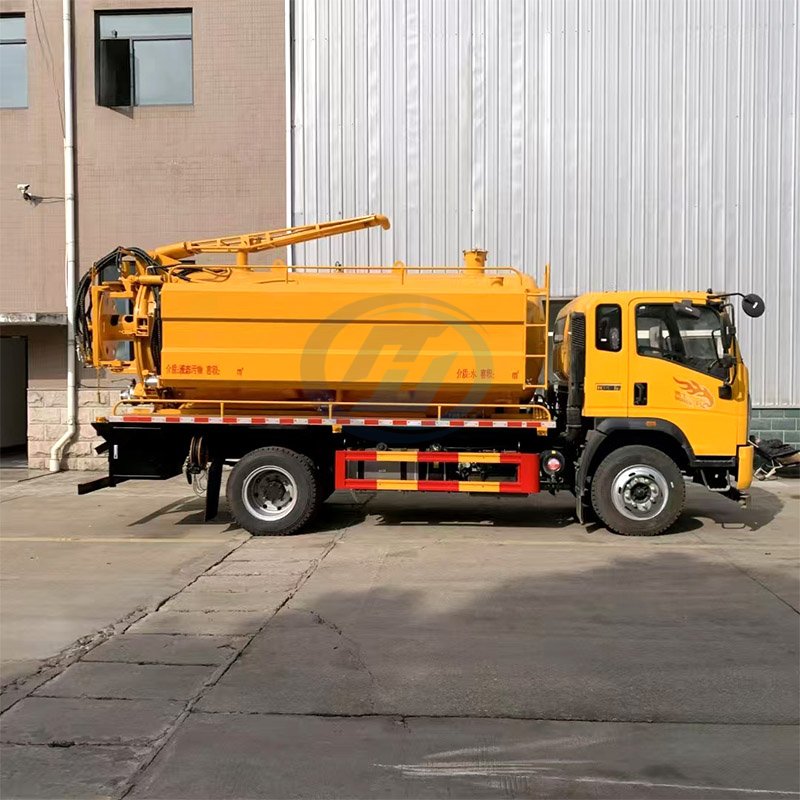

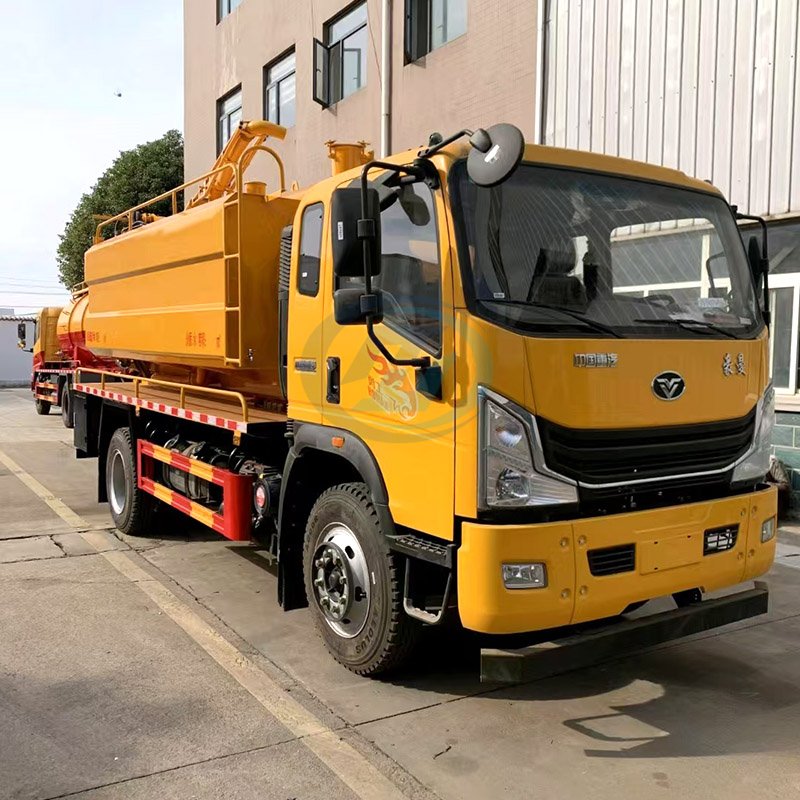

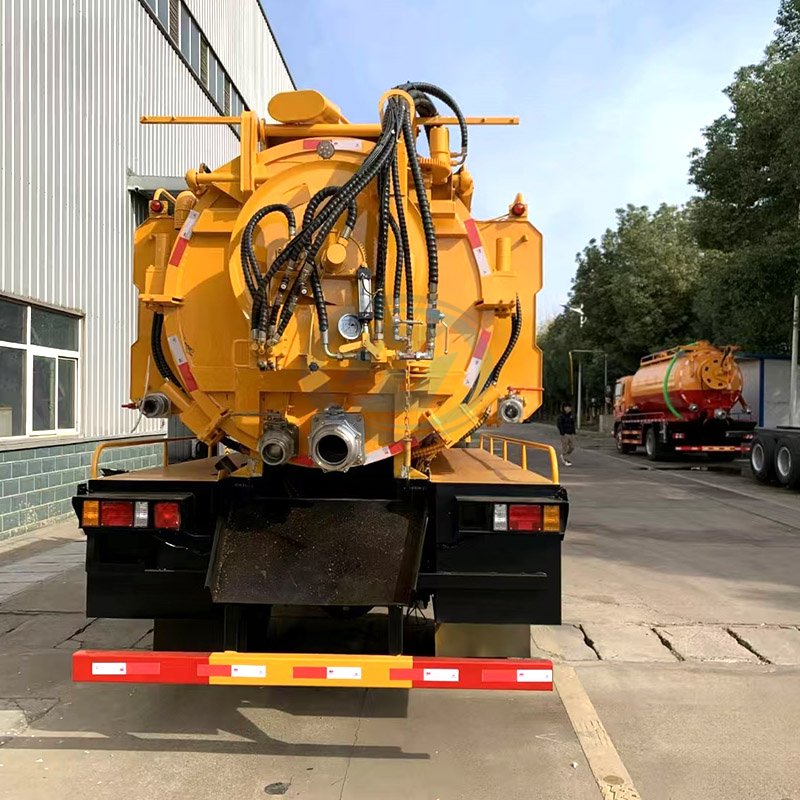

SINOTRUK HOMAN 4X2 light high pressure cleaning trucks are widely used in urban road cleaning, pipeline dredging, sanitation facility cleaning, building facade cleaning, and some other special scenarios. Due to its sturdy structure, high load-bearing capacity, and low fuel consumption, it is widely used in Central and South Asia, Africa, Southeast Asia, and South America. The volume of the body is 5CBM-10CBM. Has strong cleaning ability and wide applicability, and we can customize the size and steel plate thickness of the body according to your requirements.
Specification
SINOTRUK HOMAN LIGHT HIGH PRESSURE CLEANING TRUCK | |
Model | ZZ1048D2814C145 |
Cabin | 1880mm, 2 seats, with air conditioner |
Engine | YC4FA115-33, 115HP, Euro III Emission standard Option:ISF4.5E3185,(185HP), ISF3.8s4R168(168HP), YC4D130-33(130HP), YC4E160-33(160HP) |
Transmission | WLY6T50C, manual, 6 F & 1 R, with PTO |
Front axle | 2000kg loading capacity |
Rear axle | 3500kg loading capacity |
Steering | SINOTRUK brand |
Tire | 7.50R16, 7 pcs (including one spare tire) Option: 8.25R16, 8.25R20, 7.00R16 |
Fuel tank | 120L |
Cargo box | High pressure water pump waterway system, hydraulic pipe discharge device, wash pipe support device |
Overall dimension | 5800*2350*2500mm |
Color | White |
Product Features
1. Wide cleaning range: The high-pressure cleaning gun is equipped with a sufficiently long high-pressure cleaning reel, which can clean curbstones, guardrails, billboards, etc. Some models can also replace the nozzle to meet the cleaning needs in different scenarios.
2. The sealing design of the carriage is excellent, and the edges of the car doors and the gaps in the carriage have been specially treated to reduce the possibility of heat exchange through the gaps, ensuring the accuracy and stability of the temperature inside the carriage.
3. Engine Performance: Usually equipped with efficient engines that provide adequate power while still prioritizing fuel economy. Compliance with emissions standards depending on the market (Euro II III IV/V options available).
4. Superior load-bearing capacity: Adopting straight through double-layer beams, larger tonnage axles, and high-density tires, it can ensure the stability and safety of the vehicle under full load conditions.
5. Fully functional: It can clean, rinse, and absorb dust. It is a multi-functional specialized vehicle, and can also be equipped with snow shovels and fog cannons according to customer needs to meet diverse needs.
6. Gearbox/Transmission: WLY brand, derived from Fuller gearbox, manual operation (MT), 5/6 forwards and 1 reverses.
7. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
8. Multiple engine brands and horsepower options are available, including YUNNEI, YUCHAI and CUMMINS engines with 116 HP, 115 HP, 130 HP, 140 HP, 160 HP, and more.
9. Tyres: Vacuum tires and radial tires are available for selection. China famous tyre brand, is mostly used.
