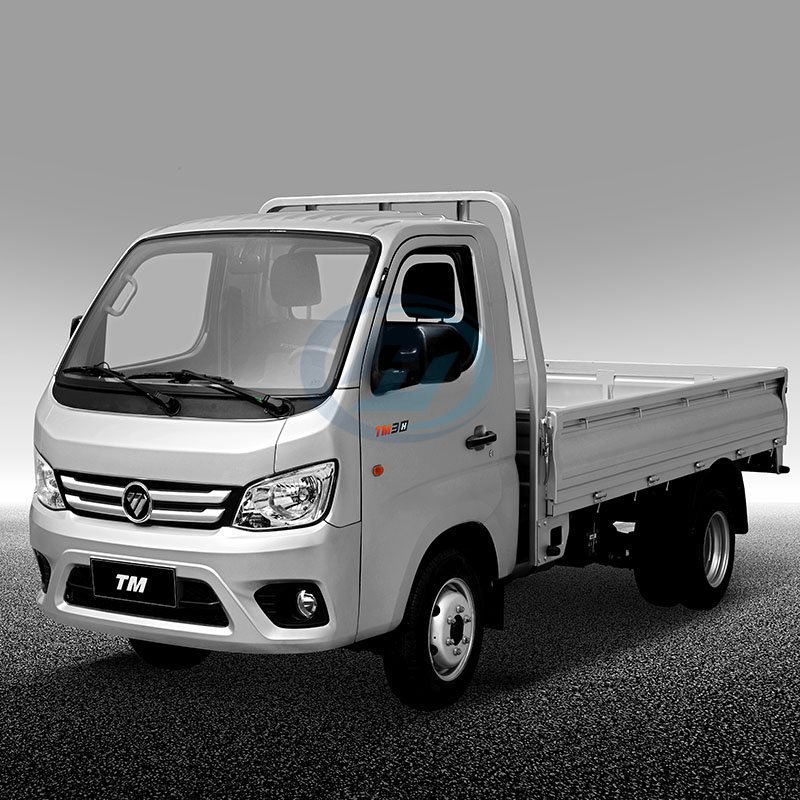

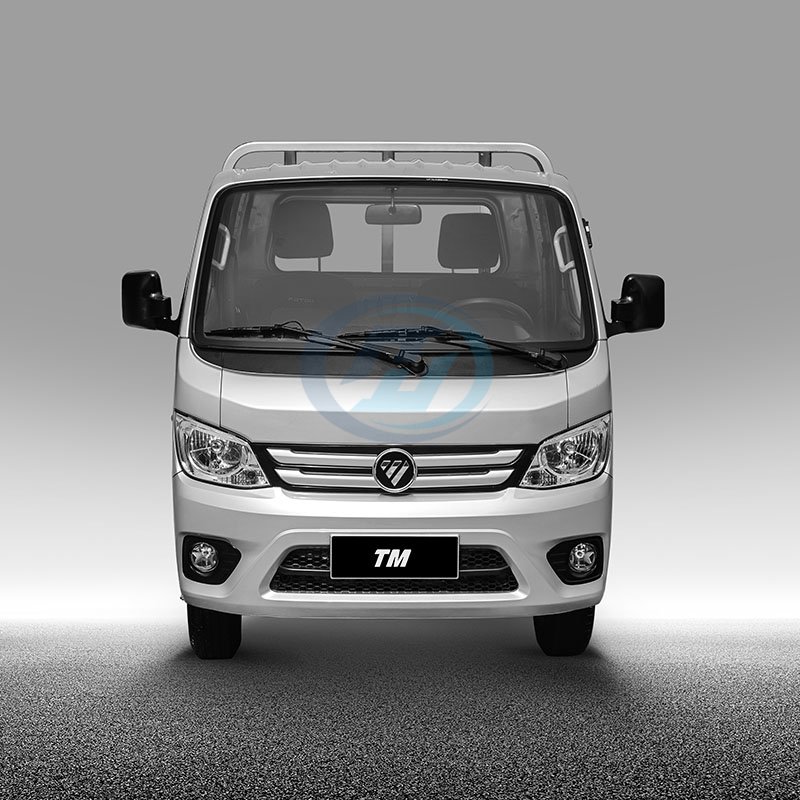

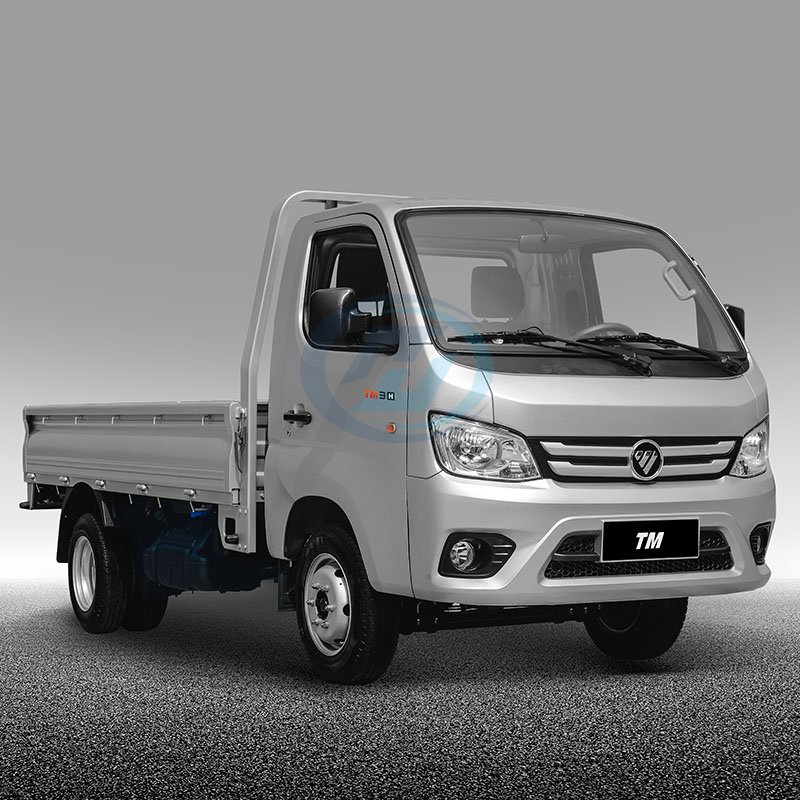

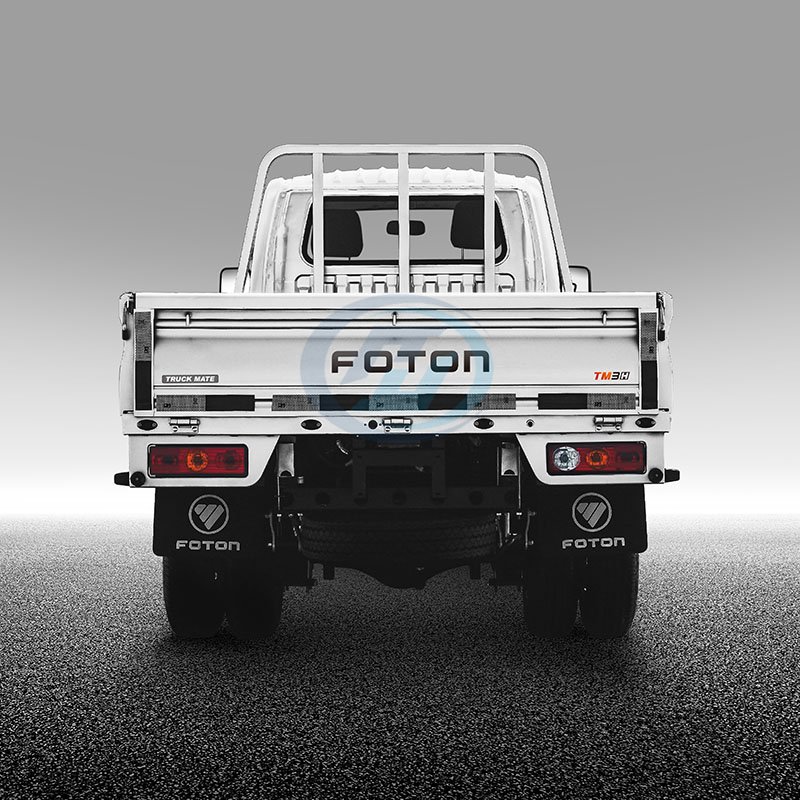

FOTON TM2 mini cargo truck

Cargo Truck

Product Details

FOTON Aumark trucks are widely used in urban distribution, long-distance transportation, agricultural product transportation, cold chain logistics, and dangerous goods transportation due to their high load capacity, excellent durability, and fuel economy. It has high reliability and strong stability, and can adapt to various complex road conditions and transportation needs, it is widely used in Africa, Southeast Asia, and South America. The cargo box volume covers 3CBM-6CBM. The maximum load-bearing capacity can reach 10 tons, and we can customize dimension and steel plate thickness of the cargo box according to your requirements.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification

Vehicle model FOTON TM2 Mini Cargo Truck
Cabin		Single row/W1880/left rudder
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	596519602225
Whole vehicle main dimensions	Wheel base(mm)	3360
Weight data	Curb weight(kg)	2300
	Gross vehicle weight(kg)	7500
	Persons in cab	3
Whole vehicle main performance	Max. speed(km/h)	100
ENGINE	Model	BJ493ZLQV1
	Emissions standards	Euro3
	Displacement(L)	2.771
	Rated Power(kw/rpm)	80
	Max torque(N.m/rpm)	280
Gearbox	Model	5S368
Front axle	Type/Mainreducetion ratio	2.4T
Rear axle	Type/Mainreducetion ratio	4.5T/5.714
Suspension	Front suspension/Leaf spring number	3
Suspension	Rear suspension/Leaf spring number	8+6
Brake system	Service brake	Drum pneumatic braking
	Parking brake	Brake gas brake
	Auxiliary brake	Engine exhaust brake
Wheels and tyre size		6+1/( 7.00R16)
voltage		24V
Cargo box	41002000600mm, floor 3mm side plate 1.5mm

Product Features

1. All cargo trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: 116hp,130hp,160hp and 168hp for option ; with Euro ll, Ill, IV, V, VI emision standard;

4:Gearbox/Transmission:manual operation (MT), 5 forwards and 1 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel.
