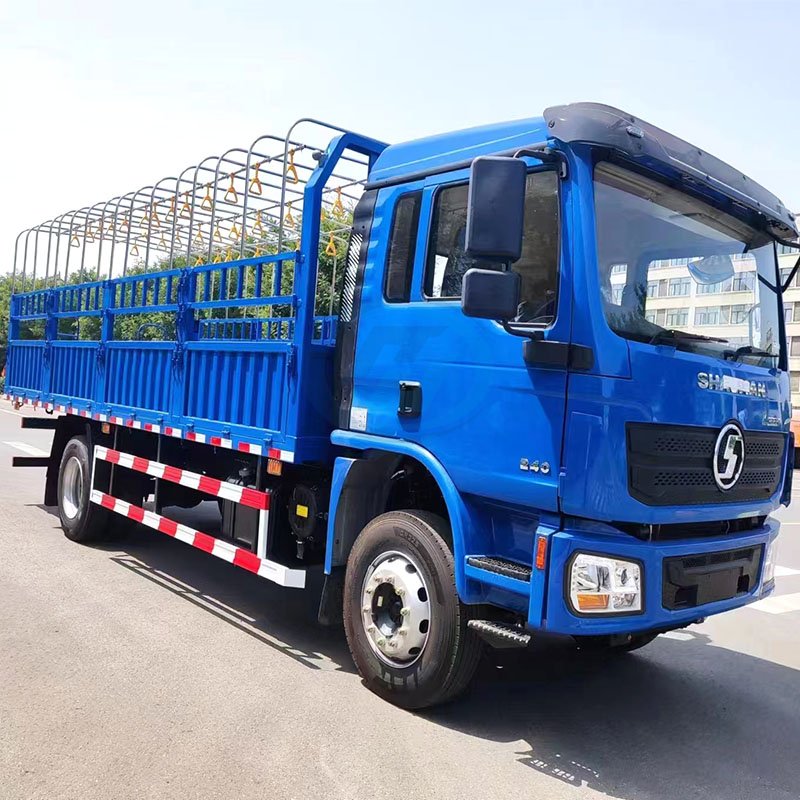

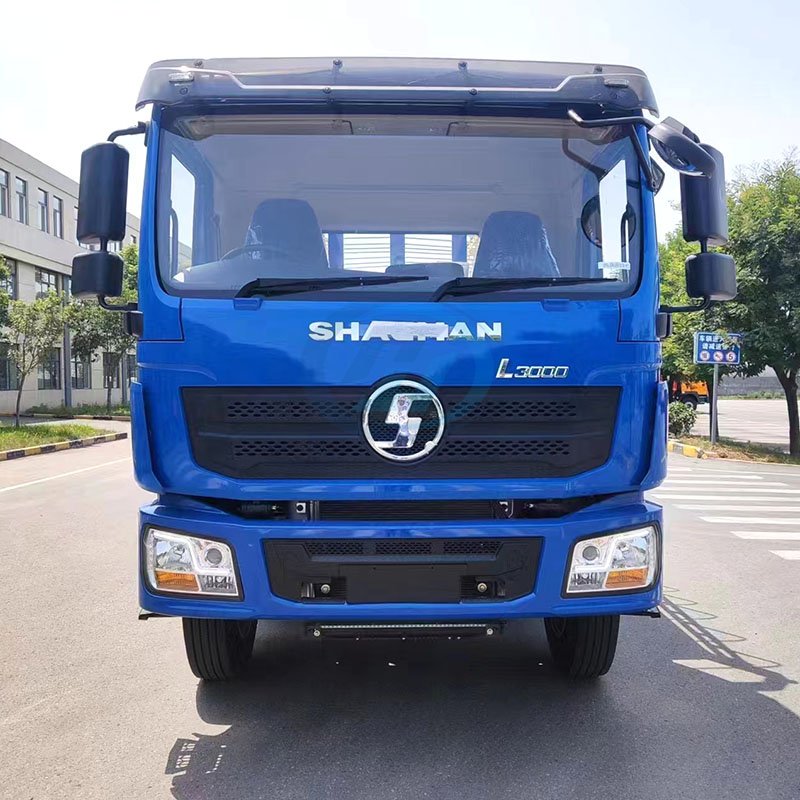

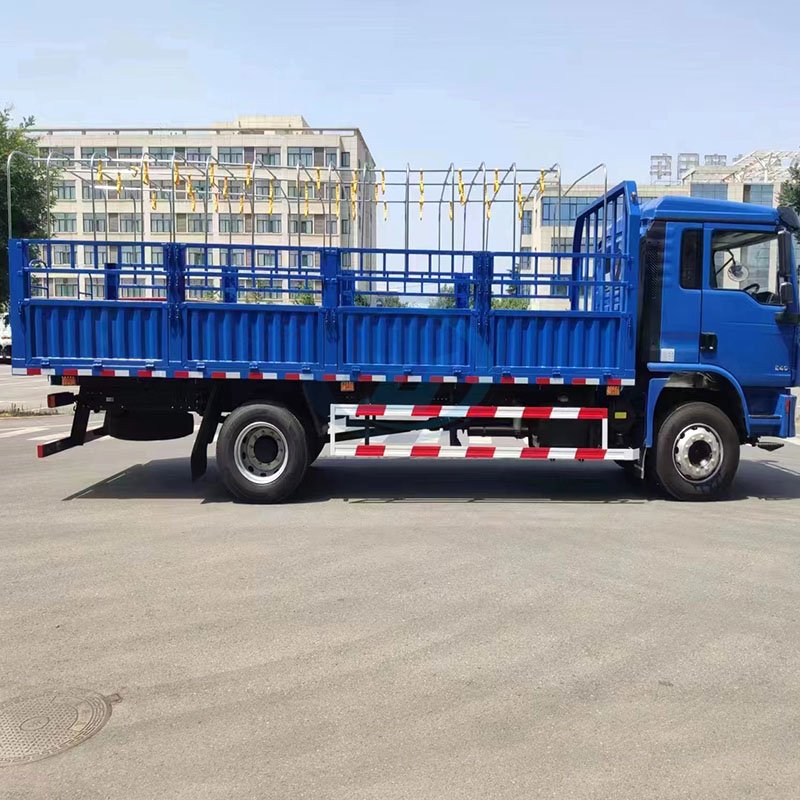

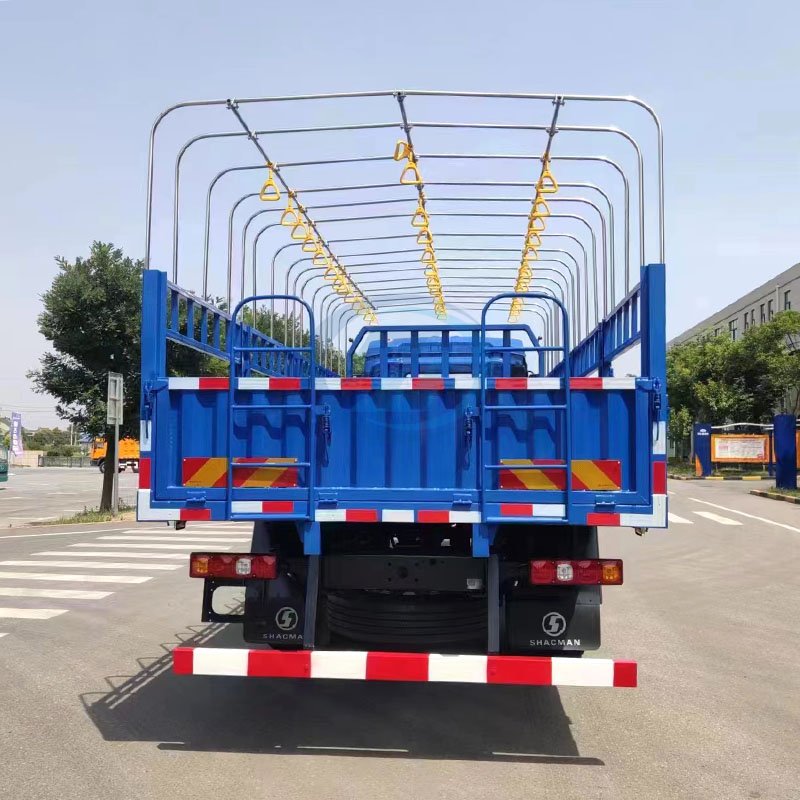

SHACMAN L3000 Fence Cargo Truck

Cargo Truck

Product Details

SHACMAN L3000 6×4 cargo trucks are widely used in urban distribution, long-distance transportation, agricultural product transportation, cold chain logistics, and dangerous goods transportation due to their high load capacity, excellent durability, and fuel economy. It has high reliability and strong stability, and can adapt to various complex road conditions and transportation needs, it is widely used in Africa, Southeast Asia, and South America. The cargo box volume covers 10CBM-20CBM. The maximum load-bearing capacity can reach 25 tons, and we can customize dimension and steel plate thickness of the cargo box according to your requirements.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification

SHACMAN L3000 6X4 FENCE Cargo TRUCK
Model	SX3235DU406
Cabin	F3000 long flat roof cab without top guide cover, hydraulic main seat, four hydraulic suspension, single refrigeration air conditioning, hand shake window machine, manual flip, steel bumper, three car pedal, oil bath air filter, ordinary exhaust, oil casing, rear bottom stabilizer bar, strengthen the rear light protection gate
Engine	WP12.400E201, 400HP, Euro II Emission standard Option：WP10.380E22(380HP), WP10.340E22(340HP)
Transmission	10JSD180+QH50
Front axle	9500kg loading capacity
Rear axle	2*16000kg loading capacity
Steering	Bosch brand, with Hydraulic assistance
Tire	315/80R22.5, 7 pcs (including one spare tire) Option:12.00R20,12.00R24,13.00R22.5
Fuel tank	300L
Cargo box	75002300800+1200mm, floor 4mm side plate 3mm
Overall dimension	955025503200 mm
Color	White, Red, Blue ,Yellow, Gray

Product Features

1. All cargo trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: 340hp,371hp,380hp and 400hp for option ; with Euro ll, Ill, IV, V, VI emision standard;

4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, HARDOX, manganese steel.

9. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
