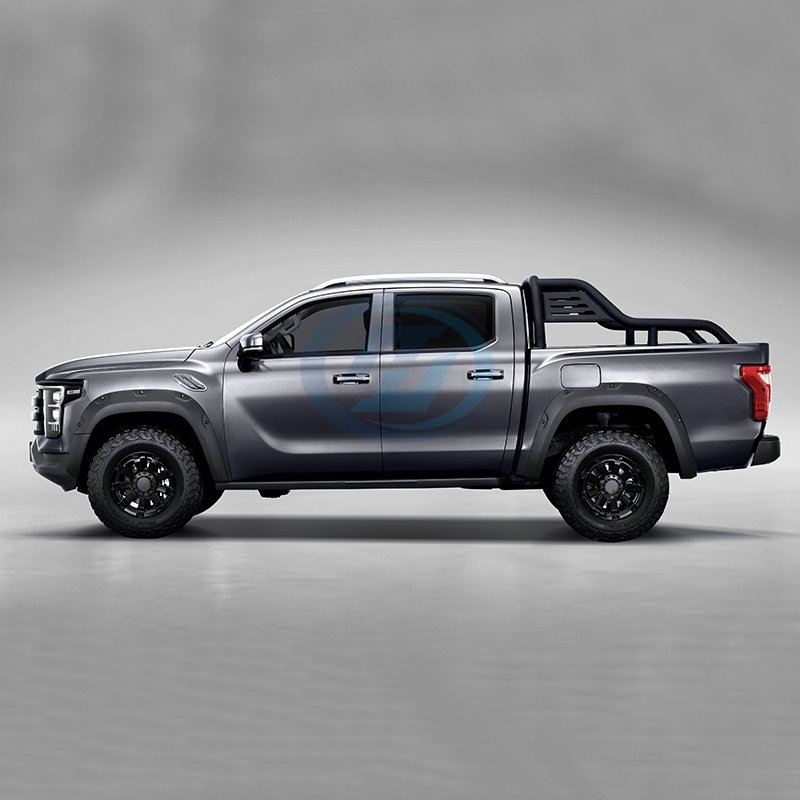

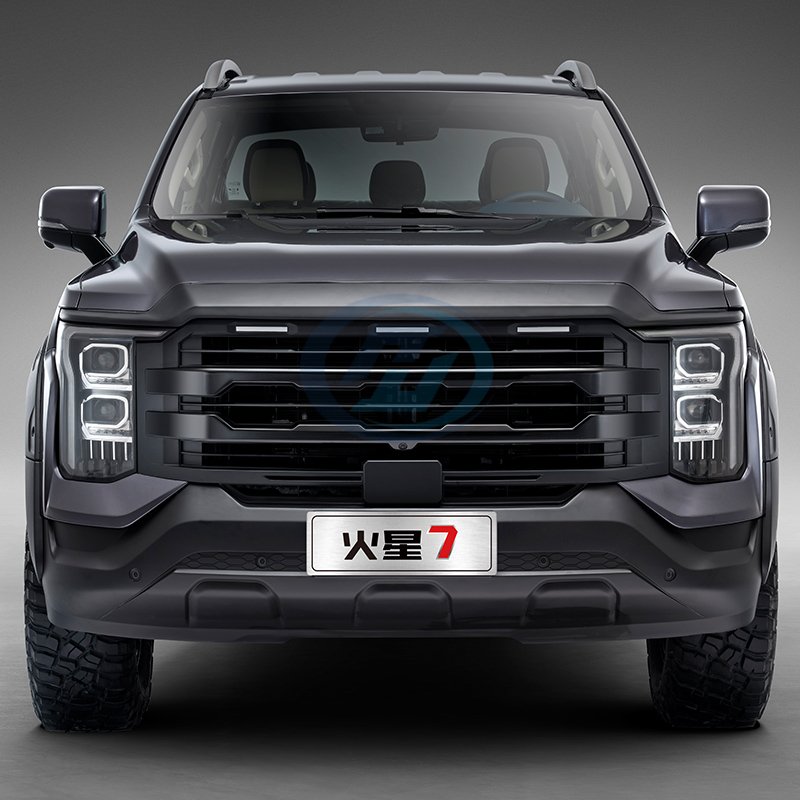

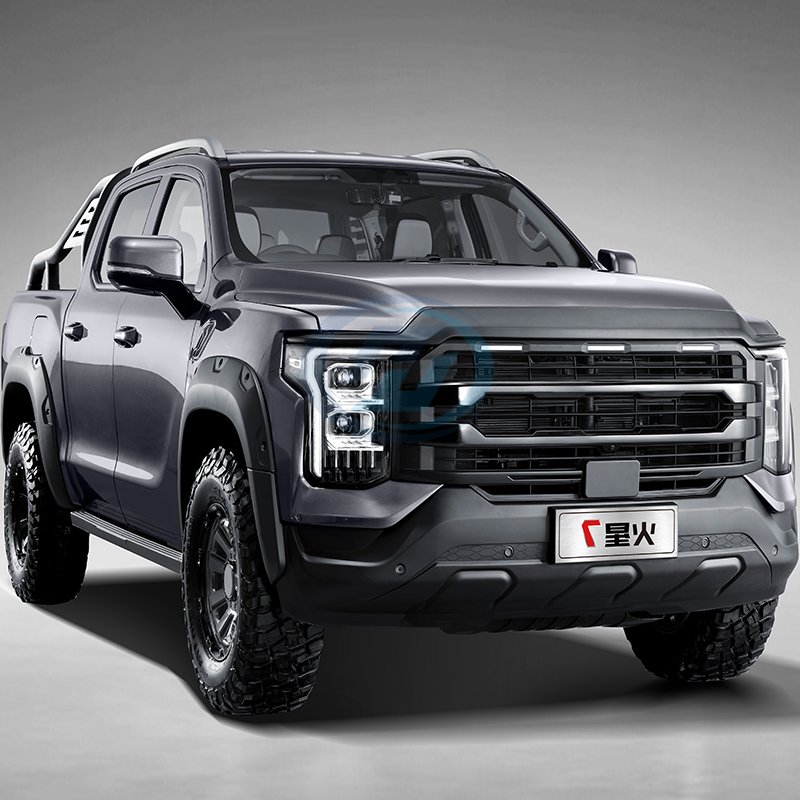

The Foton Tunland V7 pickup truck, built on a P4 platform, offers a robust 4x4 drive system and a spacious cabin that seats five, making it versatile for both work and leisure. Its hybrid 4F20TC17-48V engine complies with Euro VI emission standards for a cleaner performance, while delivering ample power and torque. The vehicle's large cargo area and comfortable suspension system ensure practicality and ride quality. Enhanced safety features such as ESP/ESC and hydraulic disc brakes, along with a sturdy build, make the Tunland V7 a reliable choice for tough conditions.
Specification
BUA | Foton Tunland V7 |
BUB | P4 platform |
BUC | V7 |
BUD | 4F20TC17-48V |
BUE vehicle number | 6MT |
Announcement Number | G4F0204P004E001 |
Drive form | BJ1037V2MAV-6E |
wheelbase | 4×4 |
Whole vehicle (chassis) | three thousand three hundred and fifty-five |
External dimensions | 5617×2000×1910 |
Dimensions inside the cargo compartment | 1577/1650/530 |
GVW(kg) | three thousand and two hundred |
GCW | / |
Vehicle width | two thousand |
Top height | / |
Left and right rudder | Left rudder |
Cabin status | Double row |
Seating capacity (number of passengers) | five |
Power type | Diesel fuel |
engine | 4F20TC17-48V |
Displacement ml | one thousand nine hundred and sixty-eight |
Emissions | Euro VI |
Emission route“ | / |
Power/speed (kw/rpm)“ | one hundred and twenty |
Engine torque (Nm/rpm) | four hundred and fifty |
Transmission model | ZM6T82 |
Front axle load capacity (kg) | / |
Middle/rear axle load capacity (kg) | / |
Drive axle speed ratio | three point nine one |
Braking type | Hydraulic brake |
Braking form | Front and rear disc |
Brake control system | ESP/ESC |
Tire model | 265/70R18 |
Number of tires | 4+1 |
Fuel tank capacity (L) | seventy-six |
Suspension form | Double wishbone structure independent suspension/steel plate spring non independent suspension |
Number of leaf springs | five |
Frame section | / |
Basic configuration | / |
Front grille | Black high gloss paint grille |
Rear bumper | P4 rear bumper |
Interior design | Black brown interior |
Driver's seat | Electric 8-way with heating |
Passenger seat | Manual 6-way with heating |
Steering wheel | Imitation leather multifunctional bus steering wheel |
air conditioner | Integrated cooling and heating, electric air conditioning |
Cargo box treasure | Spray painted cargo box treasure |
Multimedia equipment | 14.6-inch screen MP5 |
Product Features
1. Advanced Platform: Built on the P4 platform, indicating a modern and possibly more advanced design.
2. Hybrid Capability: The 4F20TC17-48V engine suggests a hybrid system, potentially offering better fuel efficiency and reduced emissions.
3. 4x4 Drive System: Equipped with a 4×4 drive form for enhanced off-road performance and versatility.
4. Spacious Dimensions: With external dimensions of 5617×2000×1910 mm, it offers a large cargo space and a comfortable cabin.
5. Generous Cargo Area: The cargo compartment dimensions of 1577/1650/530 mm provide ample space for various loads.
6. Higher Seating Capacity: It can seat up to five passengers, making it suitable for both work and family use.
7. Improved Emissions: It meets Euro VI emission standards, indicating a cleaner and more environmentally friendly vehicle.
8. Powerful Performance: The engine delivers 120 kW of power and 450 Nm of torque, ensuring strong performance for heavy-duty tasks.
9. Smooth Transmission: The 2M6T82 transmission model likely offers smooth gear shifts and reliable performance.
10. Safety Features: Equipped with ESP/ESC and hydraulic disc brakes for both the front and rear, enhancing safety and control.
11. Comfortable Ride: The double wishbone independent front suspension and steel plate spring rear suspension provide a comfortable ride.
12. Sturdy Build: The GVW of 3200 kg suggests a robust construction capable of handling tough conditions.
13. Practical Design: Features like the black high gloss paint grille and P4 rear bumper add to its practical and stylish appearance.
These features make the Foton Tunland V7 a capable and versatile vehicle suitable for a variety of uses, from work-related tasks to recreational activities.
