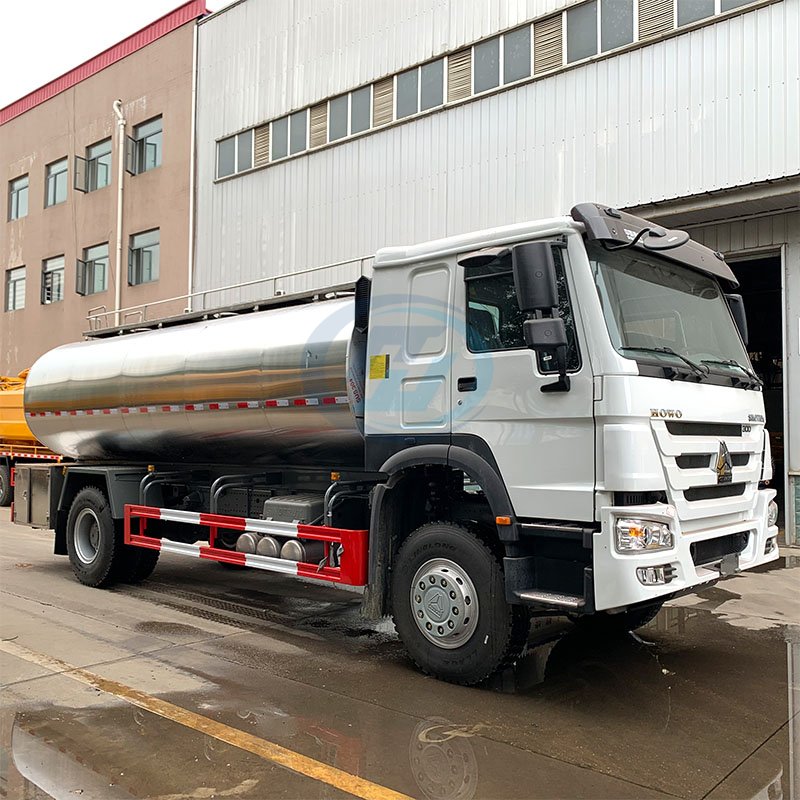

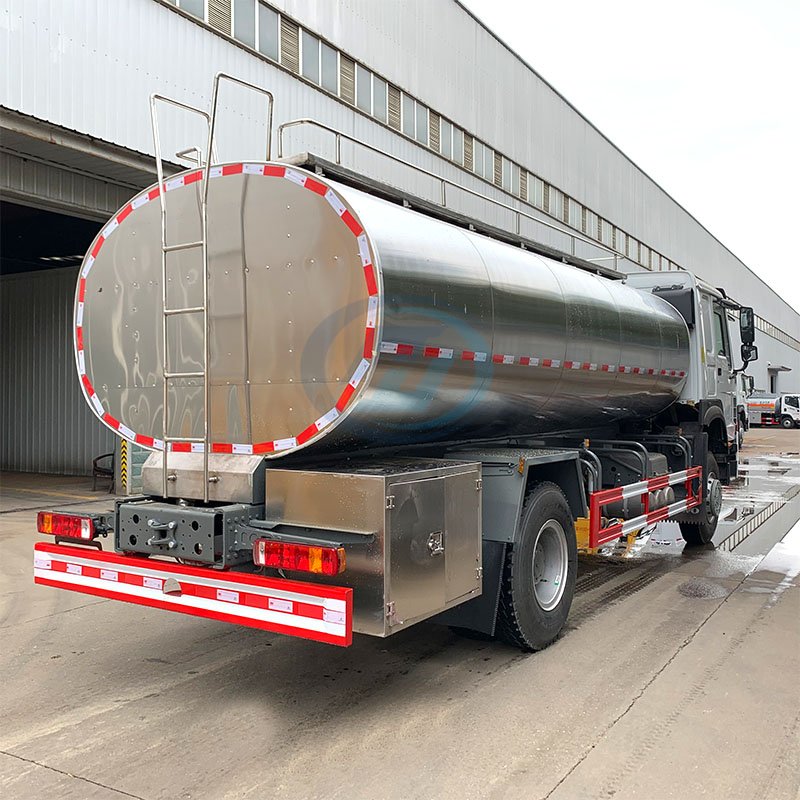

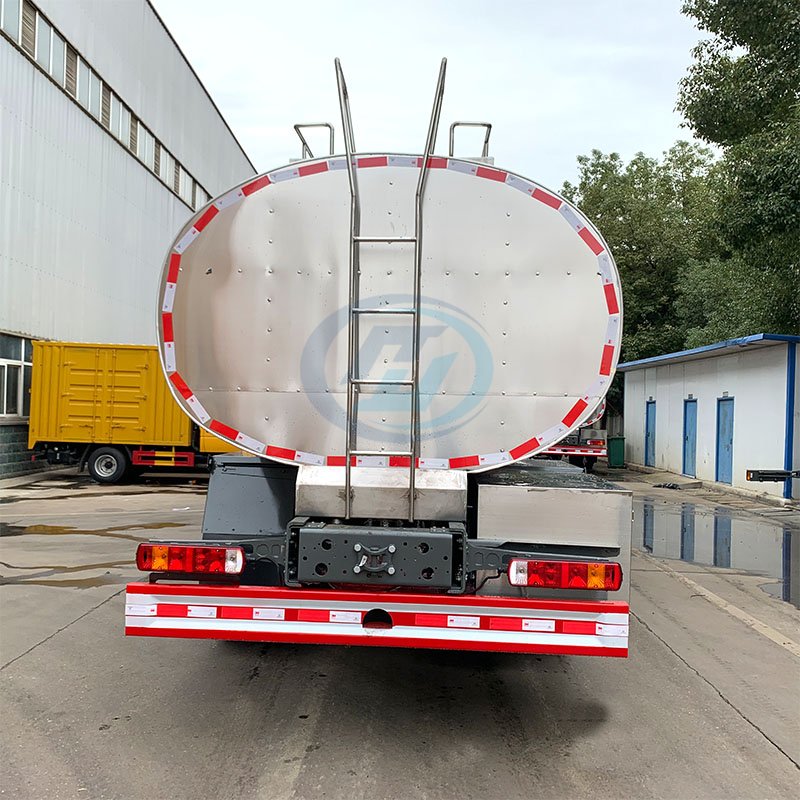

SINOTRUK HOWO-7 4X2 fresh milk transportation truck is a specialized vehicle designed to transport fresh milk from dairy farms to processing plants. Equipped with food-grade stainless steel tank, a thermal insulation layer, advanced cleaning systems. The tank volume range from 10,000 to 15,000 liters. Tank volume and compartment number can be customized according to different requirements. It is an essential part of the dairy supply chain and widely used in Africa, Southeast Asia, South America, and Middle East.
Specification
SINOTRUK HOWO-7 4X2 Fresh Milk Transportation Truck | |
Model | ZZ1167N5017B1 |
Cabin | HW76, long cabin, single sleeper, with air conditioner |
Engine | WP10.300E22, 300HP, Euro II Emission standard Option: WP10.340E22(340HP) |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 7100kg loading capacity |
Rear axle | 16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 295/80R22.5, 7 pcs (including one spare tire) Option:12.00R20, 12R22.5, 315/80R22.5 |
Fuel tank | 400L |
Milk Tank | 1000L-15000L Compartment: customized |
Overall dimension | 9100*2550*3550 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. All fresh milk transportation trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
3. Classic engine: 300hp, 340hp for option; with Euro ll, Ill, IV, V, VI emission standard;
4: Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.
5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
7. Right Hand Drive, Left Hand Drive, Colors are optional.
8. Advanced cleaning systems: CIP (Clean-In-Place), to ensure the highest hygiene standards..
9. Milk tank: Customized according to different purposes, like tank volume, tank shape, compartment number, etc.
10. Tyres: Tube or tubeless is optional. Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
