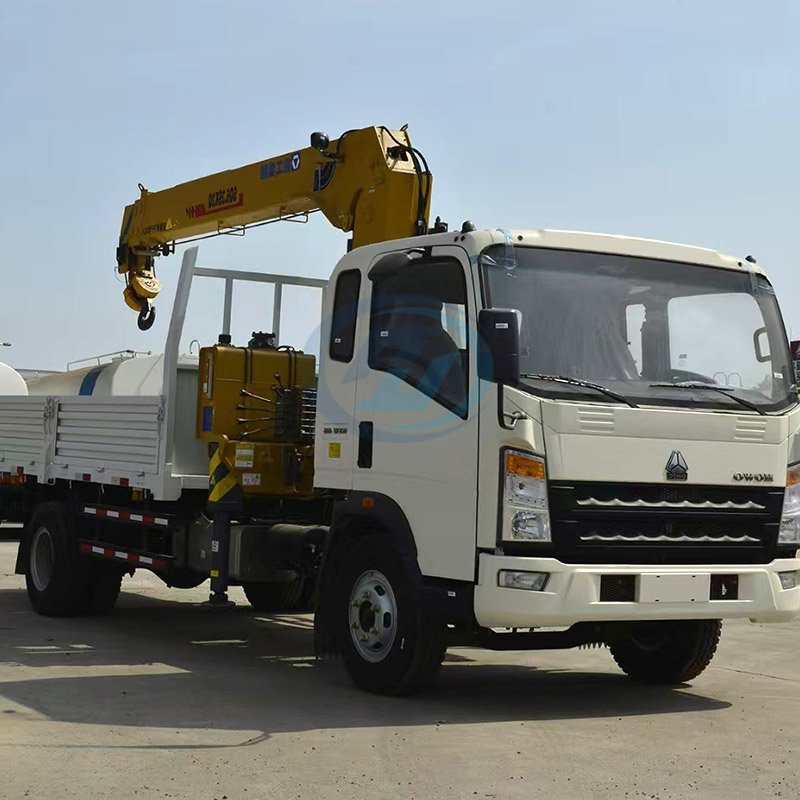

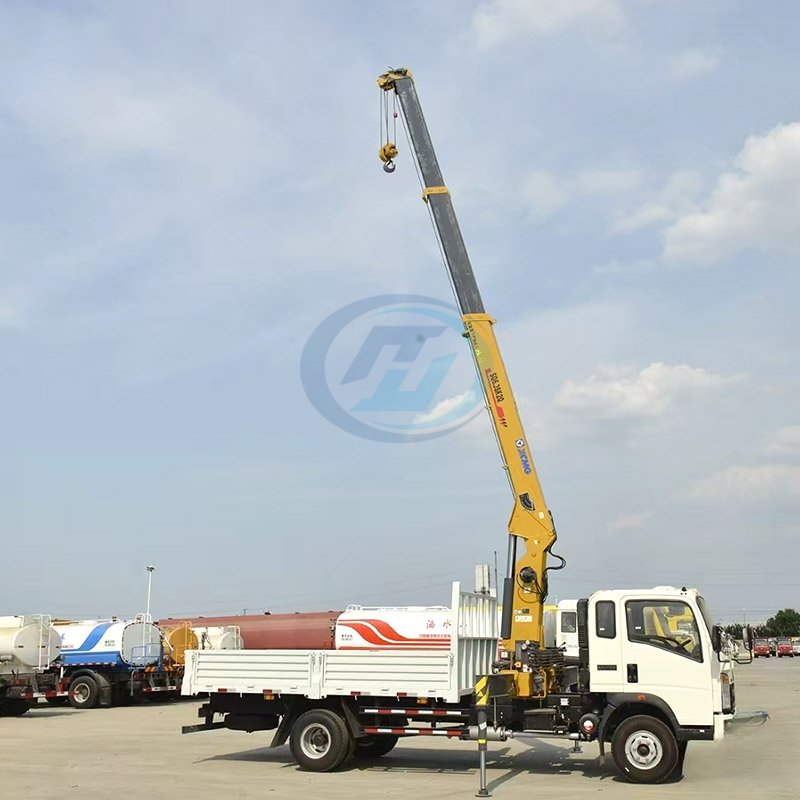

SINOTRUK HOWO 4X2 trucks with crane are equipped with advanced baffling systems to minimize sloshing and maintain stability during transit, enhancing both safety and fuel efficiency. The crane is typically equipped with a telescopic or articulating boom. Adopting a reinforced synchronous telescopic mechanism, which allows it to extend and reach high or distant objects. The boom can be fitted with various attachments, such as hooks, grabs, or winches, to handle different types of loads.
Specification
SINOTRUK HOWO 4X2 LIGHT TRUCK WITH CRANE | |
Model | ZZ1127G4515C1 |
Cabin | 2080mm, single sleeper, with air conditioner |
Engine | YC4E160-33, 160HP, Euro II Emission standard Option: YC4E140-33(160HP),YN4102QBZL(116HP) |
Transmission | HW90510C2, manual, 10 F & 2 R, with PTO |
Front axle | 3200kg loading capacity |
Rear axle | 8000kg loading capacity |
Steering | Left Hand Drive, with Hydraulic assistance |
Tire | 8.25R20, 7 pcs (including one spare tire) Option: 7.00R16, 7.50R16, 8.25R16, 9.00R20 |
Fuel tank | 220L |
Cargo Body | 4750*2300*550mm |
Crane Parameters | Lifting capacity: 6.3T, 3 telescope booms, Rotation angle: 360°, Maximum lifting height: 12.2m Option: 2Ton, 3.2Ton, 5Ton |
Overall dimension | 8000*2400*3600 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. All crane trucks are equipped with high tensile steel leaf springs suspension.
2. 2. Plenty of options are available, including wind deflector, leather seats, side guardrail crossbeam, central locking and electric doors and windows .
3. Classic engine: 116hp, 140hp, 160hp for option; with Euro ll, Ill, IV, V, VI emission standard;
4: Gearbox/Transmission: Sinotruk self-develop HW brand or Chinese famous brand-WLY. PTO is available.
5. Primary functions: heavy lift capability and object transportation.
6. Cargo body: Customized according to different purposes, like materia, length, plate thickness.
7. Crane parameters: Equip cranes with different lifting capabilities according to different needs, 2 ton-6.3ton is available.
8.Tyres: Tube or tubeless is optional. Many patterns for option, like rib-lug pattern,block pattern and highway tread.
9. Color: red, yellow, white is normal color, many other colors for optional.
10. Mobility and Versatility: Truck with cranes can quickly move from one location to another, enabling swift response times for emergency services, construction projects, and maintenance tasks.These trucks can be deployed in urban, rural, or remote areas, adapting to diverse terrains and operational needs.
