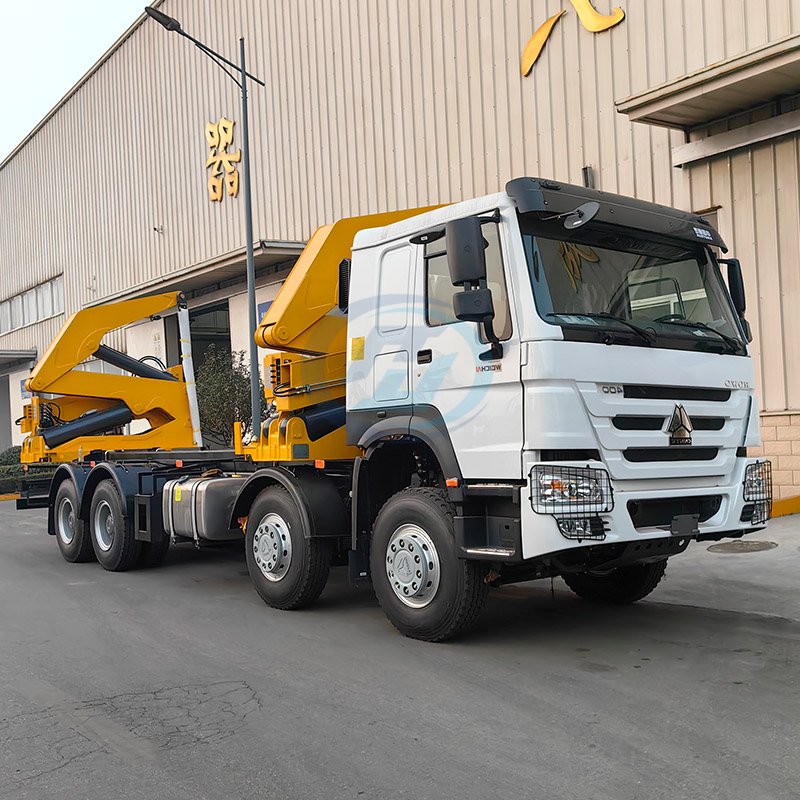

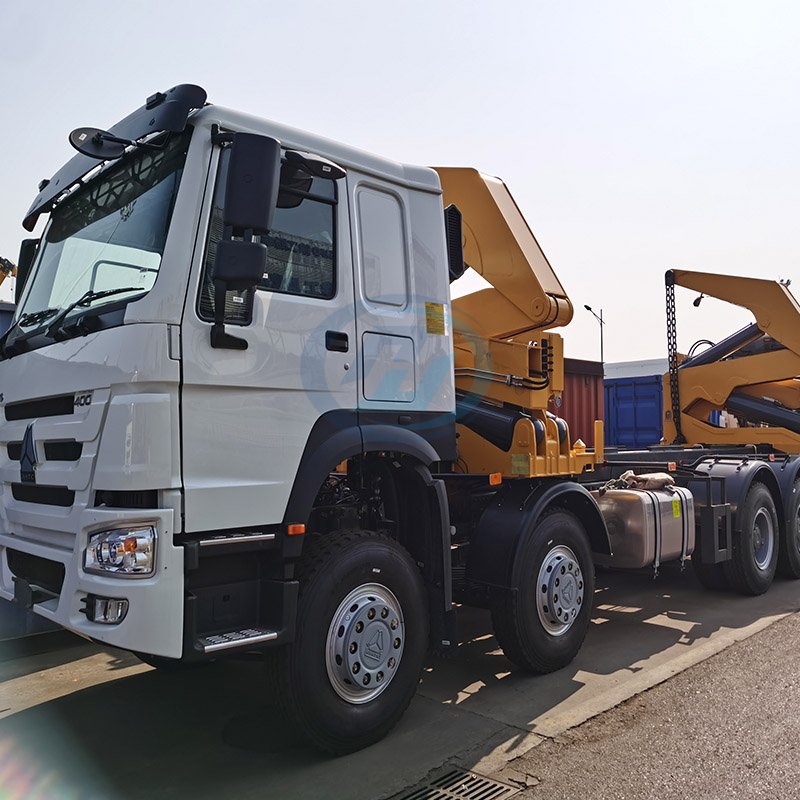

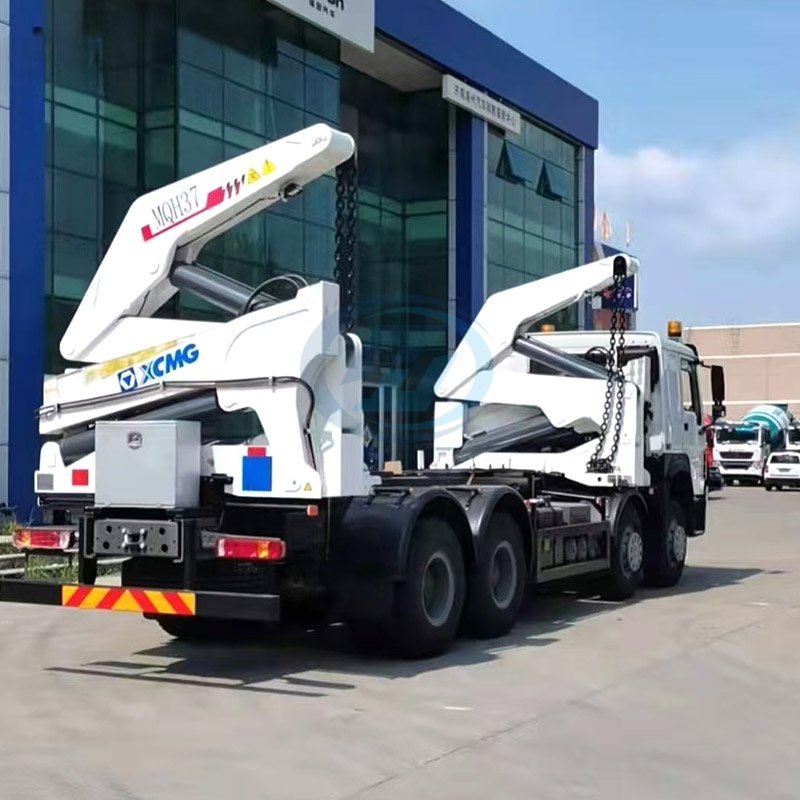

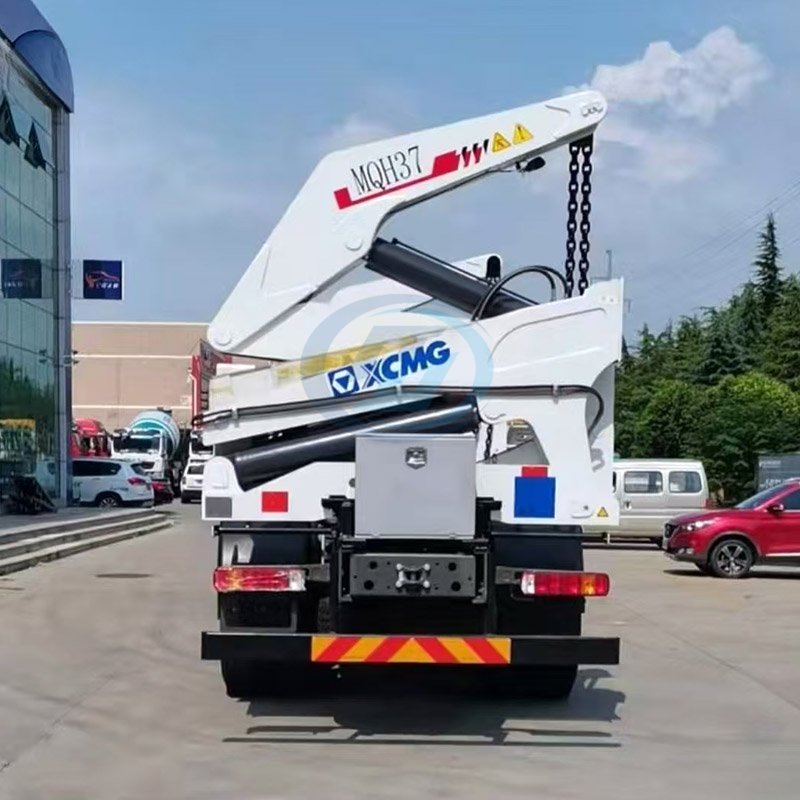

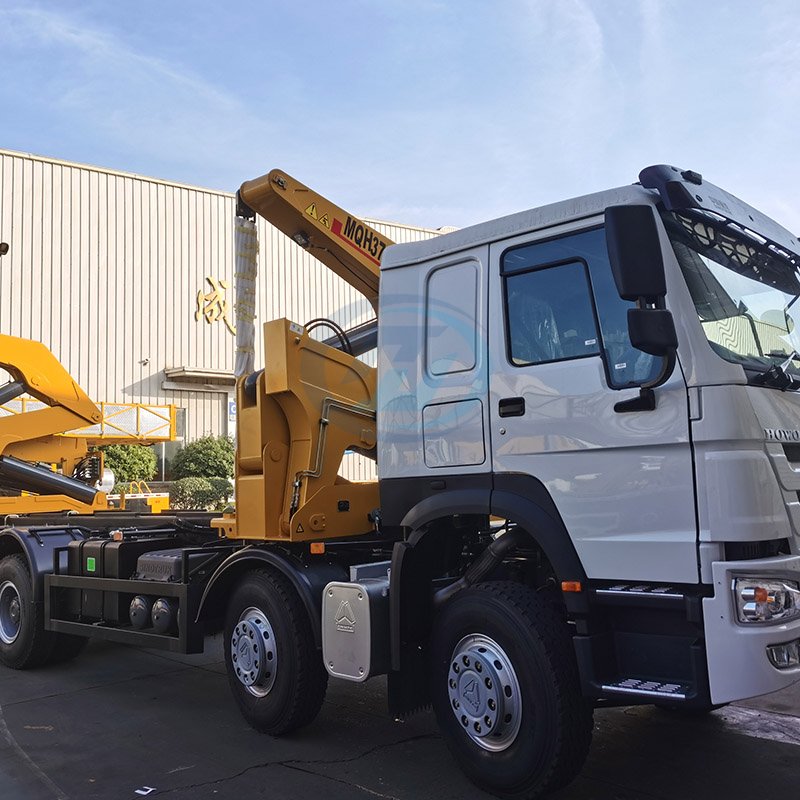

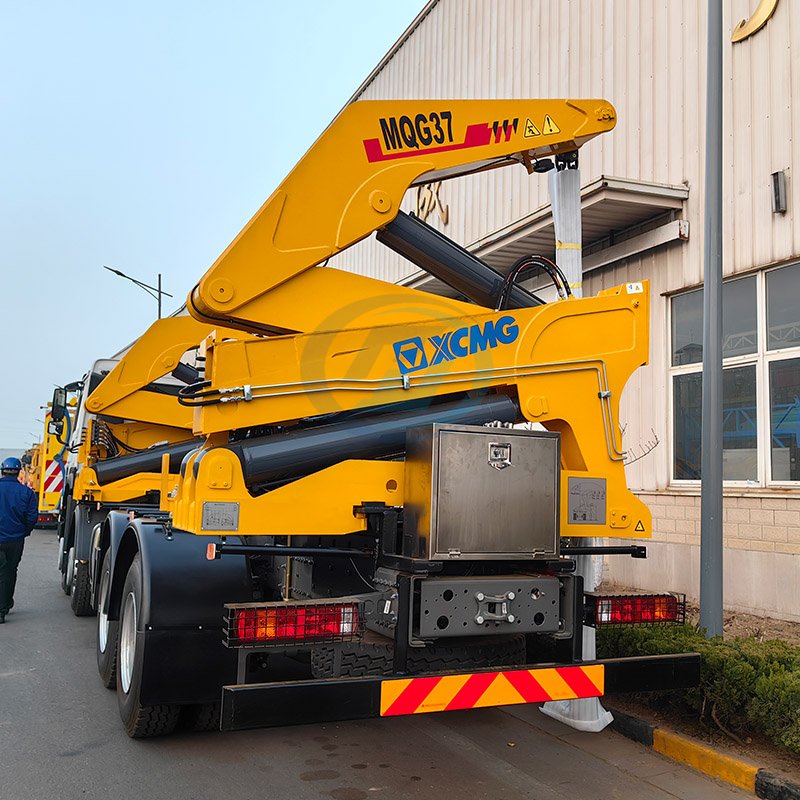

sinotruk howo side lift container crane

Specification

Product Features

1. All trucks with side lift container crane are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: 340hp, 371hp, 380hp and 400hp for option; with Euro ll, Ill, IV, V, VI emission standard;

4: Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.

5. Anti-Rust Treatment: The complete truck has undergone anti-rust treatment, enhancing its durability and longevity, even in challenging environments.6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Steering: Right Hand Drive, Left Hand Drive.

8. Primary functions: Container Handling Capability, Lateral Reach and Maneuverability.

9. Crane parameters: Max lifting capacity: 37T, max working range: 4m, rated working pressure: 28Mpa, fit for 20 feet container.

10. Tyres: Tube or tubeless is optional. Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
