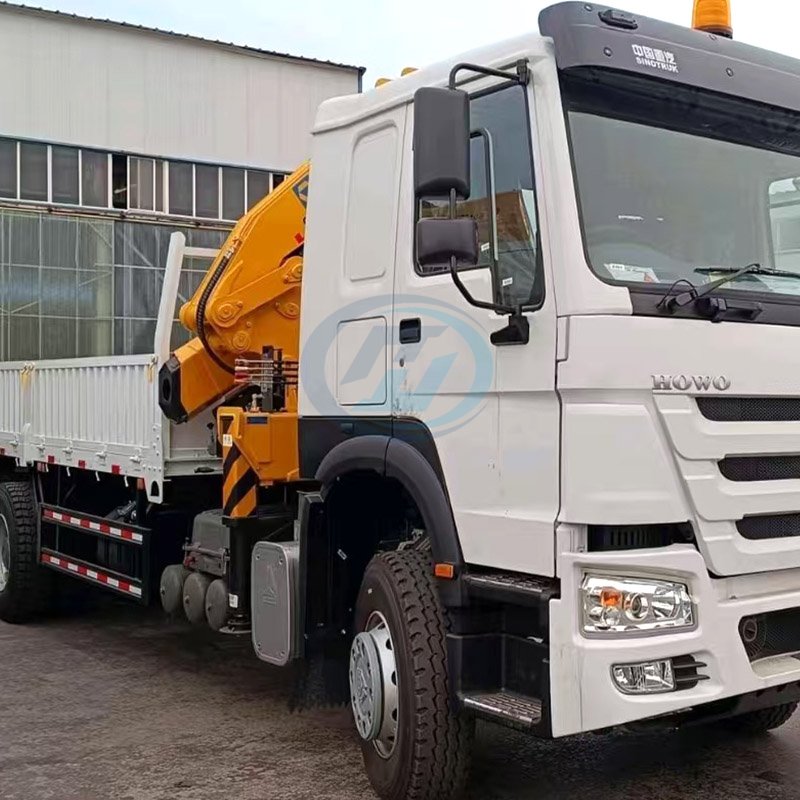

sinotruk howo 6x4 truck with crane

Specification

Product Features

1. All trucks with crane are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: 340hp, 371hp, 380hp and 400hp for option; with Euro ll, Ill, IV, V, VI emission standard;

4: Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer and PTO is optional as well.

5. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

6. Steering: Right Hand Drive, Left Hand Drive.

7. Primary functions: heavy lift capability and object transportation.

8. Cargo body: Customized according to different purposes, like plate material, loading capacity, cubic meters, etc.

9. Crane Parameters: Lifting capacity: 12T, 4 telescope booms, 360° rotation, working length is about 17m.

10. Tyres: Tube or tubeless is optional. Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used

11. Color: red, yellow, white is normal color, many other colors for optional.

12. Adaptability and Customization: Available in various sizes and configurations, customer could choose different chassis and cranes to meet specific industry needs. Winches, grapples, and spreader bars are for option, expanding their application range, making them highly adaptable to diverse tasks.
