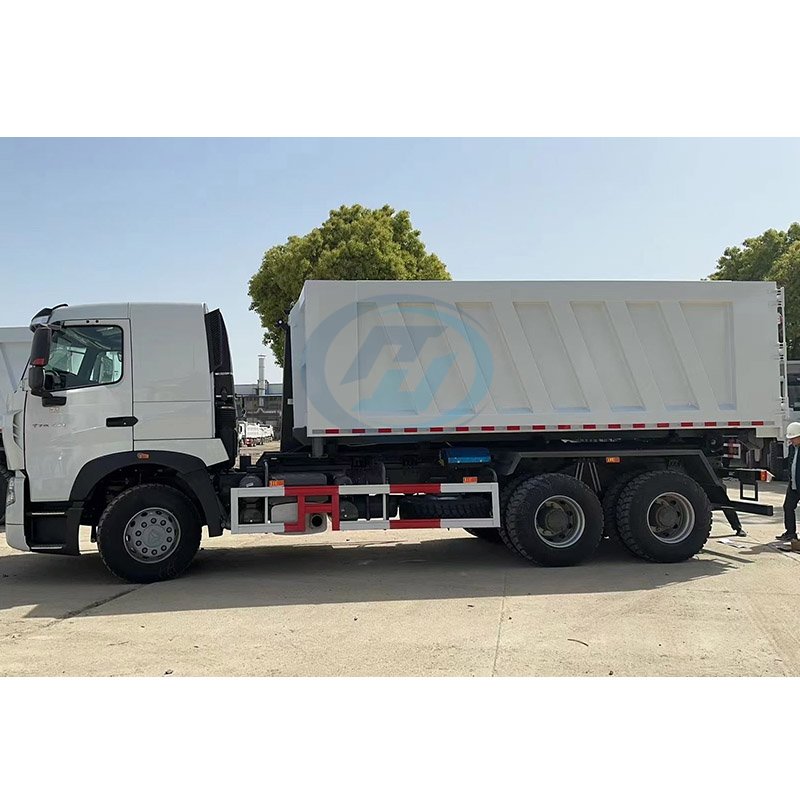

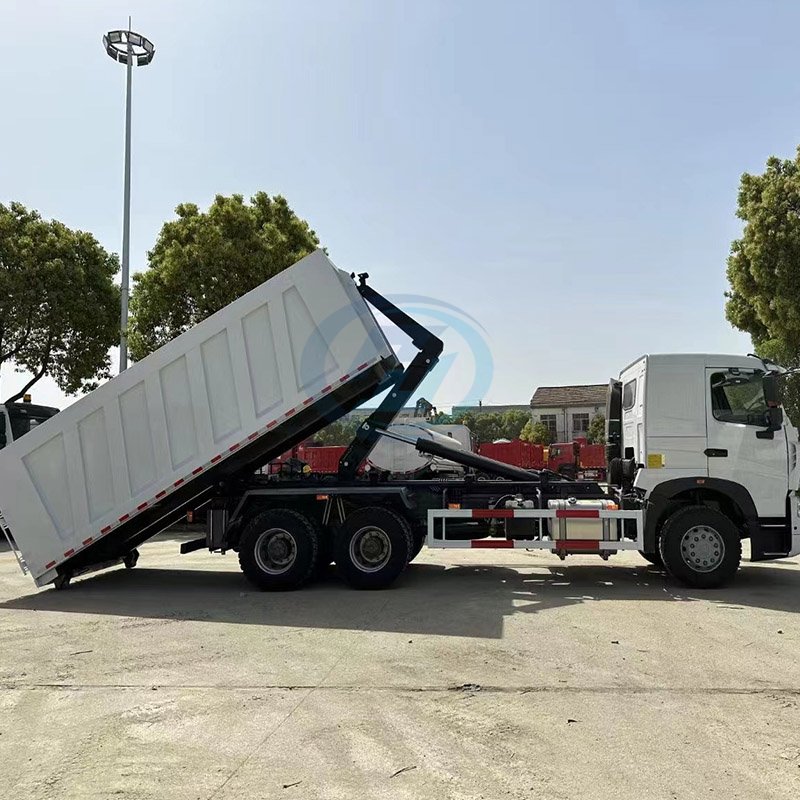

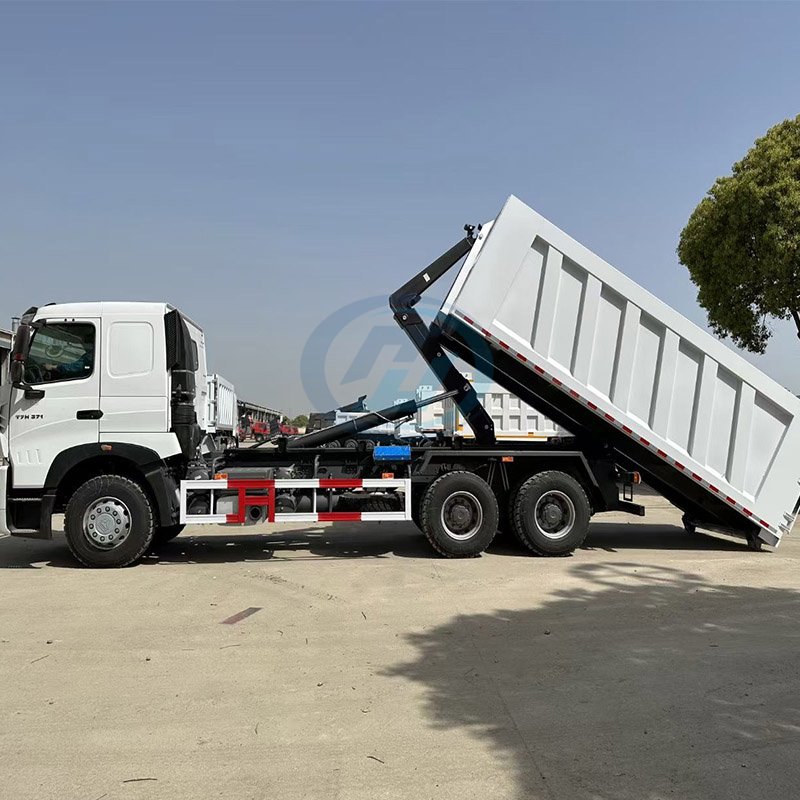

SINOTRUK HOWO 6X4 hook lift garbage truck is designed with a powerful and reliable hook lift arm system that enables easy and quick loading and unloading of garbage containers. Hook lift trucks collect hook bins 20 cubic meters. The truck loads and unloads the heavy-duty bins with a hydraulic hook operated by the driver. The hook load capacity can reach 22 tons. They are popular in residential and commercial areas and widely used in Africa, Southeast Asia, South America, and Middle East.
Specification
SINOTRUK HOWO 6X4 HOOK LIFT GARBAGE TRUCK | |
Model | ZZ1257V4647B1 |
Cabin | HW76, long flat roof cabin, single sleeper, with air conditioner |
Engine | WP12.400E201, 400HP, Euro II Emission standard Optional: WP10.380E22 (380HP) |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 9500kg loading capacity |
Rear axle | 2*16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance LHD, RHD |
Tire | 315/80R22.5, 11 pcs (including one spare tire) Option: 12R22.5, 12.00R20, 13R22.5 |
Fuel tank | 400L/600L |
Hook lift capacity | 20 tons Option: 18 tons, 22 tons |
Body size (normal) | 6000x2300x1500 mm |
Overall dimension | 9000*2550*3500 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. All hook lift garbage trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
3. Classic engine: 380hp, 400hp for option; with Euro ll, Ill, IV, V, VI emission standard;
4. Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.
5. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
6. Right Hand Drive, Left Hand Drive, Colors are optional.
7. Tyres: Tube or tubeless is optional. Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used
8. Hook Capacity: 18T, 20T, 22T, China brands and imported brands are optional.

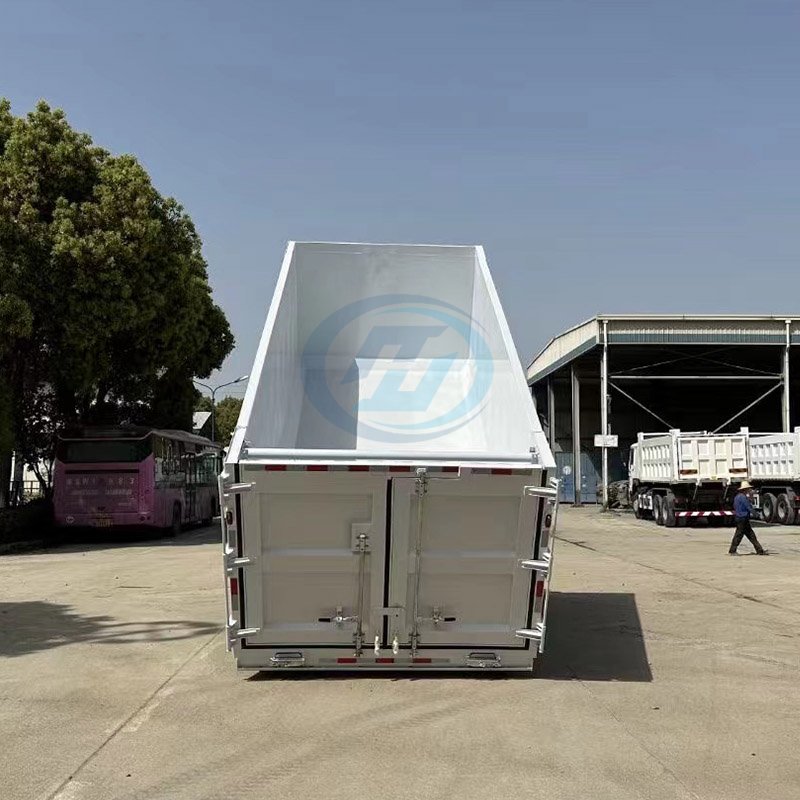

9. Garbage container: Living garbage containers, construction garbage containers, split garbage stations and mobile compression garbage stations for choice.
10. Simple operation: All operations can be completed in the cab, the operation is simple and convenient, reducing the labor intensity of the operator.
11. One truck can be equipped with multiple boxes, circulating transportation, improving the efficiency of vehicle use and reducing costs.
