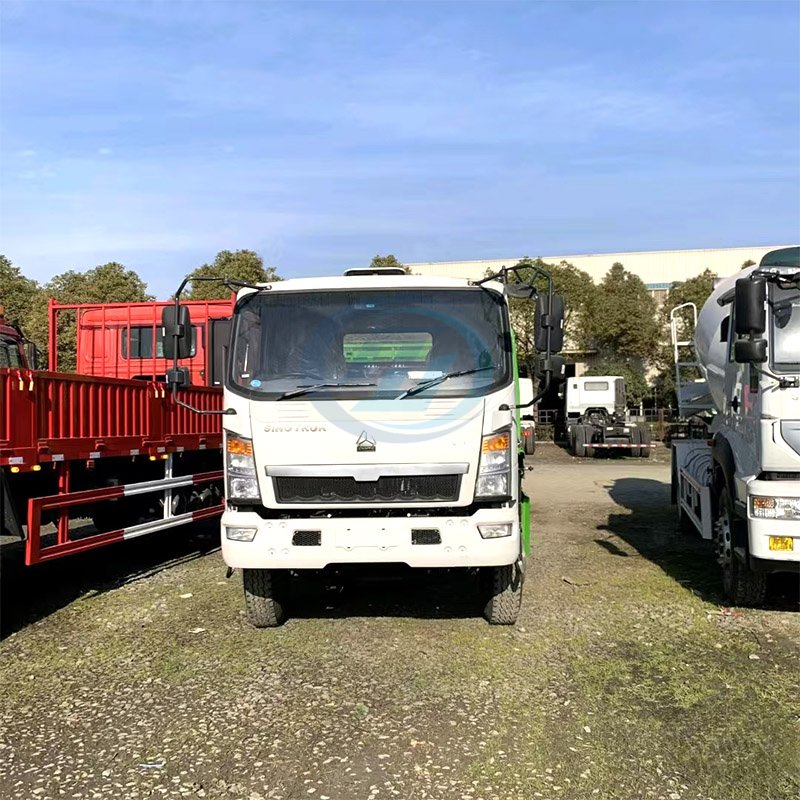

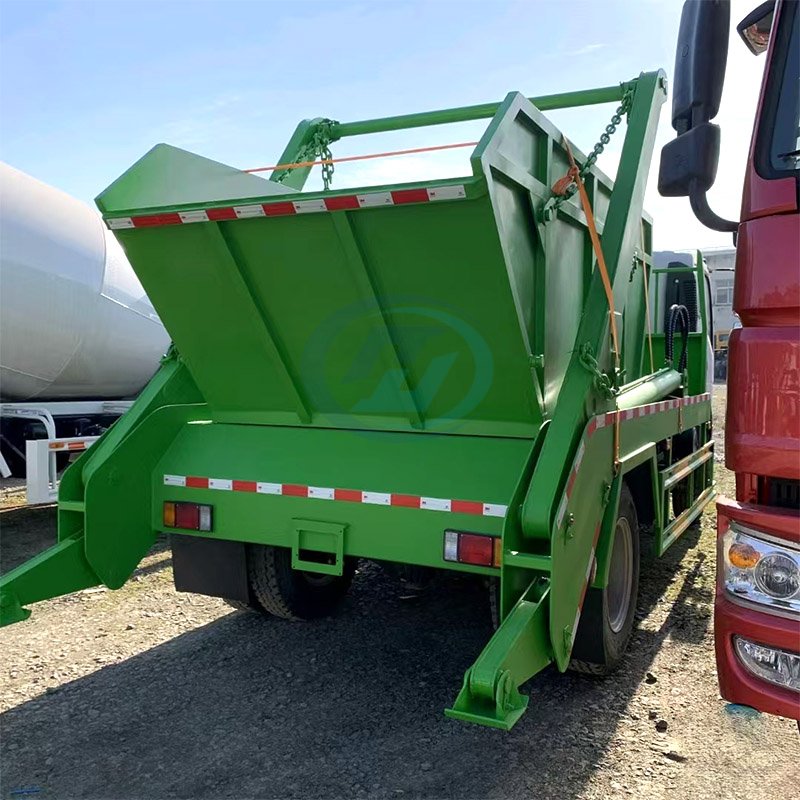

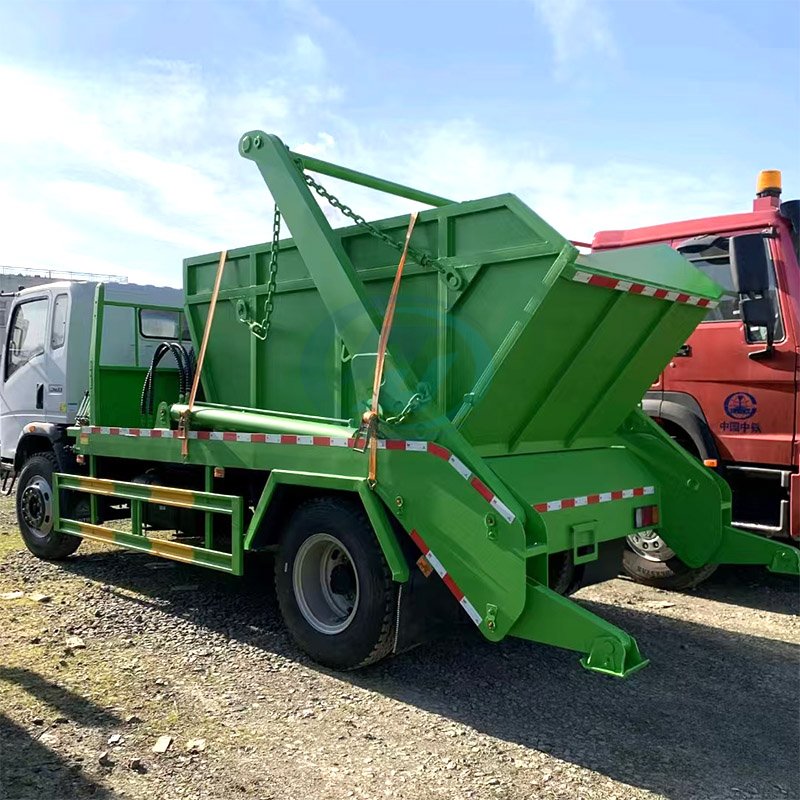

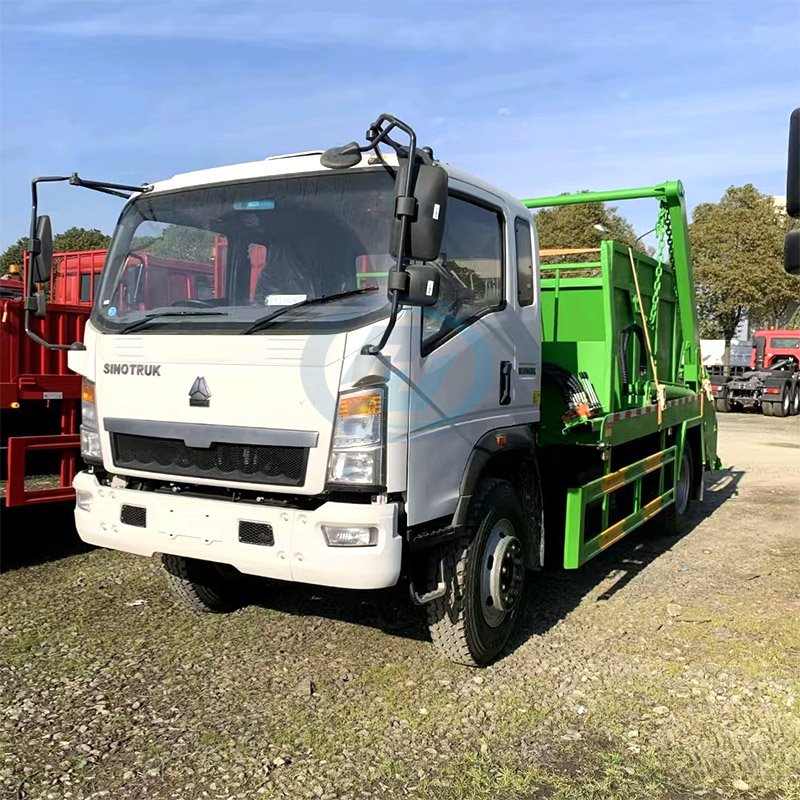

SINOTRUK HOWO 4X2 light swing arm garbage truck is also called skip loader truck which is designed for transporting and handling large waste containers. It is commonly used in construction sites, industrial areas, and waste management operations to collect and transport bulky waste, debris, and other materials. The truck is equipped with a hydraulic lifting mechanism that allows it to easily load and unload. The loading capacity can reach to 8-10 tons. 6CBM, 8CBM and 10CBM garbage container is optional. One truck can match multiple containers, which is convenient for waste collection.
Specification
SINOTRUK HOWO 4X2 LIGHT SWING ARM GARBAGE TRUCK | |
Model | ZZ1107G4215C145 |
Cabin | 2880mm, row and half cab, one sleeper Option: A/C, air deflector |
Engine | YUCHI brand, 140HP, 160HP, Euro II Emission standard |
Transmission | WLY, manual, 6 F & 1 R HW90510C, manual, 10 F & 2 R |
Front axle | 3200kg-3600kg loading capacity |
Rear axle | 8000kg-10500kg loading capacity |
Steering | LHD or RHD, with Hydraulic assistance |
Tire | 8.25R20, 7 pcs (including one spare tire) Option: 9.00R20, 10.00R20 |
Fuel tank | 150L, 220L |
Garbage Container | 10 CBM Optional: 5CBM, 6CBM, 8CBM |
Overall dimension | 7600*2550*3800 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. All swing arm trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
2. Classic engine: YUNNEI engine, YUCHAI engine, COMMINS engine, 116hp, 140hp, 154hp, 160hp, and 168hp for option;
3. Transmission: Sinotruk self-develop HW brand, 10 forwards and 2 reverses. And China famous brand WLY is optional as well.
4. Right Hand Drive, Left Hand Drive, Colors are optional.
5. Tyres: Radial tyres, Tube or tubeless is optional.
6. Container Volume: 6cbm to 10cbm is optional.
7. High Load Capacity: Built on a SINOTRUK reinforced chassis to handle heavy loads (up to 8+ tons)
8. Safety Enhancements: Skip-locking mechanisms to secure loads during transit.
9. Roller support is optional at the rear to provide stability during the container lifting. It is controlled independently and hydraulically operated.
10. Time and Efficiency: Loading and unloading time is within 130s. Rapid loading cycles boost productivity in fast-paced environments.
