SINOTRUK HOWO NX 6X4 371HP TIPPER DUMP TRUCK

Dump Truck

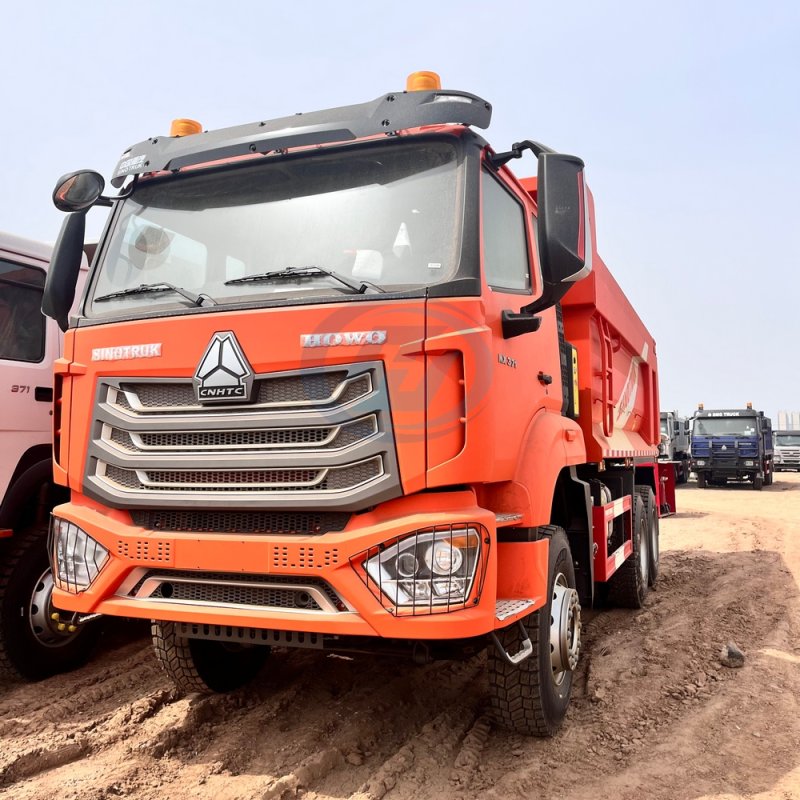

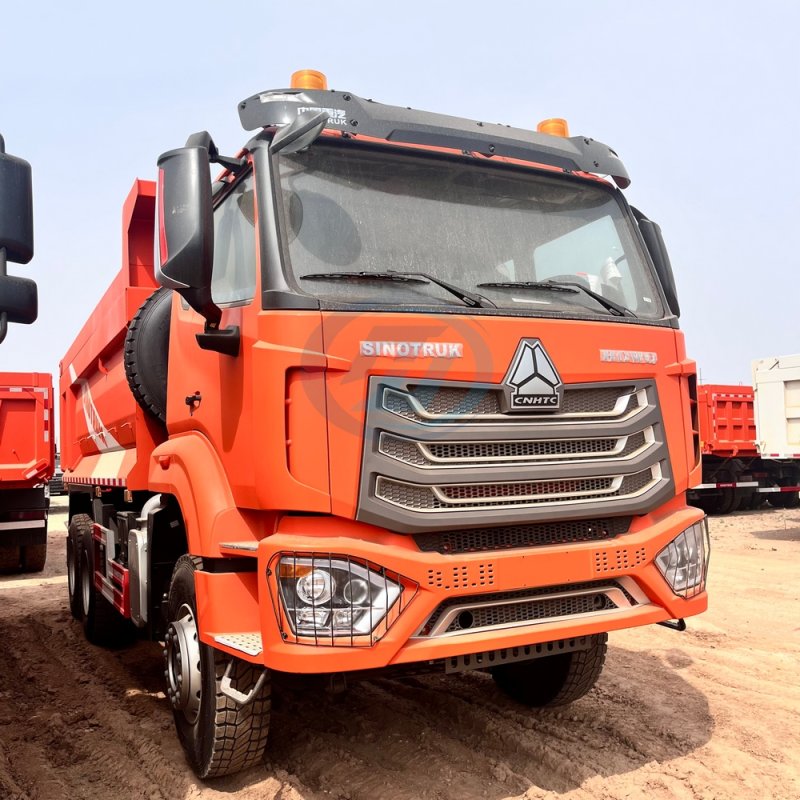

SINOTRUK HOWO NX 6X4 371HP TIPPER DUMP TRUCK

Product Details

SINOTRUK HOWO NX 6X4 Tipper trucks are widely used for the transportation of construction waste and ore. Due to its sturdy structure and competitive price, high load capacity, and low fuel consumption, it is widely used in Africa, Central Asia, Southeast Asia and South America. The cargo box volume covers 10CBM-22CBM. The maximum load-bearing capacity can reach 40 tons, and we can customize dimension and steel plate thickness of the cargo box according to your requirements.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification：

SINOTRUK HOWO NX 6X4 DUMPER TRUCK
Model	ZZ3257V384JB1
Cabin	H77L, long cabin, single sleeper, with air conditioner
Engine	WP10.380E22(380HP),WP10.400E201(400HP) ,WD615.47(371HP),Euro II Emission standard Option：WP10.300E22(300HP)
Transmission	HW19710, manual, 10 F & 2 R
Front axle	9500kg loading capacity
Rear axle	16000kg loading capacity
Steering	Bosch brand, with Hydraulic assistance (Right hand driving for option)
Tire	315/80R22.5, 7 pcs (including one spare tire) Option:12.00R20,13.00R22.5
Fuel tank	300L/400L

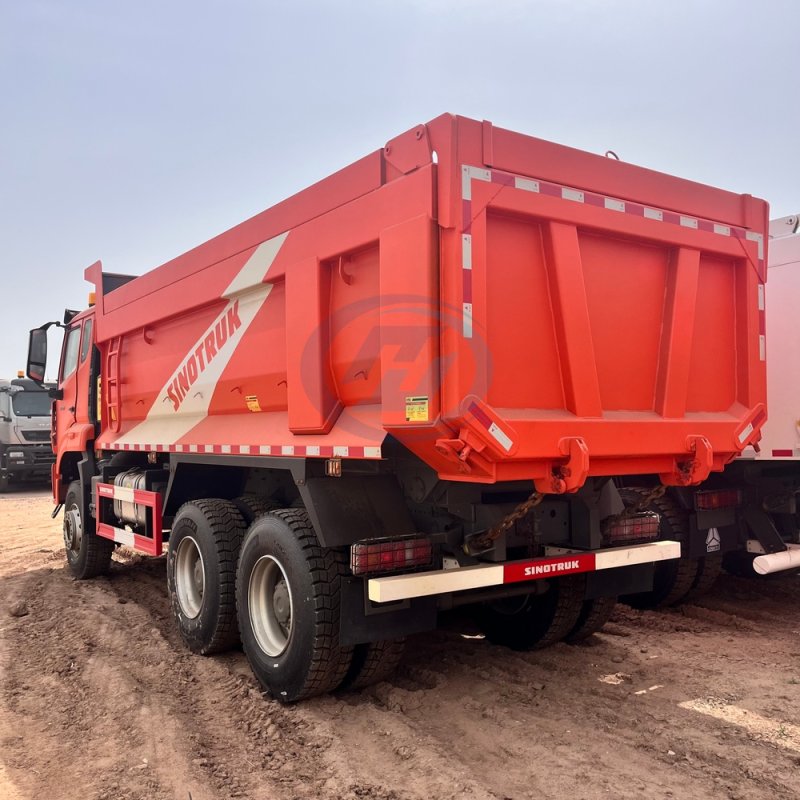

Cargo box	560023001500mm, floor 8mm side plate 6mm, Front hydraulic lifting system， U shape cargo box with High strength steel plate
Overall dimension	865025503500 mm
Color	Option

Product Features

1. All dump trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: 300hp, 336hp,380hp,371 and 400hp for option ; with Euro II, III, IV, V, VI emission standard;

4:Gearbox/Transmission: SINOTRUK self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Tipping hydraulic system: front posed vertical lifting mechanism and middle lifting mechanism. HYVA brand is optional.

9. Tipping Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel,T700 ,H850 and NM450 high tensile steel, HARDOX, manganese steel.

10. Tyres: Mining purpose tyres can be equipped. China famous tire brand, TRIANGE, is mostly used.
