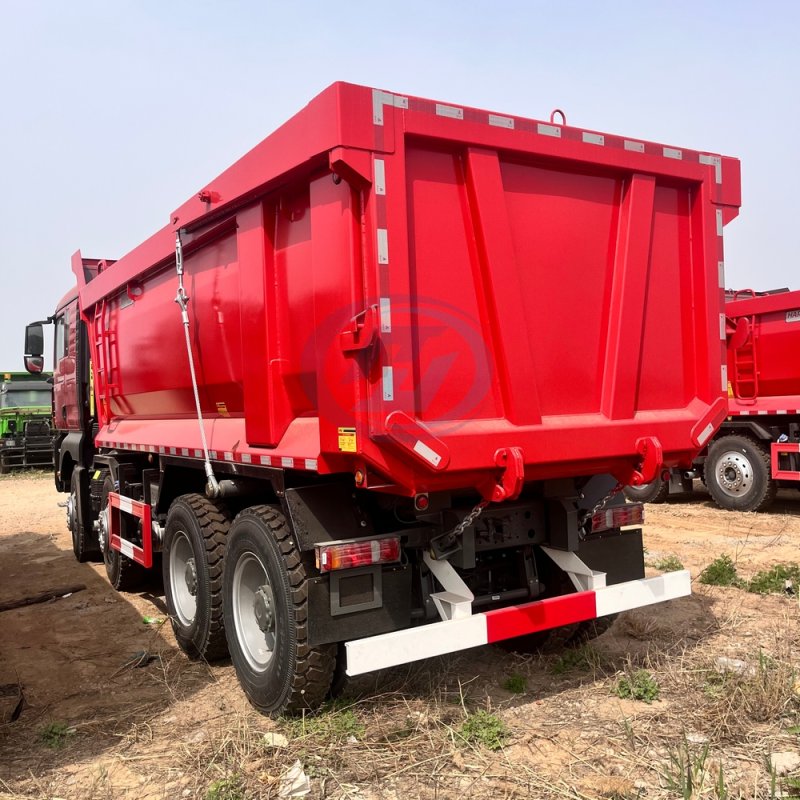

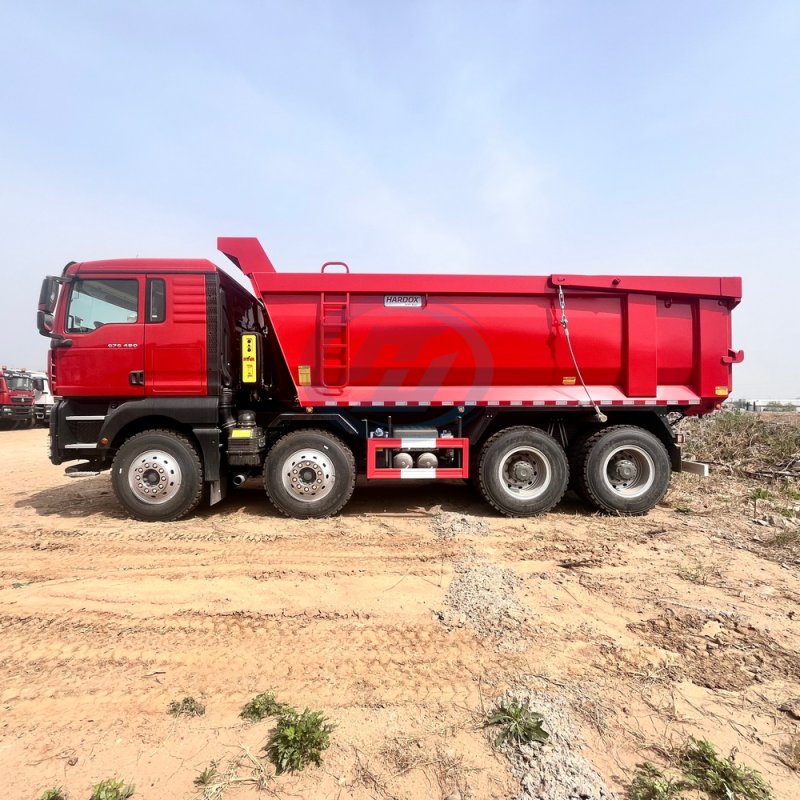

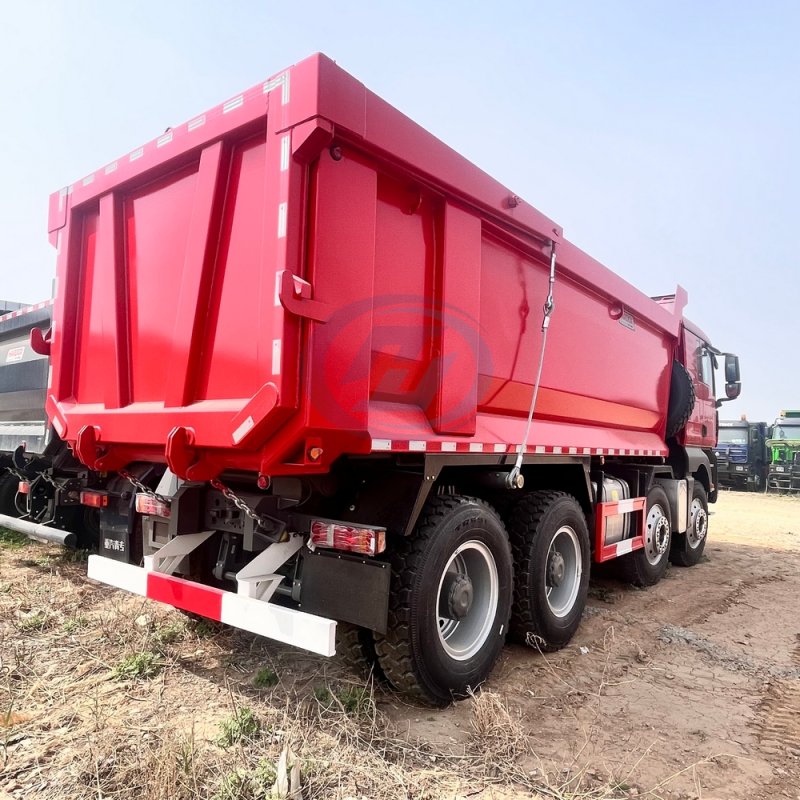

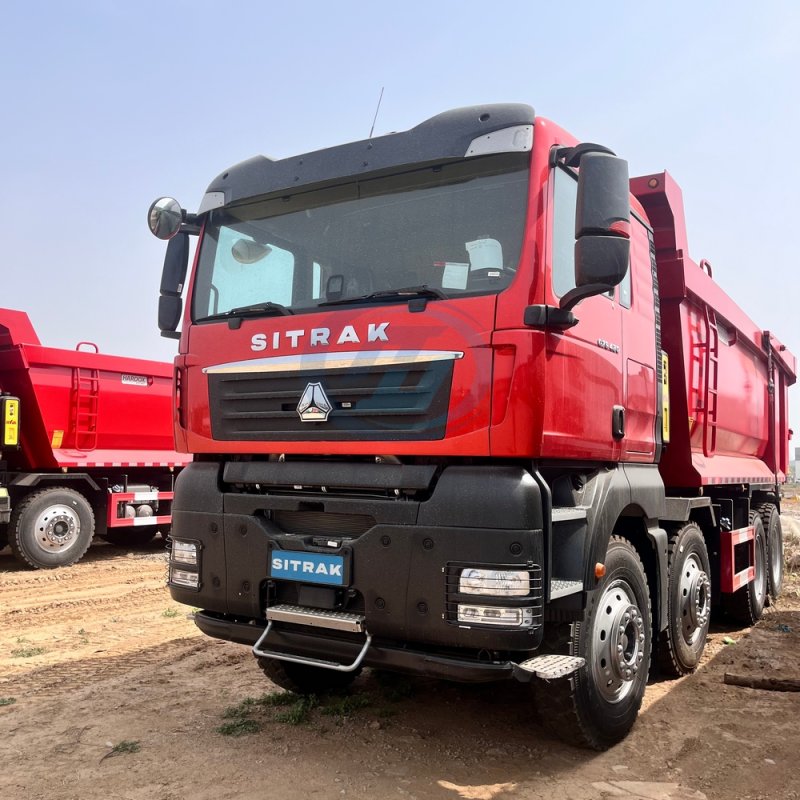

SINOTRUK SITRAK 8X4 480HP DUMP TRUCK WITH U SHAPE CARGO BOX

Dump Truck

SINOTRUK SITRAK 8X4 480HP DUMP TRUCK WITH U SHAPE CARGO BOX

Product Details

China SINOTRUK SITARK 8X4 is the high-end model dump trucks which are widely used for the transportation of construction waste and ore. Due to its sturdy structure, high load capacity, and low fuel consumption, it is widely used in Russia, Belarus, Chile, Peru, Saudi Arabia, United Arab Emirates, Australia, etc. The cargo box volume covers 20CBM-35CBM. The maximum load-bearing capacity can reach 70 tons, and we can customize dimension and steel plate thickness of the cargo box according to your requirements.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification：

SINOTRUK SITARK 8x4 460HP TRUCK WITH FE FRONT HYDRAULIC SYSTEM
Model	ZZ3316V286MF1
Cabin	G7S-F, long cabin, with air conditioner
Engine	MC11.46-61, 460HP, Euro VI Emission standard
Transmission	HW25712XSJ, manual, 12 F & 2 R
Front axle	2*9500kg loading capacity
Rear axle	2*16000kg loading capacity
Steering	Bosch brand, with Hydraulic assistance
Tire	315/80R22.5, 13 pcs (including one spare tire) Option:12.00R20,12R22.5,13R22.5
Fuel tank	300L/400L
Cargo box	620023001500mm, floor 12mm side plate 8mm, Front hydraulic lifting system, U Shape Cargo box with hardox High strength steel plate
Overall dimension	1050025503500 mm
Color	Option

Product Features

1. All dump trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: MC13.48-50，480hp, 440hp(MC11.44-50) and 540hp(MC13.54-50) for option ; with Euro ll, Ill, IV, V, VI emission standard;

4: Gearbox/Transmission: Manual operation (MT), 10/12/16 forwards and 2 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Tipping hydraulic system: front posed vertical lifting mechanism and middle lifting mechanism. HYVA brand is optional.

9. Tipping Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, HARDOX, manganese steel.

10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
