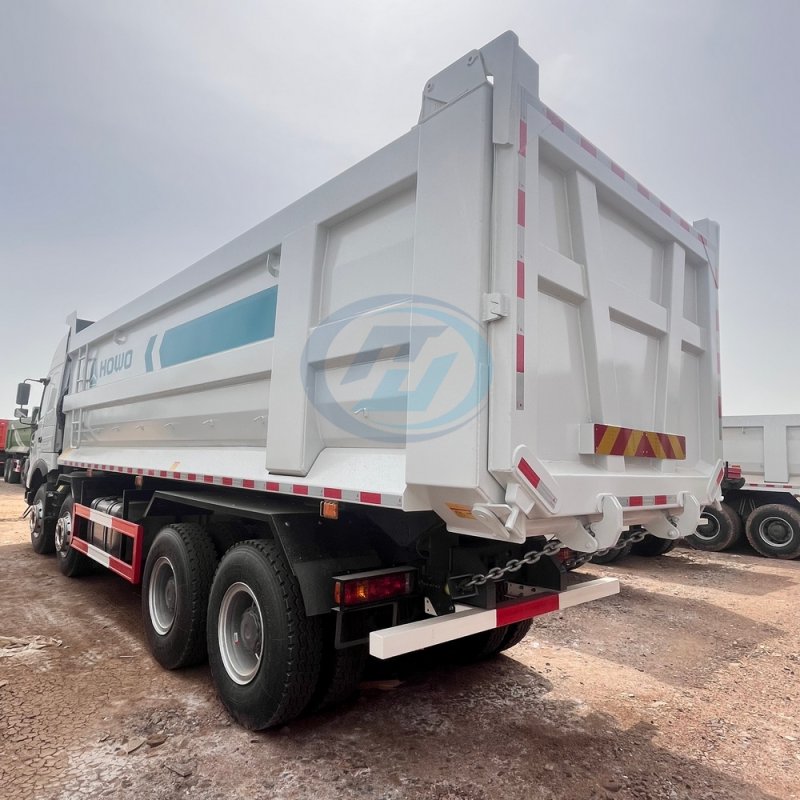

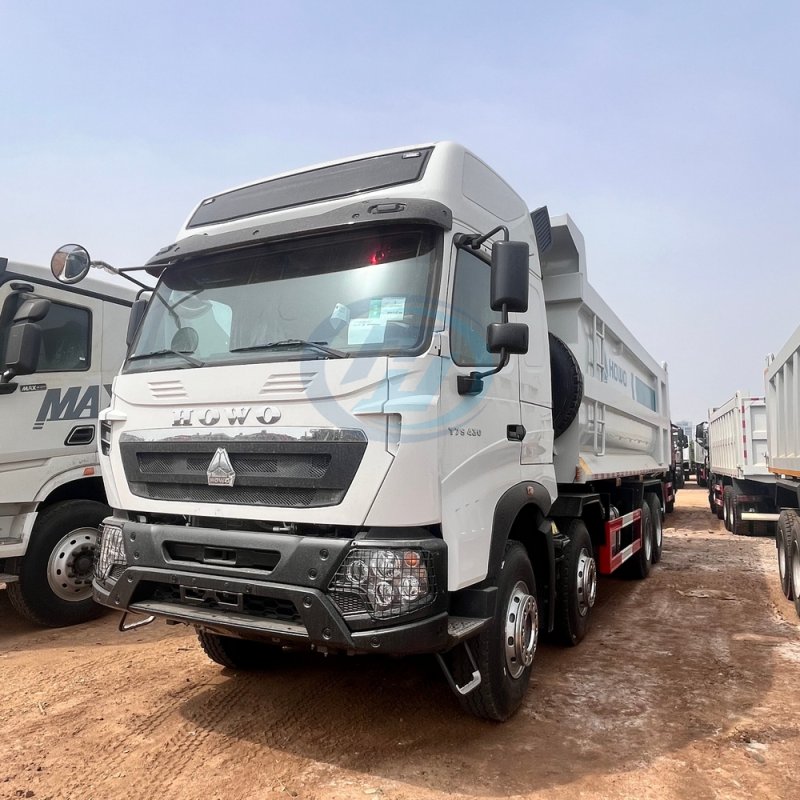

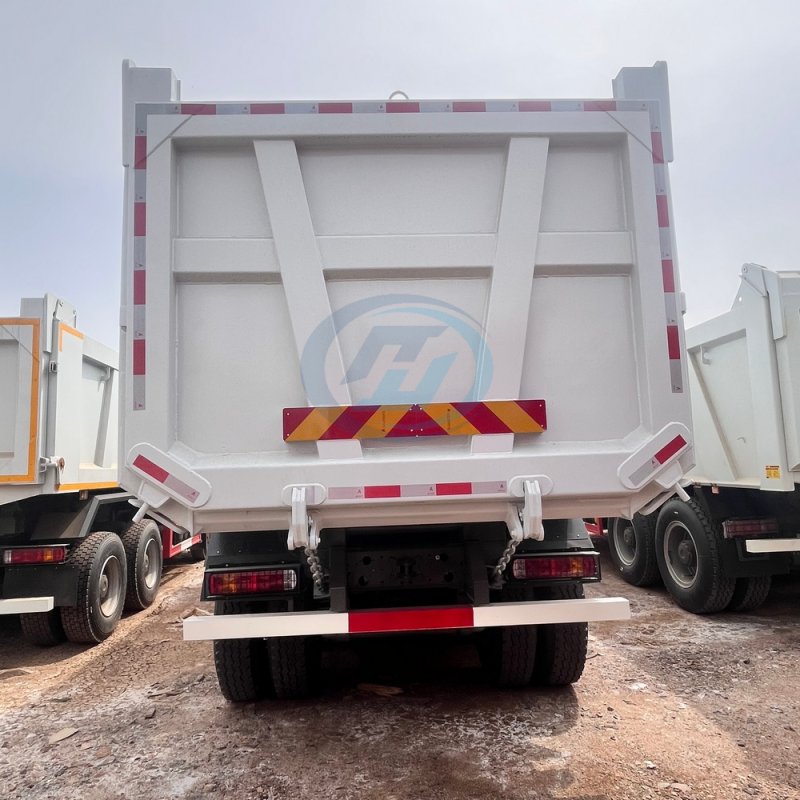

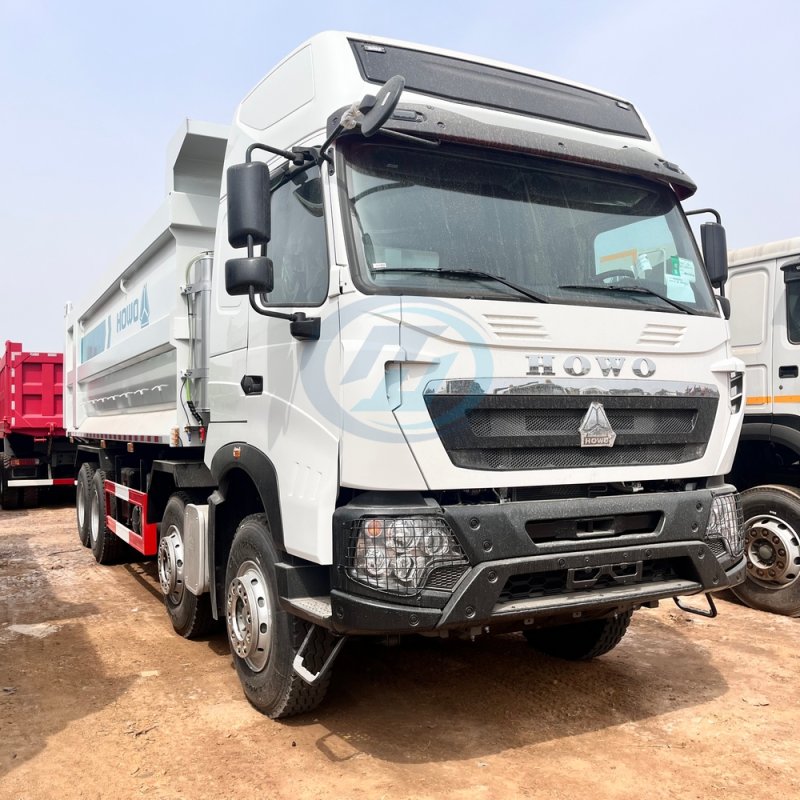

SINOTRUK HOWO T7S 8X4 430HP DUMP TRUCK U Shape Hardox 450 Cargo Box

Dump Truck

SINOTRUK HOWO T7S 8X4 430HP DUMP TRUCK U Shape Hardox 450 Cargo Box

Product Details

SINOTRUK HOWO T7S is the Upgraded model to replace HOWO-7, The 8X4 4 axles 12 wheel dump trucks are widely used for the transportation of construction waste and ore. Due to its sturdy structure, high load capacity, and low fuel consumption, it is widely used in Africa, Central Asia, Southeast Asia, and South America. The cargo box volume covers 20CBM-35CBM. The maximum load-bearing capacity box according to your requirements.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification：

SINOTRUK HOWO T7S 8X4 430HP DUMP TRUCK U Shape Hardox 450 Cargo Box
Model	ZZ3317V386HB1
Cabin	T7S-V, long cabin, with air conditioner
Engine	WP12.430E201(430HP) Euro II Emission standard Option: WP12S400E201(400HP),,WD615.47(371HP), WP10.380E22（380hp）
Transmission	HW19710, manual, 10 F & 2 R
Front axle	2*9500kg loading capacity
Rear axle	2*16000kg loading capacity
Steering	Bosch brand, with Hydraulic assistance
Tire	315/80R22.5, 13 pcs (including one spare tire) Option:12.00R20,12R22.5,13R22.5
Fuel tank	300L/400L
Cargo box	760023001500mm, floor 8mm side plate 6mm, U-shaped reinforced cargo box, Hardox 450 high-strength steel plate, HYVA front lifting hydraulic system
Overall dimension	1080025503600 mm
Color	Option

Product Features

1. All dump trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Classic engine: WD615.47(371HP), WP10.380E22（380hp），WP12.400E201（400hp）, WP12.430E201（430hp） ; with Euro ll, Ill, IV, V, VI emision standard;

4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Tipping hydraulic system: front posed vertical lifting mechanism and middle lifting mechanism. HYVA brand is optional.

9. Tipping Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, HARDOX, manganese steel.

10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used
