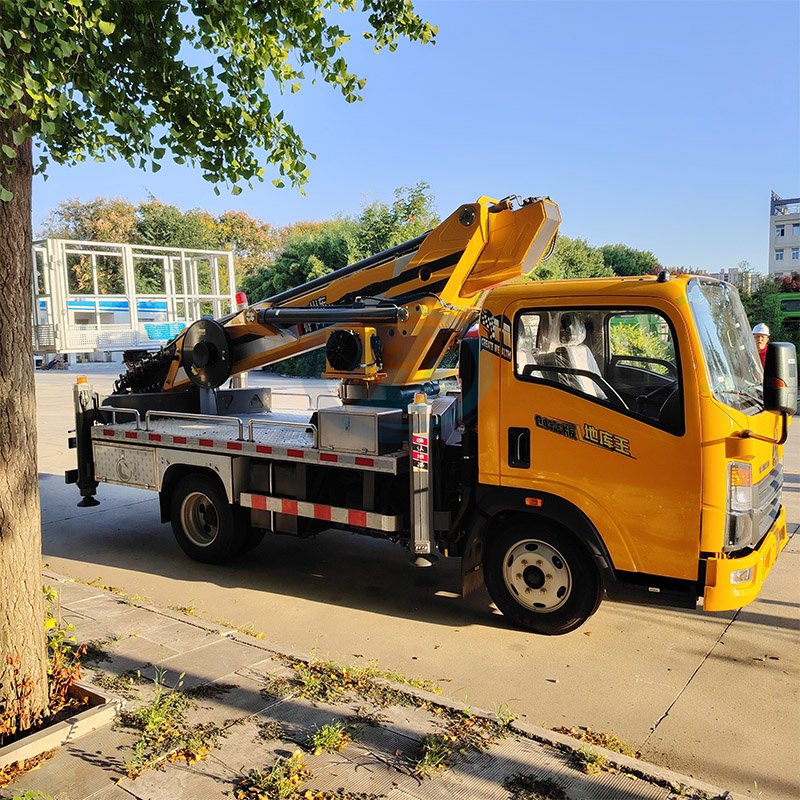

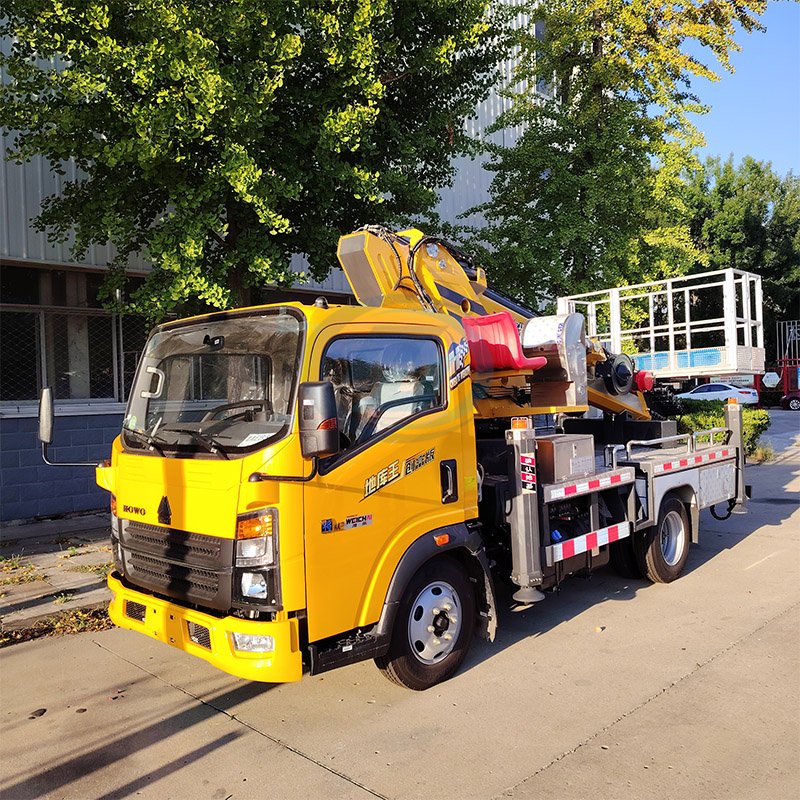

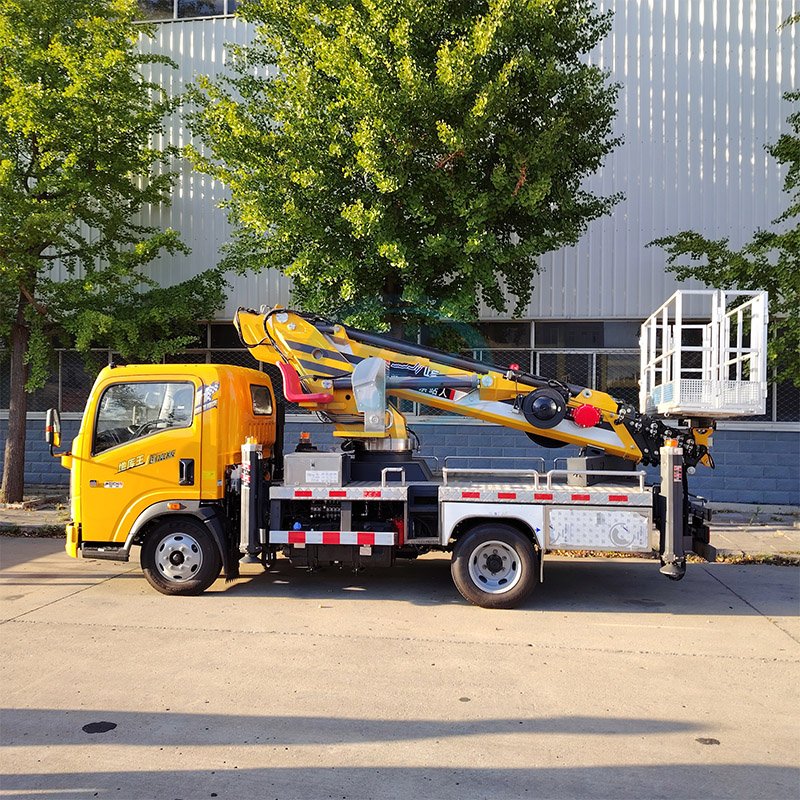

SINOTRUK HOWO 4X2 Light Aerial Work Truck

Specification

Product Features

1.All light aerial work trucks are equipped with high - strength aluminum alloy telescopic booms, which have an excellent strength - to - weight ratio, ensuring stability and flexibility during operation.  Meanwhile, the reinforced chassis design increases the chassis' torsion resistance and load - bearing capacity, making it adaptable to various complex terrains.

2.A wide range of configurations are available.  These include adjustable and comfortable seats to guarantee the operator's comfort during long - term operation.  A full - range safety guardrail is installed to effectively prevent personnel from falling.  The work platform is equipped with an automatic horizontal adjustment system to ensure the platform remains level at all times, enhancing operational safety.  Additionally, LED work lights can be optionally installed to meet the needs of night operations.

3.Classic engine: 116hp,130hp,160hp and 141hp for option ; with Euro ll, Ill, IV, V, VI emision standard;

4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 6/12 forwards and 2 reverses, synchronizer is optional as well.

5.An advanced hydraulic - driven and electronically - controlled system is adopted, which is easy to operate and highly responsive.  A wireless remote control is provided, allowing the operator to precisely control the equipment from a certain distance.  An intelligent operation handle with anti - misoperation functions can be optionally installed to further improve operational safety.

6.Special Functions: For some scenarios that require operation in narrow spaces, the vehicle has a compact body design and a flexible steering system, enabling easy in - place turning.  An automatic balance system can also be optionally installed to ensure the stability of the equipment when operating on uneven ground.

7.Rear Axle: Double-stage reduction rear axle with a full range of differential ratios, designed to handle complex and mixed road conditions with ease.

8.Right Hand Drive Left Hand Drive Colors are optional.

9.Lifting System: It is equipped with an efficient hydraulic lifting system, which offers smooth lifting with adjustable speed.  The maximum working height of the work platform can reach 10-20meters,meeting the operation requirements at different heights and ranges.  Imported hydraulic components can be optionally installed to improve the reliability and durability of the system.

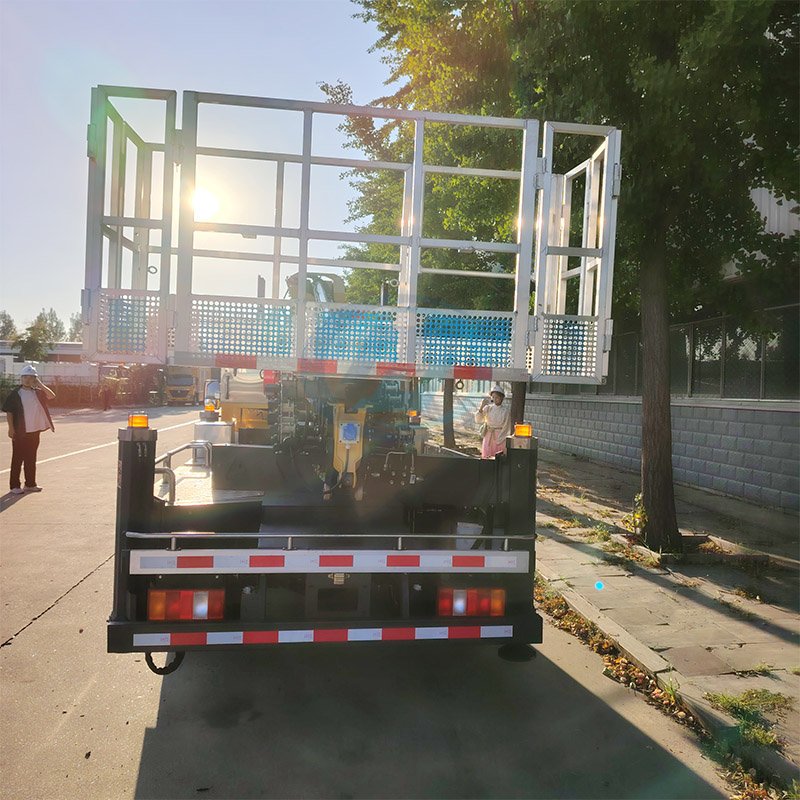

10.Work Platform: The work platform can be customized according to different operation requirements. The platform size and load - bearing capacity can be flexibly adjusted.  The platform surface is designed with anti - slip features to ensure the safety of operators. A foldable guardrail is equipped on the edge of the platform for easy access of personnel.

11.Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
