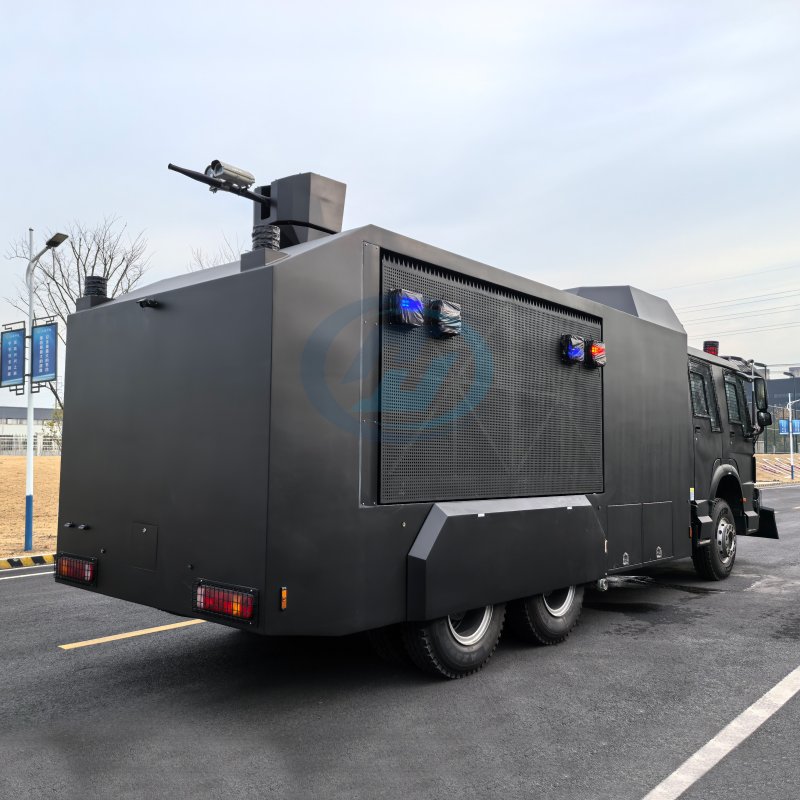

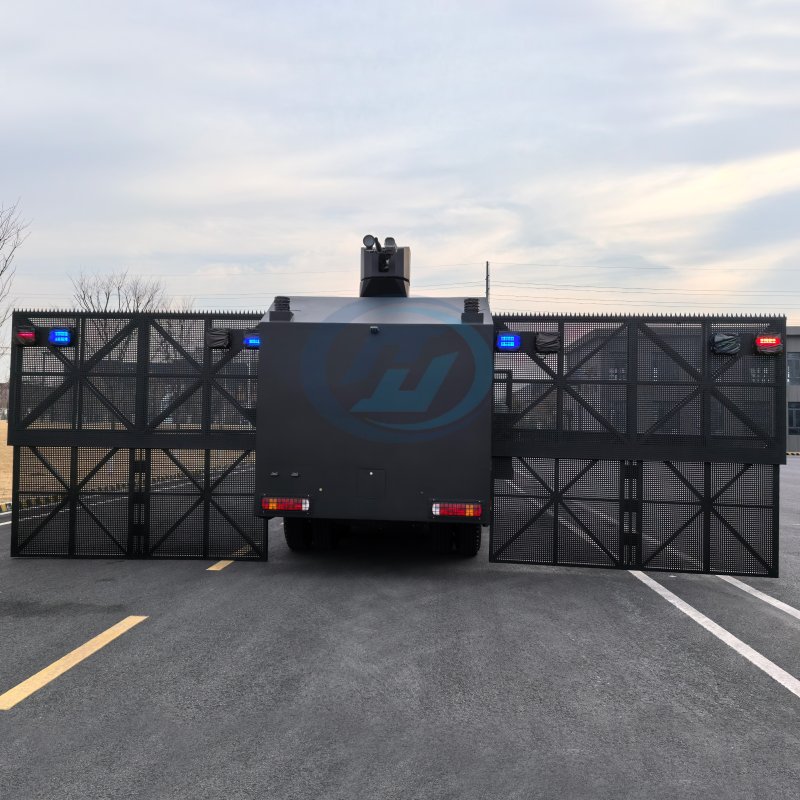

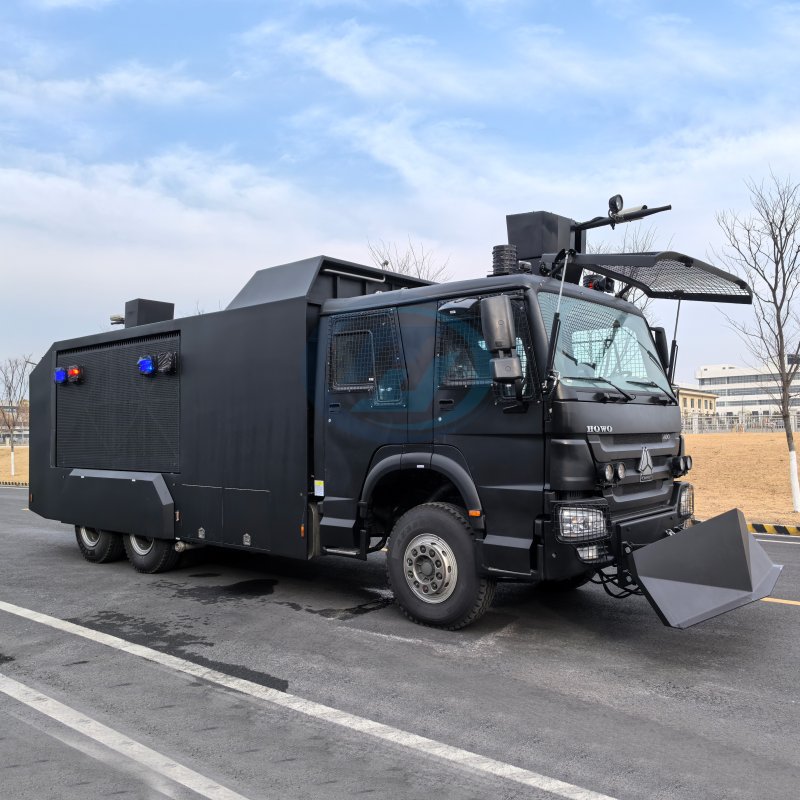

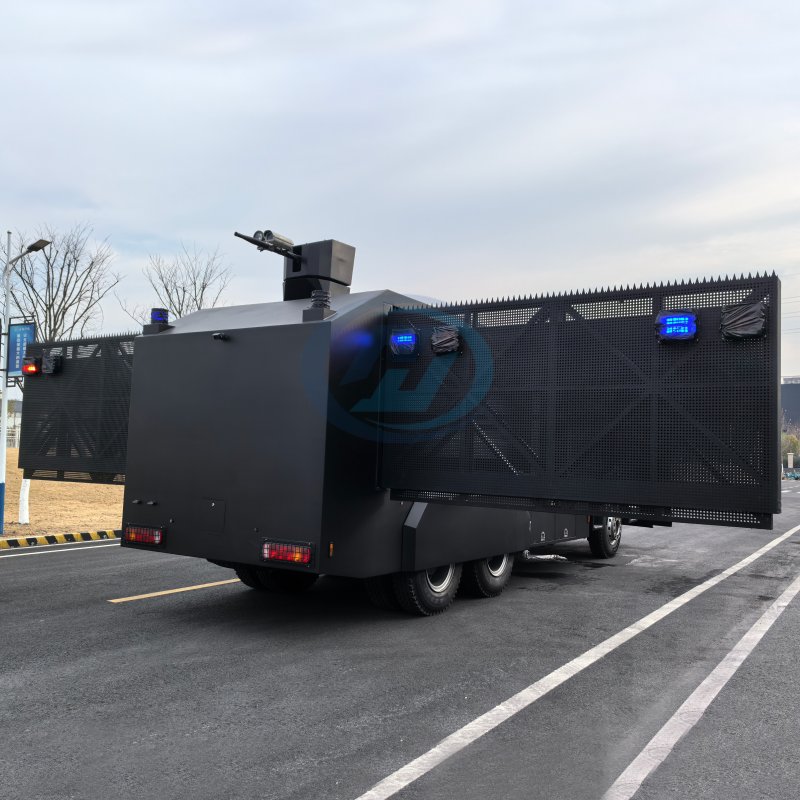

SINOTRUK HOWO 6X6 off Road Riot truck are widely used for Mainly used for maintaining public order, stopping terrorist riots, riot control and stability maintenance, armed law enforcement, dispersing crowds and other tasks. The characteristics of using water cannons and pulse cannons for long-range non lethal attacks,Can effectively quell riots, control further escalation of riots, disperse riot groups, and counter violent terrorists Exercise strong armed deterrence, it is widely used in Africa, Central Asia, Southeast Asia, and South America.
Specification:
SINOTRUK HOWO 6X6 Off Road Heavy Duty RIOT TRUCK | |
Model | ZZ2267N4657A |
Cabin | HW76, long cabin, with air conditioner |
Engine | WD615.47, 371HP, Euro II Emission standard |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 9500kg loading capacity |
Rear axle | 2*16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 315/80R22.5, 11 pcs (including one spare tire) Option:12.00R20,13R22.5 |
Fuel tank | 400L |
Water cannon | Quantity:3 pieces Maximum range(meters): Top gun > 70 (in calm wind conditions), front gun > 40 Deterrence range (meters): Top gun > 45 (in calm wind conditions), Front gun > 20 Maximum elevation angle (°):70 Maximum pitch angle (°):30 Maximum turning angle.: Top Gun 350 (Front Gun 130) Volume of water tank (m³):15 |
Overall dimension | 10650*2550*3500 mm |
Color | Option |
Product Features
1. All dump trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
3. Classic engine: 380hp, 400hp and 430hp for option ; with Euro ll, Ill, IV, V, VI emision standard;
4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.
5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
7. Right Hand Drive Left Hand Drive Colors are optional.
8. This vehicle is equipped with a dedicated high-pressure diesel engine fire pump, a dedicated fire cannon, a hydraulic control system, and a water cannon set 。The anti riot water cannon vehicle has various anti riot functions such as suppression, marking, dispersal, firefighting, and obstacle clearing in the actual anti riot process, including control system, advanced communication system, warning system, and lighting system. It is one of the important weapons and equipment for handling sudden group incidents
9. Tipping Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, HARDOX, manganese steel.
10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used
