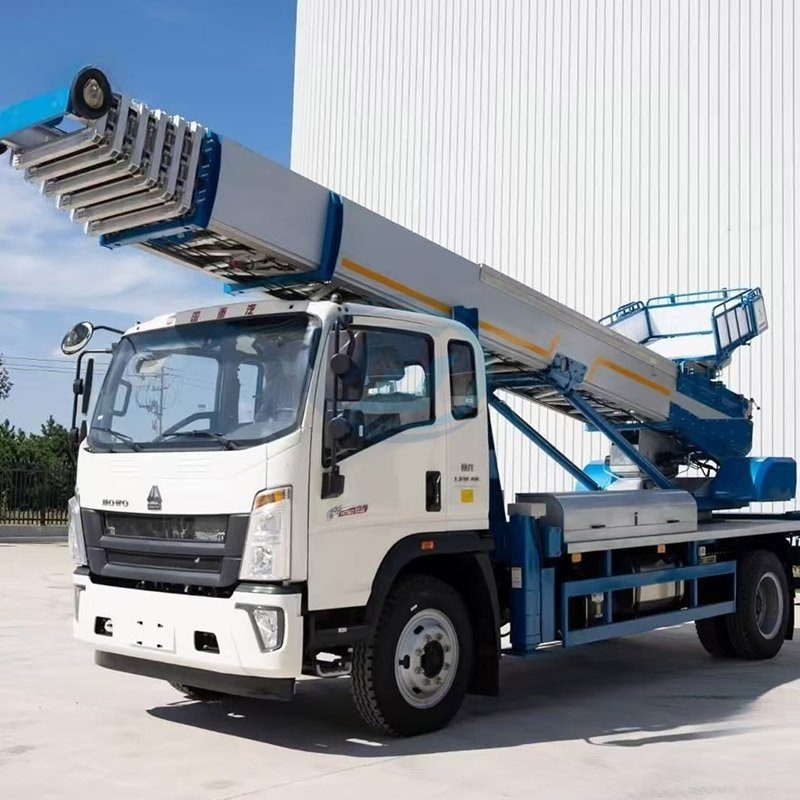

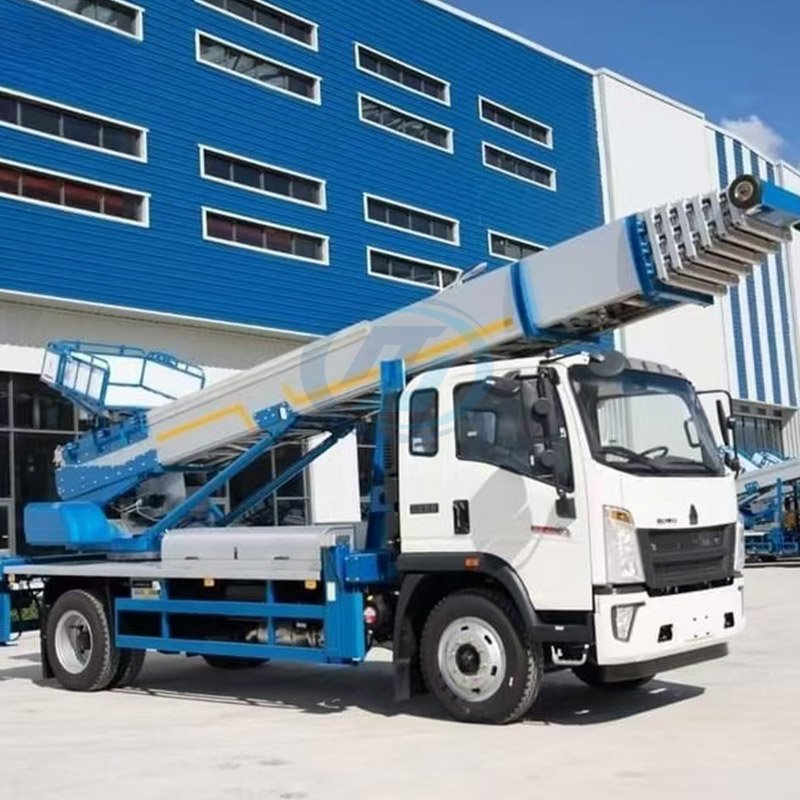

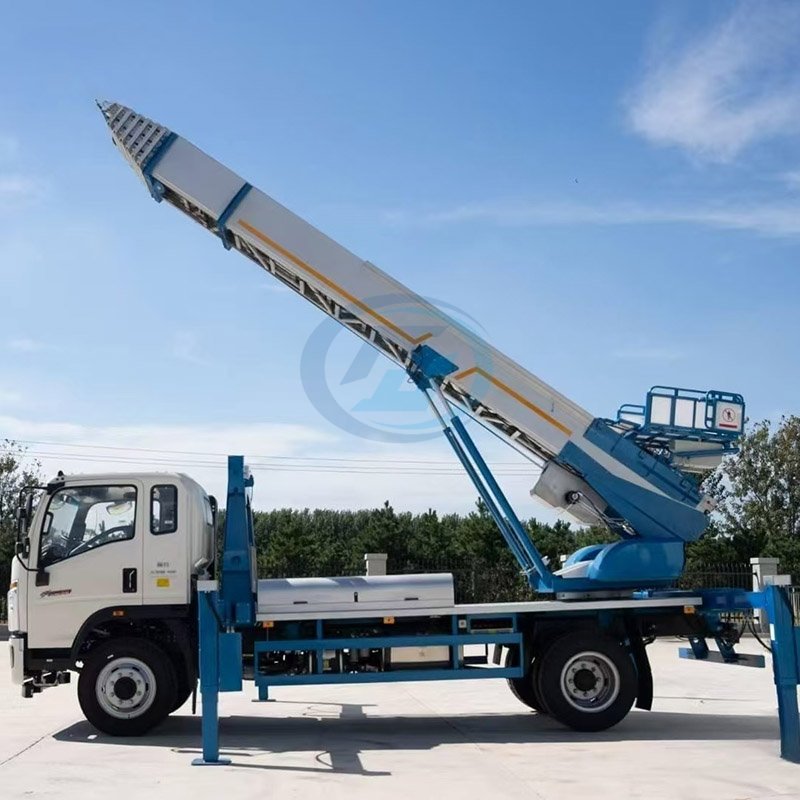

SINOTRUK HOWO 4X2 Light Ladder Lift Truck

Specification

Product Features

1. All Light Ladder Lift trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.

2.Ladder Structure: The light ladder lift truck is equipped with a lightweight yet durable aluminum alloy ladder, ensuring both portability and strength for various working conditions.

3. Classic engine: 116hp,140hp,160hp and 141hp for option ; with Euro ll, Ill, IV, V, VI emision standard;

4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 6/12 forwards and 2 reverses, synchronizer is optional as well.

5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.

7. Right Hand Drive Left Hand Drive Colors are optional.

8. Safety Features: Includes anti-slip steps, safety handrails, and a locking mechanism to ensure operator safety during operation.

9. Mobility: Equipped with heavy-duty casters (swivel and fixed) for easy maneuverability, with optional rubber or polyurethane wheels for different floor surfaces.

10. Platform Options: Available with a spacious work platform with anti-slip flooring and optional guardrails for added safety.

11. Foldable Design: Compact and foldable for easy storage and transportation, making it ideal for limited spaces.

12. Material Options: Ladder and platform materials include high-strength aluminum alloy or steel, with optional coatings for corrosion resistance.

13. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
