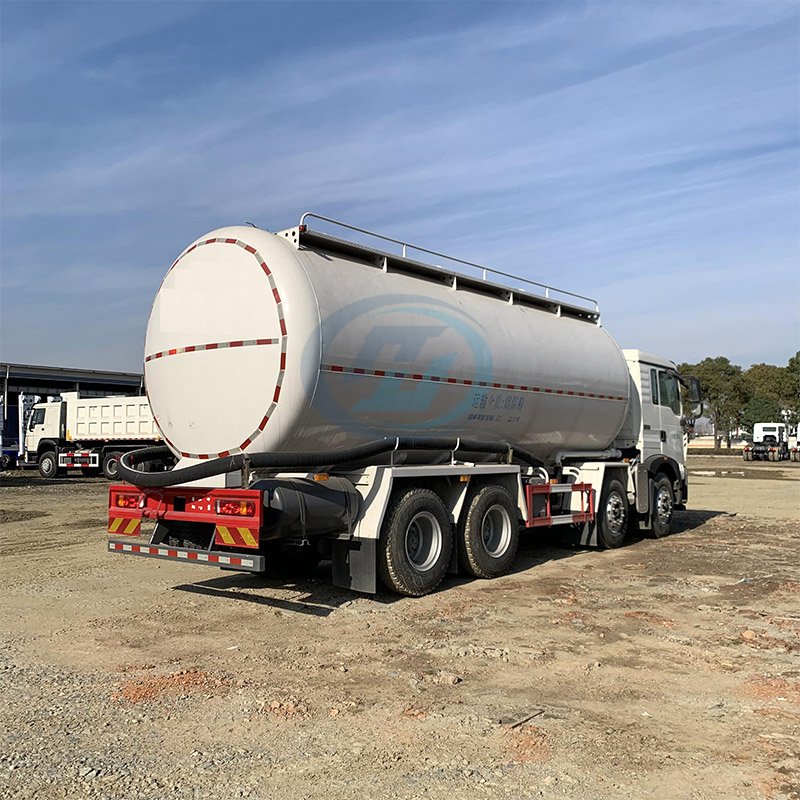

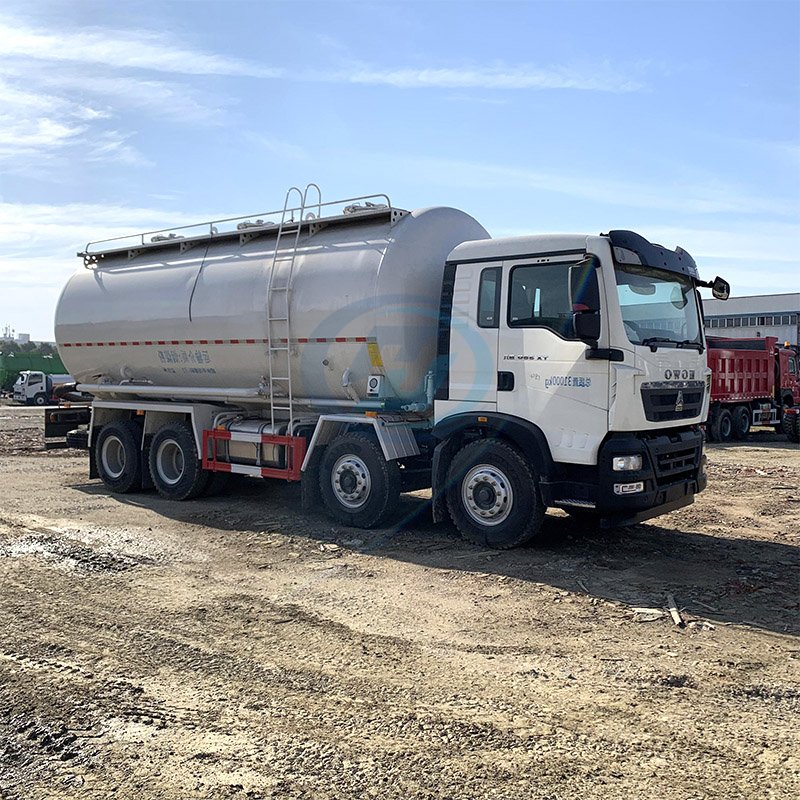

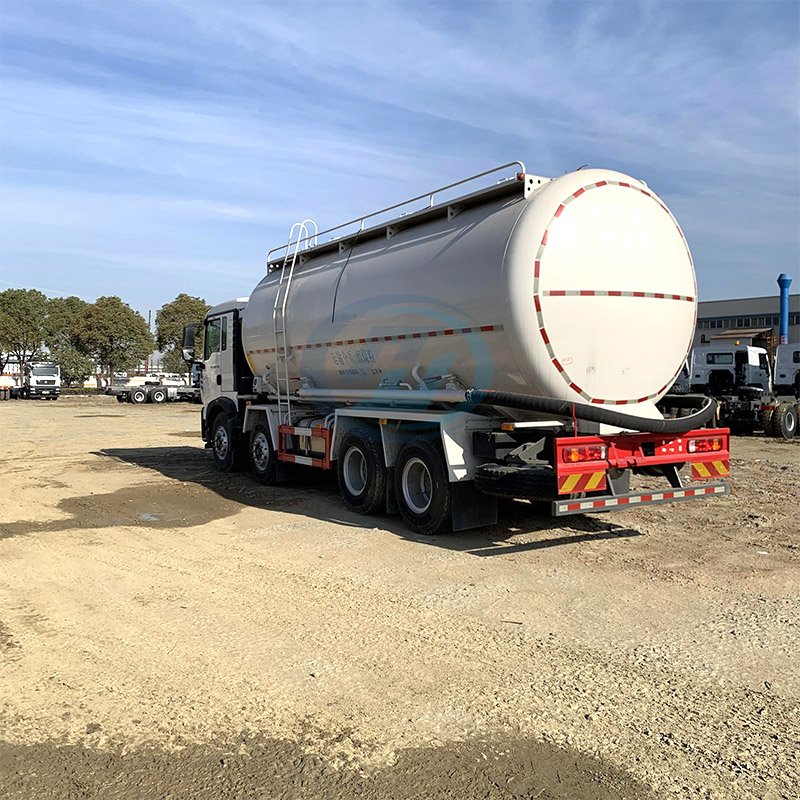

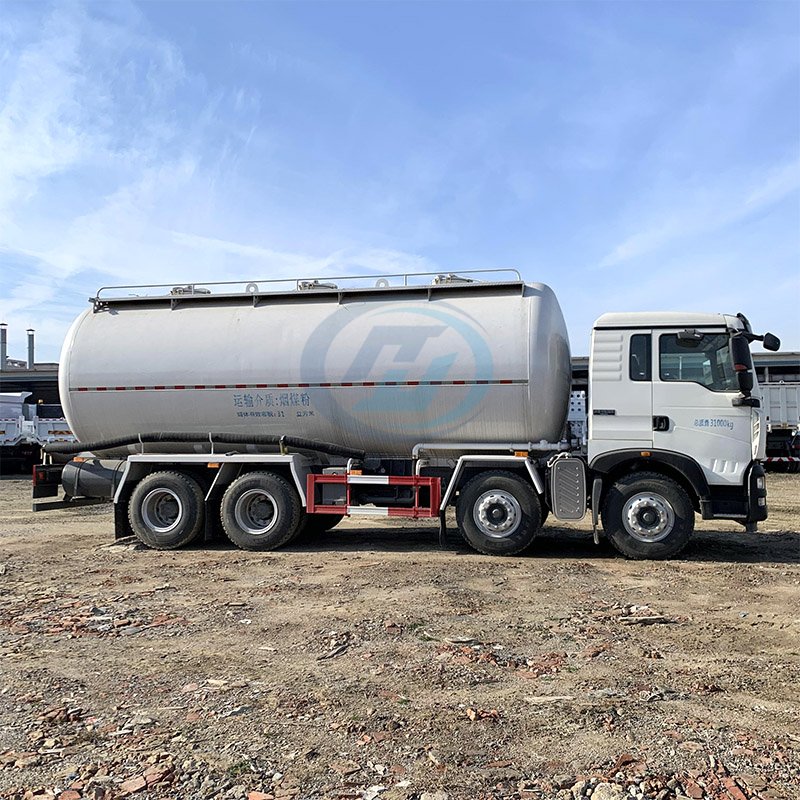

SINOTRUK HOWO-7 8X4 bulk cement transportation trucks are widely used for the efficient and reliable transport of bulk cement and powder materials. Due to their robust structure, high load capacity, and low fuel consumption, they are highly favored in regions such as Africa, Southeast Asia, and South America. The tank volume typically ranges from 10CBM to 40CBM, with a maximum load-bearing capacity of up to 50 tons. We can customize the tank dimensions, material thickness, and discharge system according to your specific requirements, ensuring optimal performance for your operations.
Specification
SINOTRUK HOWO-7 8X4 BULK CEMENT TRANSPORTATION TRUCK | |
Model | ZZ1317V4667B1 |
Cabin | HW76, long cabin, single sleeper, with air conditioner |
Engine | WP12.400E201, 400HP, Euro II Emission standard Option:WD614.47(371HP),WP10.380E22(380HP), WP10.340E22(340HP) |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 9500kg loading capacity |
Rear axle | 2*16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 315/80R22.5, 7 pcs (including one spare tire) Option:12.00R20,12.00R24,13.00R22.5 |
Fuel tank | 400L |
Cargo box volume | 10-40cbm |
Overall dimension | 10600*2550*3500 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. All bulk cement transportation trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
3. Classic engine: 371hp,380hp and 400hp for option ; with Euro ll, Ill, IV, V, VI emision standard;
4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.
5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
7. Right Hand Drive Left Hand Drive Colors are optional.
8. Pneumatic Unloading System: Equipped with a high-efficiency pneumatic system for quick and dust-free unloading of cement, ensuring minimal material loss and environmental compliance.
9. Dust Protection: Oil bath air inlet system to protect the engine from inhaling impure air in dusty working conditions, ensuring longevity and reliability.
10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
