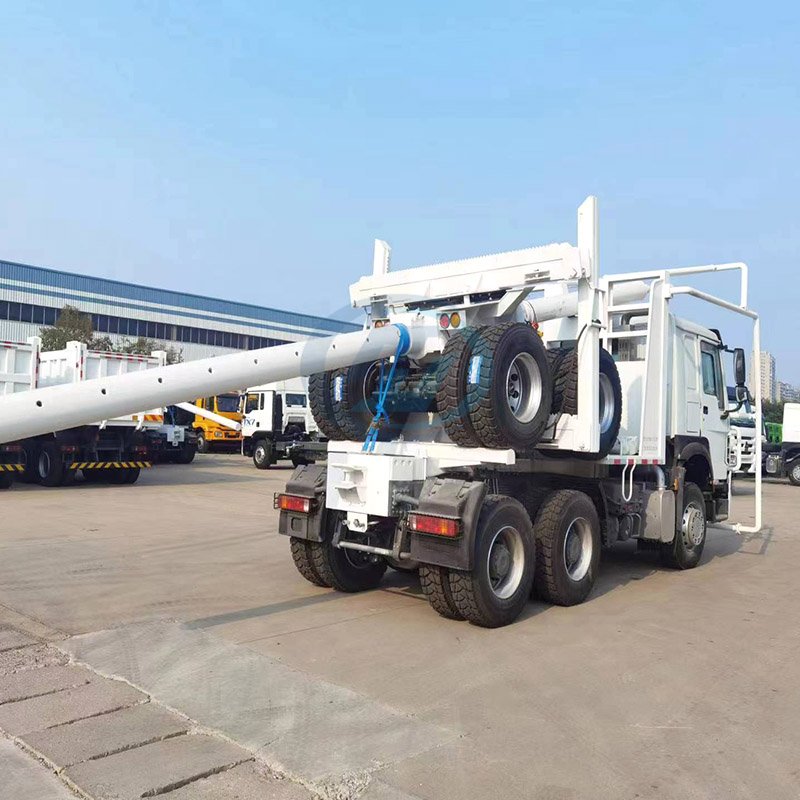

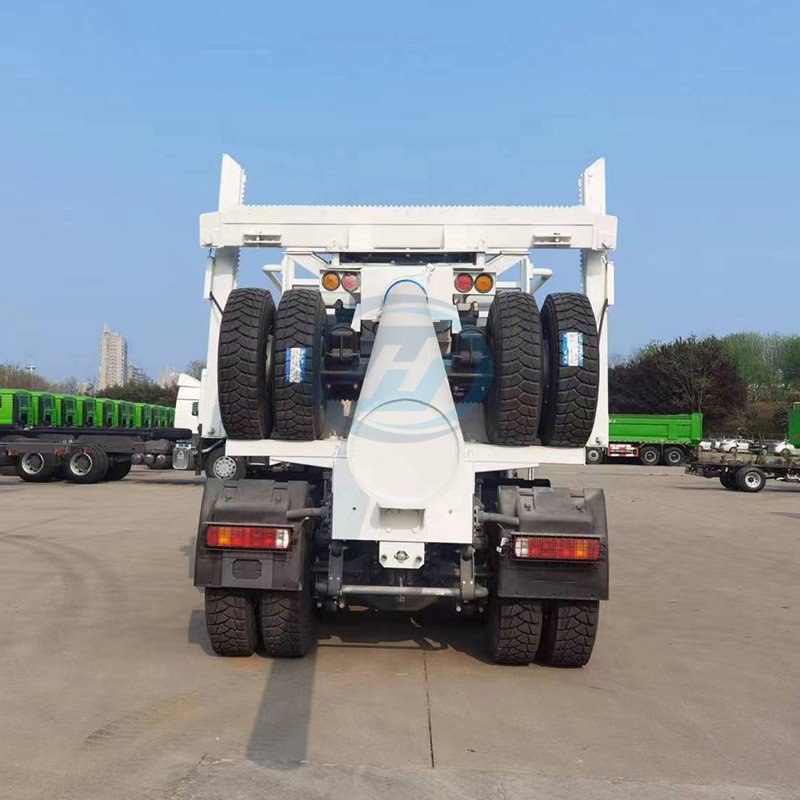

SINOTRUK HOWO-7 6X4 Log Transportation Trucks are widely used for the efficient hauling of timber and logs from forests to processing facilities. Due to their rugged design, high load capacity, and excellent off-road performance, they are widely used in forestry operations, particularly in regions with dense forests and challenging terrains, such as North America, Scandinavia, and Southeast Asia. The cargo bed length can range from 8 meters to 15 meters, and the maximum load-bearing capacity can reach up to 50 tons. We can customize the bed size, hydraulic loading systems, and chassis reinforcement according to your specific logging requirements.
Specification
SINOTRUK HOWO-7 6X4 LOG TRANSPORTATION TRUCK | |
Model | ZZ4257V3247B1 |
Cabin | HW76, long cabin, single sleeper, with air conditioner |
Engine | WP12.430E201, 400HP, Euro II Emission standard Option:WP10.380E22(380HP), WP12.400E201(400HP) |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 9500kg loading capacity |
Rear axle | 2*16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 315/80R22.5, 7 pcs (including one spare tire) Option:12.00R20,12.00R24,13.00R22.5 |
Fuel tank | 300L |
Cargo box | 5600*2300*1500mm, floor 8mm side plate 6mm, under body hydraulic lifting system |
Trailer Specification | Bracket (gun) size:8750x270x12. Inner width of gantry 2800, gantry pillar one section (lower dowel link, movable detachable), thickened design, front and rear gantry for rotary disc type, gantry beam with serrated. |
Fuwa 16-ton bridge, Fuwa single point suspension | |
Triangle 12.00R20-18 steel wire tire 8, reserve the spare tire installation position. | |
The plate thickness of the front baffle and working platform is 8mm, and the plate height of the front baffle is about 1500 (not higher than the rear window of the cab). | |
The gun rod connection hook is reinforced :(2 pieces of 20mm rear steel plate with hole in the middle and thick round steel pin connection). | |
Install the cab protection frame | |
Overall dimension | 12000x3200x4000mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. All Log Transportation Trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
3. Classic engine: 371hp,380hp,400hp and 430hp for option ; with Euro ll, Ill, IV, V, VI emision standard;
4:Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 10/12 forwards and 2 reverses, synchronizer is optional as well.
5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
7. Right Hand Drive Left Hand Drive Colors are optional.
8. Dust Protection: Oil bath air inlet system to protect the engine from inhaling impure air in dusty working conditions, ensuring longevity and reliability.
9. Lighting and Visibility: High-intensity LED work lights and reflective markings for improved visibility during night operations or in low-light conditions.
10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
