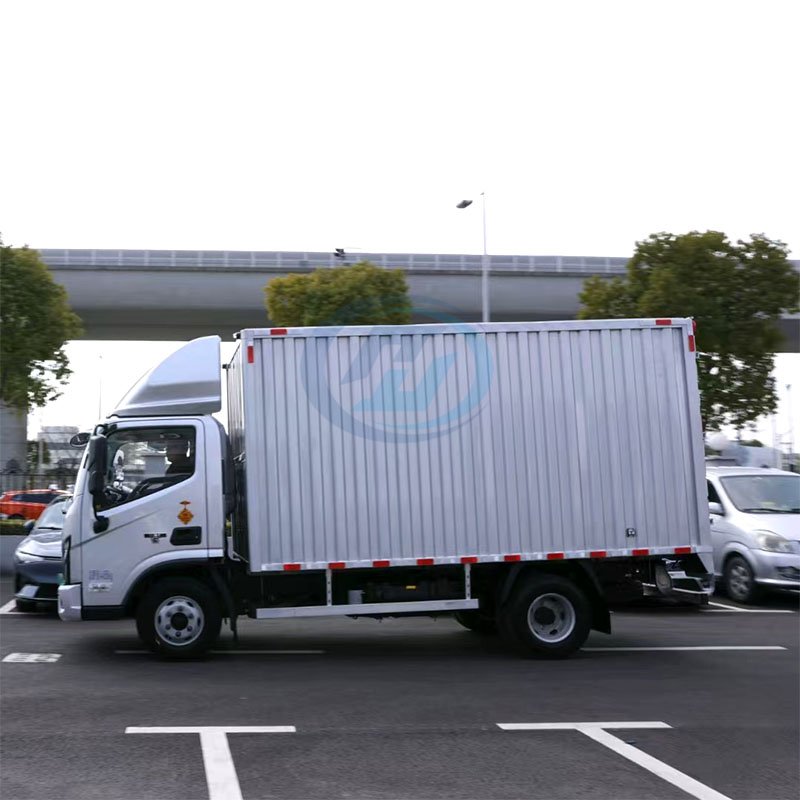

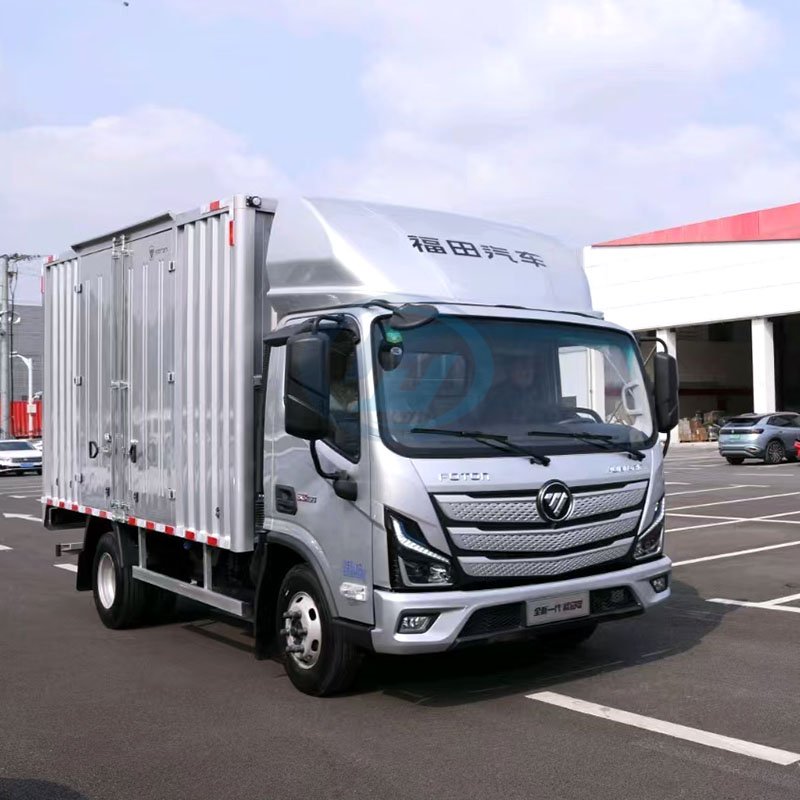

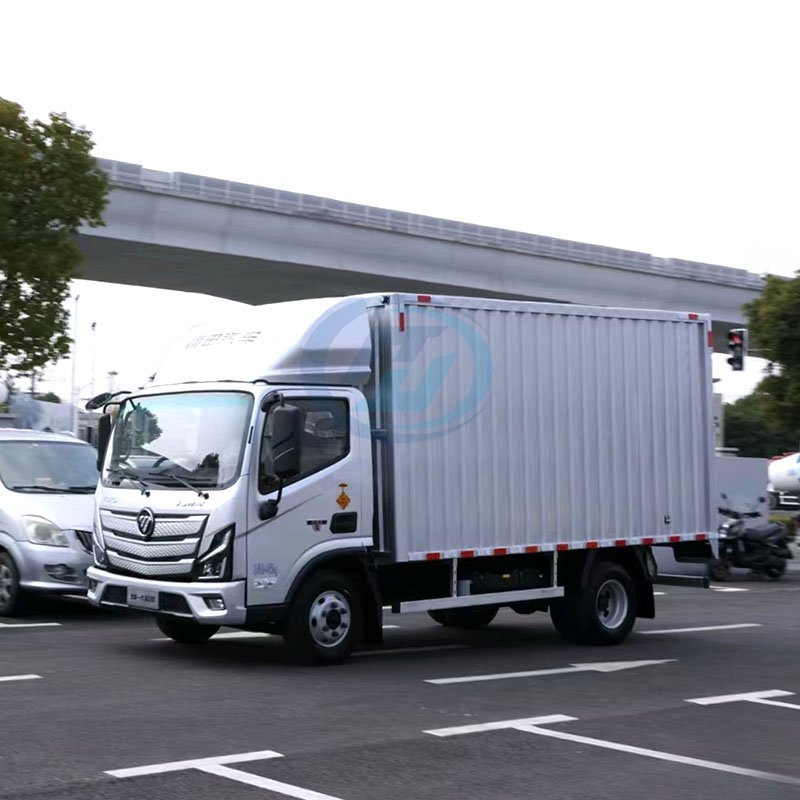

FOTON AUMARK 4X2 light van trucks are widely used in urban distribution, supermarket distribution, furniture and building materials transportation, and agricultural product transportation scenarios. Due to its sturdy and durable body structure, high load capacity, and low fuel consumption, it has been widely used in Africa, Southeast Asia, and South America. The volume of the cargo box is 23CBM-35CBM. The maximum load-bearing capacity can reach 15 tons, and we can customize the size and thickness of the cargo box according to your requirements.
Specification
FOTON 4X2 LIGHT VAN TRUCK | |
Model | BJ5143XXY-FA |
Cabin | Half floating roof cab with 3 seats |
Engine | YC4S160-50, 160HP, EuroⅤ Emission standard Option:YC4S140-50,(140HP), YC4S130-50(130HP) |
Transmission | 8JS75TE, manual, 8 F & 2 R |
Front axle | 4855kg loading capacity |
Rear axle | 9200kg loading capacity |
Number of spring plates | 8/10+6 |
Tire | 8.25R20 16PR, 6 pcs Option:8.25R16, 215/75R16, 235/75R16 |
Fuel tank | 80-120L |
Cargo box | 5800*2300*2400mm, floor 3mm side plate 1.5mm |
Overall dimension | 7450*2400*3570 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
2. Gearbox/Transmission: DONGAN brand, derived from Fuller gearbox, manual operation (MT), 5/6/8 forwards and 1/2 reverses.
3. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
4. Reliable truck performance: It is built on the mature chassis of heavy trucks and light trucks, with stable chassis quality and moderate load-bearing capacity, and can adapt to various urban roads. Its power system ensures smooth driving of vehicles in the city, whether on flat roads or roads with certain slopes, providing a reliable mobile platform for advertising display.
5. Right Hand Drive Left Hand Drive Colors are optional.
6. Reliable vehicle performance: It is built on the mature chassis of heavy trucks and light trucks, with stable chassis quality and moderate load-bearing capacity, and can adapt to various urban roads. Its power system ensures smooth driving of vehicles in the city, whether on flat roads or roads with certain slopes, providing a reliable mobile platform for advertising display.
7. Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, manganese steel.
8. Tyres: China famous tyre brand. TRIANGE, QIANJIN are mostly used.
