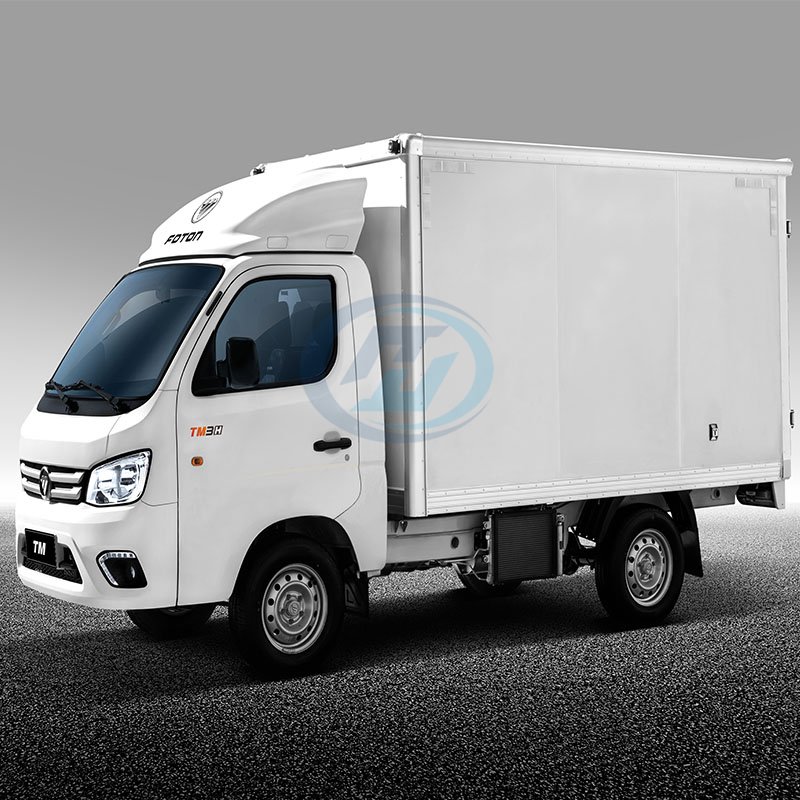

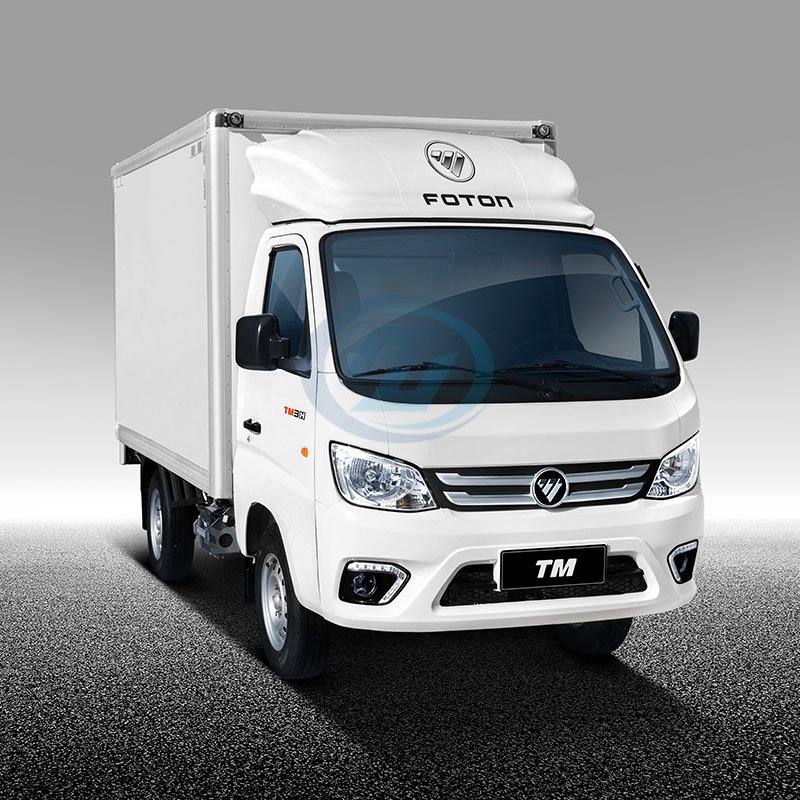

FOTON TM mini van truck

Van Truck

Product Details

FOTON TM MINI van trucks are widely used in urban distribution, supermarket distribution, furniture and building materials transportation, and agricultural product transportation scenarios. Due to its sturdy and durable body structure, high load capacity, and low fuel consumption, it has been widely used in Africa, Southeast Asia, and South America. The volume of the cargo box is 23CBM-35CBM. The maximum load-bearing capacity can reach 15 tons, and we can customize the size and thickness of the cargo box according to your requirements.

Inquiry now Join Inquiry Car

PRODUCT DETAILS

Specification

FOTON TM MINI VAN TRUCK
Model	BJ5032XXY5JV5-11
Cabin	1650mm, 2 seats, with air conditioner
Engine	Dongan 115hp, Euro IV Emission standard Option：DAM15KR 115hp,(115HP), ISU ZU 120hp(120HP)
Transmission	DAT18R, manual, 5 F & 1 R
Front axle	1250kg loading capacity
Rear axle	2080kg loading capacity
Wheelbase	2850mm
Tire	185R14LT 6PR, 6 pcs Option: 185R14LT 8PR, 175/70R14LT 6PR
Fuel Type	Gasoline
Cargo box	33001710mm1700mm , floor 3mm side plate 1.5mm
Overall dimension	522018502625mm
Color	White, Yellow

Product Features

1. All van trucks are equipped with high tensile steel leaf springs suspension and reinforced chassis.

2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.

3. Gearbox/Transmission: DONGAN brand, derived from Fuller gearbox, manual operation (MT), 5/6/8 forwards and 1/2 reverses.

4. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.

5. Right Hand Drive Left Hand Drive Colors are optional.

6. Reliable vehicle performance: It is built on the mature chassis of heavy trucks and light trucks, with stable chassis quality and moderate load-bearing capacity, and can adapt to various urban roads. Its power system ensures smooth driving of vehicles in the city, whether on flat roads or roads with certain slopes, providing a reliable mobile platform for advertising display..

7. Cargo Body: Customized according to different purposes, thickness of side walls can be thickened and thinned, reinforced; anti-abrasive material steel, high tensile steel, manganese steel.

8. Tyres: China famous tyre brand. TRIANGE, QIANJIN are mostly used.
