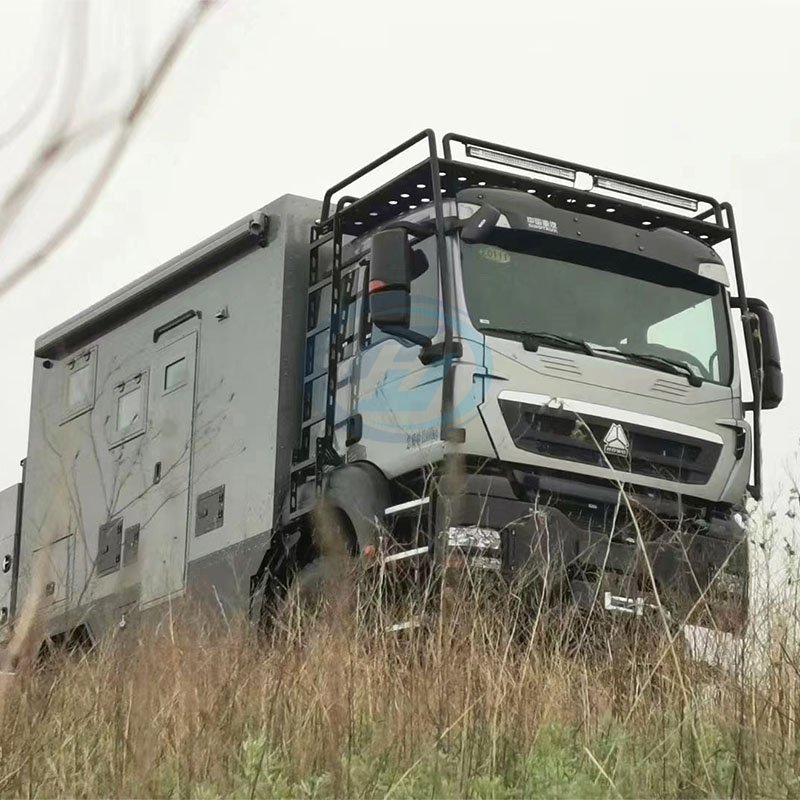

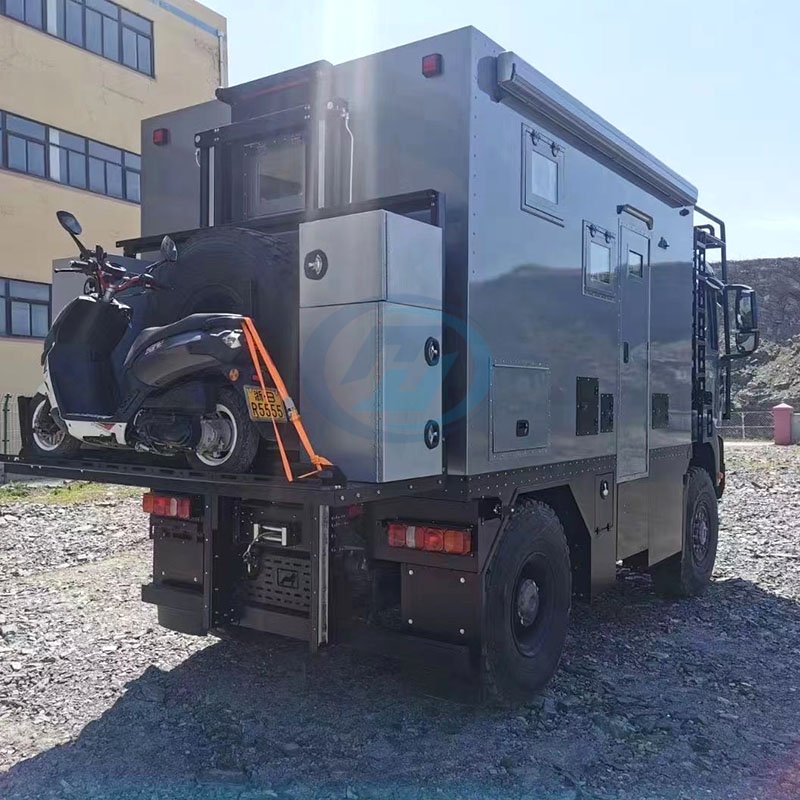

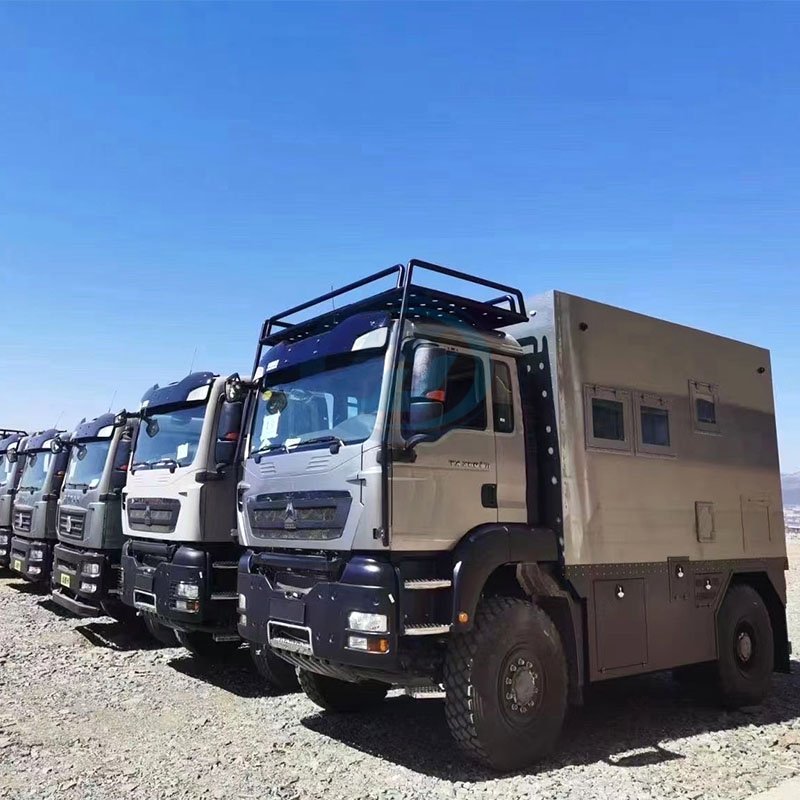

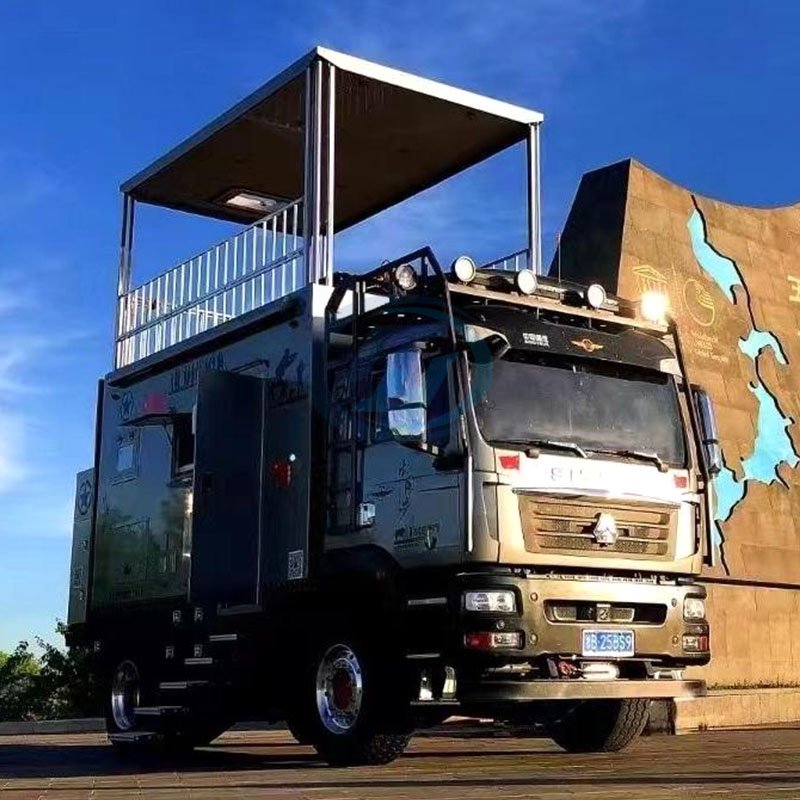

SINOTRUK HOWO TX 4X4 RV trucks are widely used for long-distance self driving tourism and as an outdoor resting place. Due to its sturdy structure, high load-bearing capacity, and low fuel consumption, it is widely used in Central and South Asia, Africa, Southeast Asia, and South America. The interior of the RV includes various aspects such as living facilities, furniture, appliances, kitchen and bathroom supplies, as well as safety and monitoring equipment. The maximum load-bearing capacity can reach 25 tons, and we can design the interior design and installation equipment according to customer preferences.
Specification
SINOTRUK HOWO TX 4X4 RV TRUCK | |
Model | ZZ2167N382GB1 |
Cabin | HOWO TX, driver’s air seat, 1 sleeper, with air conditioner |
Engine | WP10.300E22, 300HP, Euro II Emission standard Option: WP10.340E22(340HP), WP10.380E22(380HP) |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 7100kg loading capacity |
Rear axle | 16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 315/80R22.5, 7 pcs (including one spare tire) Option:12.00R20,295/80R22.5,12R22.5 |
Fuel tank | 400L |
Cargo body | High strength aluminum alloy frame box, Strength carbon steel unstressed subframe, Aluminum alloy skin insulation material |
Overall dimension | 8700*2550*3995 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. Service first, including private customization services, as well as comprehensive product consulting and design services.
2. All RV trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
3. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
4. Classic engine: 340hp, 371, 380hp and 400hp for option ; with Euro ll, Ill, IV, V, VI emision standard;
5. Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 9/10/12 forwards and 1/2 reverses, synchronizer is optional as well.
6. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
7. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
8. Fully equipped: equipped with comprehensive living facilities, such as large capacity water storage equipment, including clean water tanks, grey water tanks, and black water tanks, which can meet the water needs of multiple people for multiple days. A kitchen with diverse functions, including stoves, microwaves, refrigerators, and other equipment, making it convenient to cook various foods in the truck.
9. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
