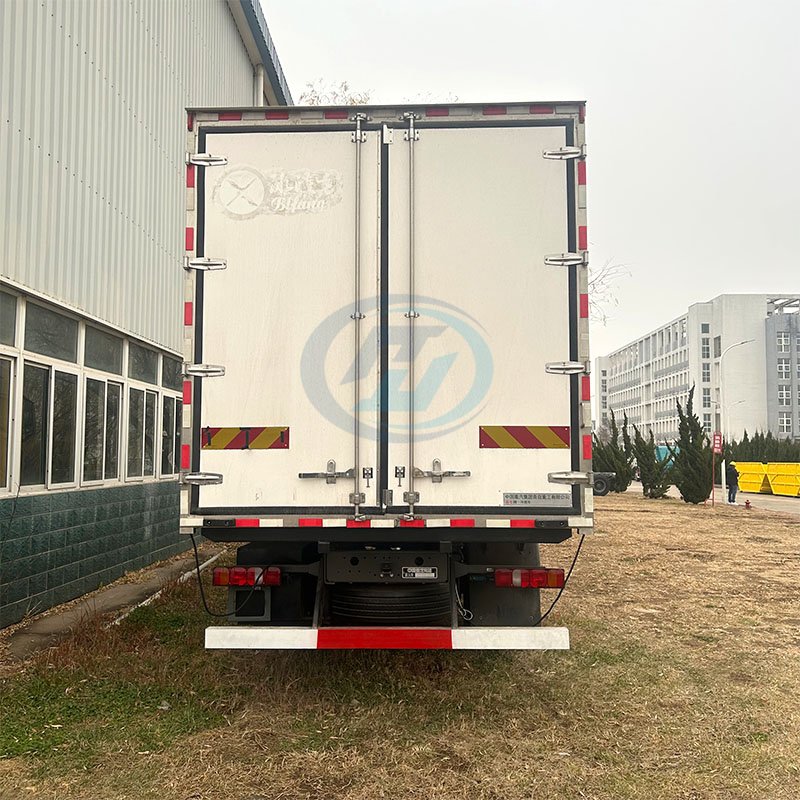

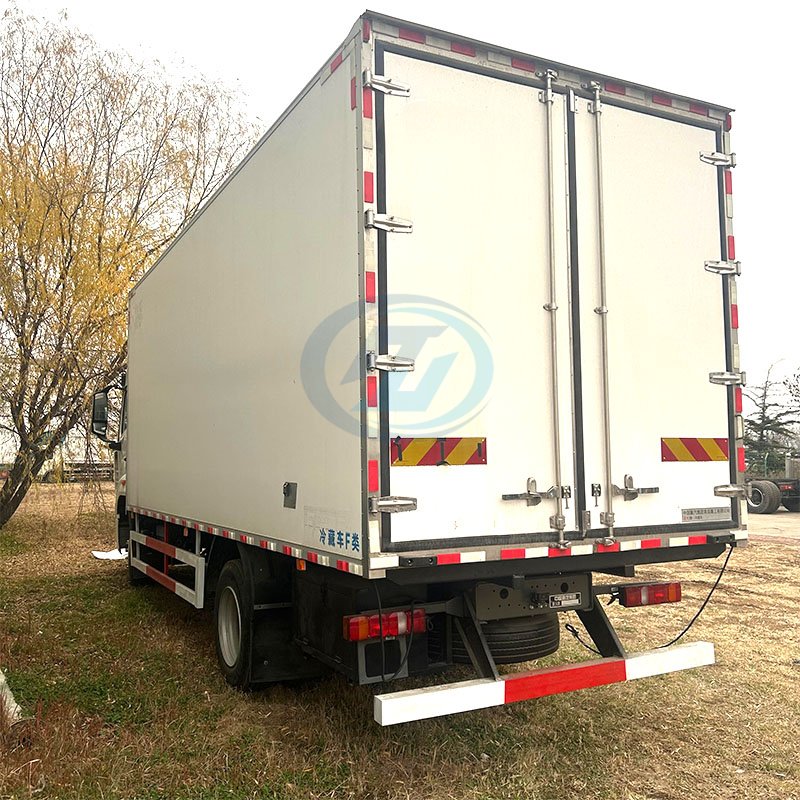

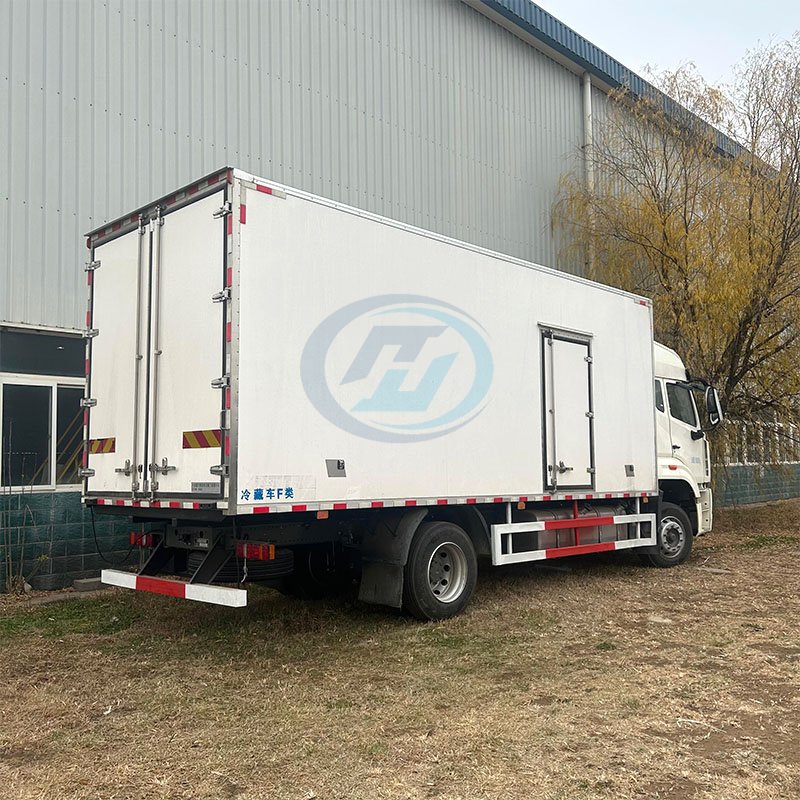

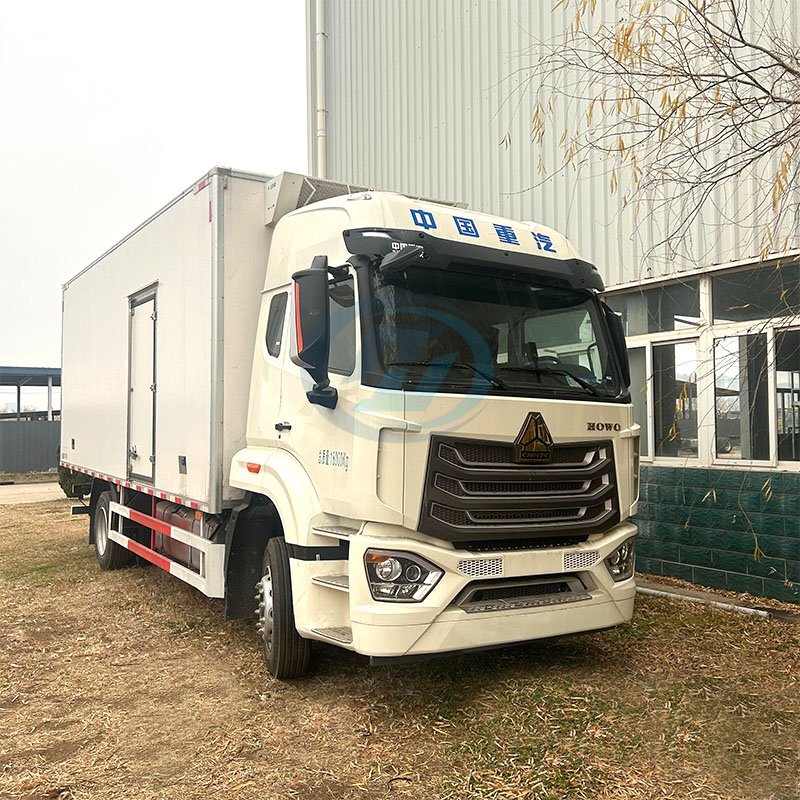

SINOTRUK HOWO NX 4X2 van trucks are widely used in urban distribution, express delivery, agricultural product transportation, and construction material transportation fields. Due to its sturdy structure, high load-bearing capacity, and low fuel consumption, it is widely used in Central and South Asia, Africa, Southeast Asia, and South America. The volume of the cargo box is 25-30CBM. The maximum load-bearing capacity can reach 20 tons, and we can customize the size and steel plate thickness of the cargo box according to your requirements.
Specification
SINOTRUK HOWO-NX 4X2 CARGO VAN TRUCK | |
Model | ZZ1187N511JB1 |
Cabin | H78L, driver’s air seat, 2 sleepers, with air conditioner |
Engine | WP10.300E22, 300HP, Euro II Emission standard Option: WP10.340E22(340HP), WP10.380E22(380HP) |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 7100kg loading capacity |
Rear axle | 16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 315/80R22.5, 7 pcs (including one spare tire) Option:12.00R20,295/80R22.5,12R22.5 |
Fuel tank | 400L |
Cargo box | 5800*2300*2300mm, bottom 3, side 1.5mm |
Overall dimension | 9200*2550*3995 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. Service first, including private customization services, as well as comprehensive product consulting and design services.
2. All cargo van trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
3. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
4. Classic engine: 340hp, 380hp and 400hp for option ; with Euro ll, Ill, IV, V, VI emision standard.
5. Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 9/10/12 forwards and 1/2 reverses, synchronizer is optional as well.
6. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
7. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
8. Large capacity compartment: The compartment has a large space and can provide sufficient cargo capacity. The loading method can be arranged reasonably according to the needs of different goods, such as volume, shape, etc., such as transporting large wind turbine blades, engineering machinery components, etc., all of which have sufficient space for placement.
9. Strong power: Equipped with a high-performance engine, it has high output power and torque. In situations such as climbing hills, starting with heavy loads, or driving on highways, the vehicle has ample power to ensure good speed and timely delivery of goods to the destination.
10. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
