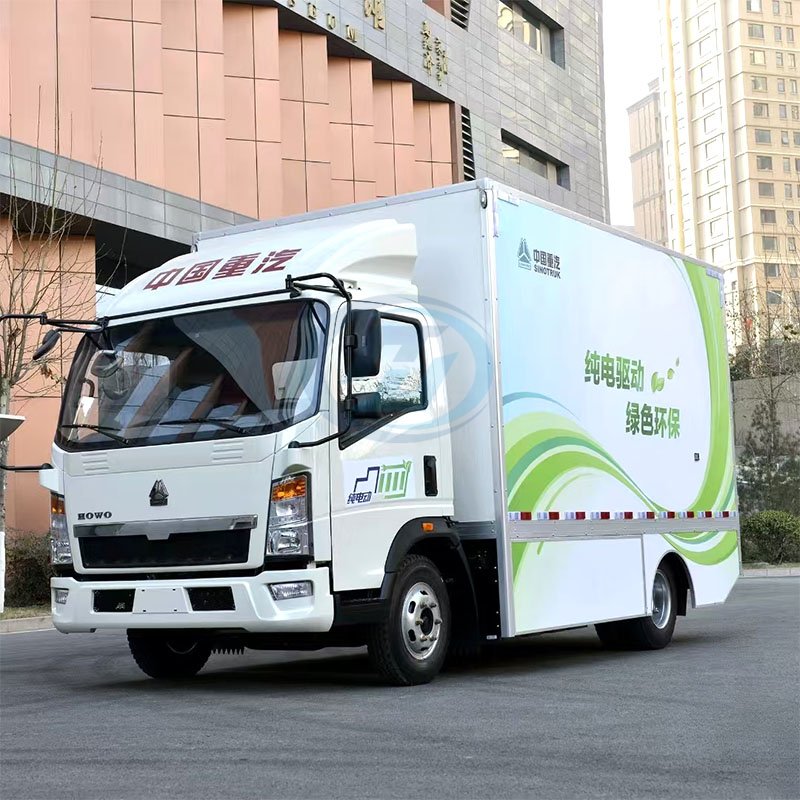

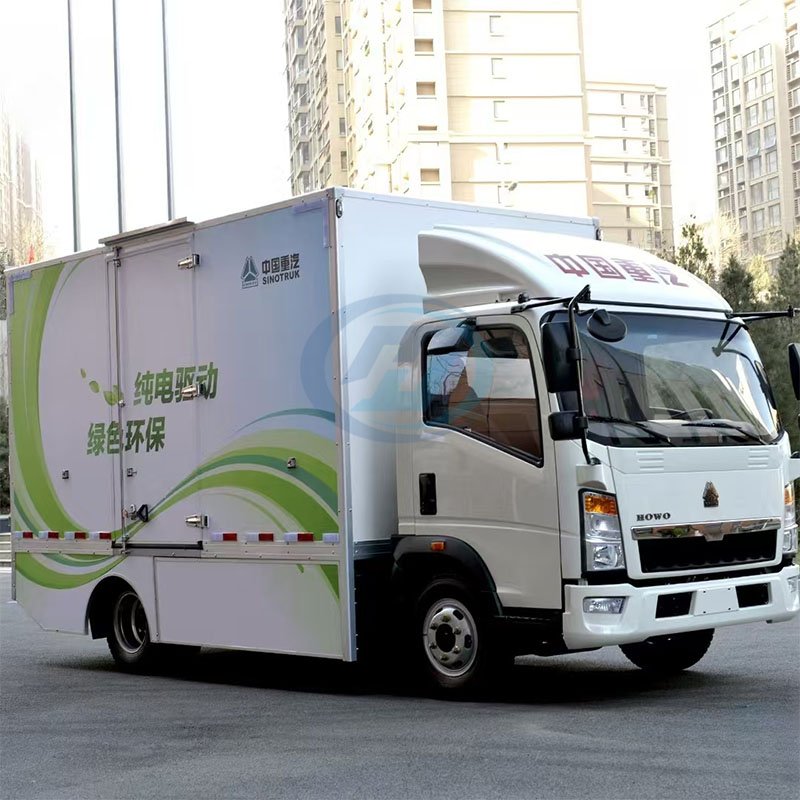

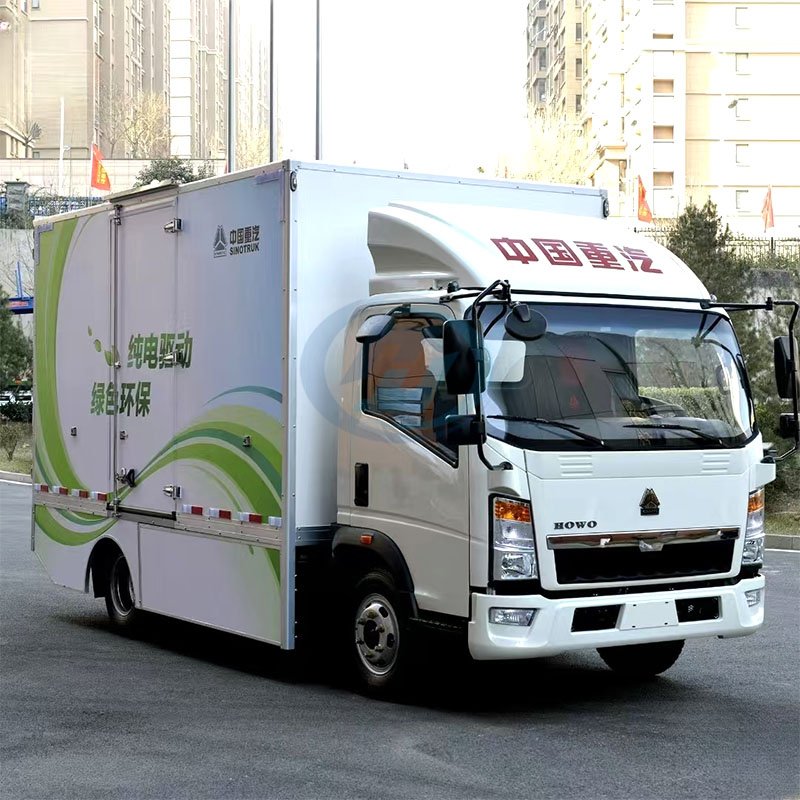

SINOTRUK HOWO 4X2 light electric van trucks are widely used in urban logistics distribution, port transportation, and environmental sanitation cleaning scenarios. It is widely used in Central and South Asia, Africa, Southeast Asia, and South America. The volume of the cargo box is 13CBM-35CBM. The maximum load-bearing capacity can reach 15 tons, and we can customize the size and steel plate thickness of the cargo box according to your requirements.
Specification
SINOTRUK HOWO 4X2 LIGHT ELECTRIC VAN TRUCK | |
Model | ZZ5047 XXYH 3414Z147 BEV96 |
Cabin | 1880mm, 2 seats, with air conditioner, with air deflector |
Battery | CATL lithium iron phos-phate battery Option:Fudi lithium iron phos-phate blade battery |
Transmission | WLY6TS55C, manual, 6 F & 1 R |
Front axle | 2400kg loading capacity |
Rear axle | 42000kg loading capacity |
Steering | SINOTRUK brand |
Tire | 7.50R16, 7 pcs (including one spare tire) Option: 8.25R16, 8.25R20, 7.00R16 |
Power | 96.26kWh |
Cargo box | 4165*2300*2300mm, bottom 3mm sides 1.5mm, side double door, rear double door |
Overall dimension | 6000*2450*3500mm |
Color | White, Yellow |
Product Features
1. Power performance: Equipped with electric motors independently developed by SINOTRUK, such as TZ230XS-ZQRM140V11 permanent magnet synchronous motor, the maximum power can reach 140kW, and the power is strong. It can easily handle heavy load starting and climbing, accelerate rapidly, and meet the needs of different working conditions such as urban distribution and intercity transportation.
2. All electric van trucks are equipped with high tensile steel leaf springs suspension and reinforced chassis.
3. Large capacity cargo compartment: The compartment has a large space and can provide sufficient cargo capacity. The loading method can be arranged reasonably according to the needs of different goods, such as volume, shape, etc., such as transporting large wind turbine blades, engineering machinery components, etc., all of which have sufficient space for placement.
4. Good durability: Key components of the vehicle, such as the engine, transmission, and axles, have undergone rigorous durability testing. The quality of the vehicle's components is reliable and can adapt to complex road conditions and long-term, high-intensity transportation work, reducing the frequency of fault repairs.
5. Gearbox/Transmission: WLY brand, derived from Fuller gearbox, manual operation (MT), 5/6 forwards and 1 reverses.
6. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
7. Multiple engine brands and horsepower options are available, including YUNNEI, YUCHAI and CUMMINS engines with 116 HP, 115 HP, 130 HP, 140 HP, 160 HP, and more.
8. Tyres: Vacuum tires and radial tires are available for selection. China famous tyre brand, is mostly used.
