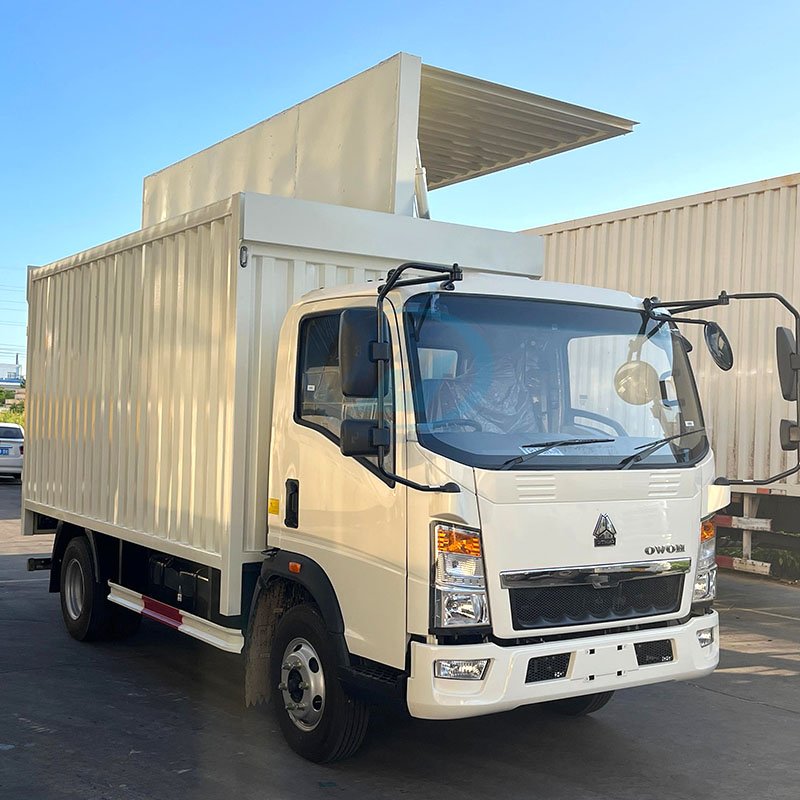

SINOTRUK light 4X2 mobile workshop trucks is a truck designed for on-site service and maintenance. It is equipped with various tools, equipment, and often spare parts, enabling technicians to perform repairs and services at the location where the vehicle breaks down, instead of transporting the vehicle to a workshop. It is widely used in Central and South Asia, Africa, Southeast Asia, and South America. The volume of the cargo box is 13CBM-35CBM. The maximum load-bearing capacity can reach 15 tons, and we can customize the size and steel plate thickness of the cargo box according to your requirements.
Specification
SINOTRUK HOWO 4X2 LIGHT MOBILE WORKSHOP TRUCK | |
Model | ZZ1047D3414C1R45 |
Cabin | 1880mm, 2 seats, with air conditioner |
Engine | YN4102QBZL, 116HP, Euro III Emission standard Option:YC4E160-33,(160HP), YC4E140-33(140HP) |
Transmission | WLY6TS55C, manual, 6 F & 1 R |
Front axle | 2400kg loading capacity |
Rear axle | 4200kg loading capacity |
Steering | SINOTRUK brand |
Tire | 7.50R16, 7 pcs (including one spare tire) Option: 8.25R16, 8.25R20, 7.00R16 |
Fuel tank | 120L |
Cargo box | 4165*2300*2300mm, with items like crane, wall fan, exciter lamp, acetylene cylinder ect |
Overall dimension | 6000*2450*3500mm |
Color | White, Yellow |
Product Features
1. Mobility: The light mobile workshop truck is designed for easy maneuverability and access to hard-to-reach areas.

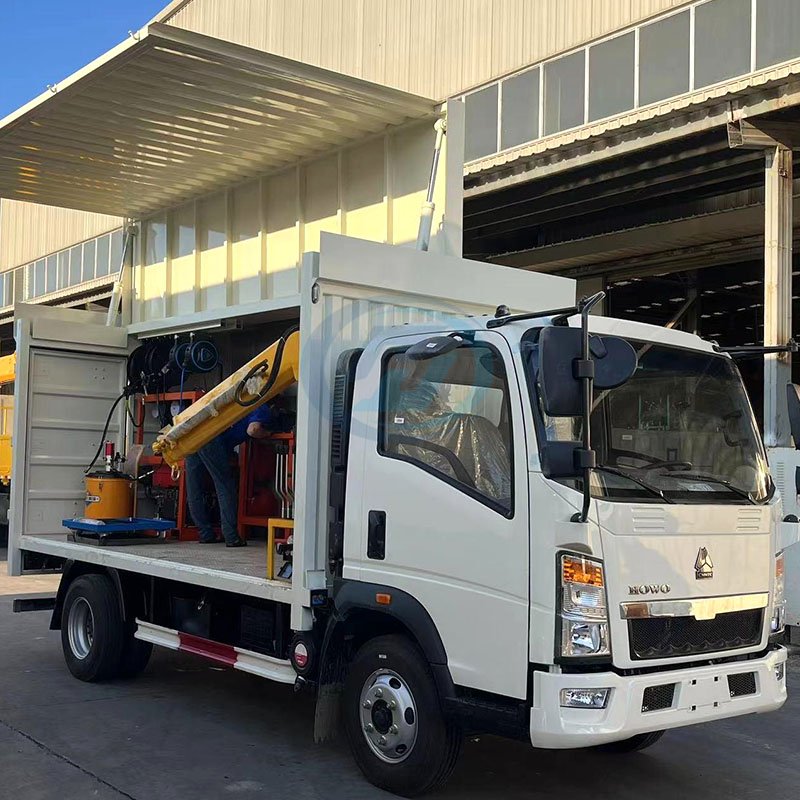

2. Workshop Facilities: These trucks are typically equipped with a range of tools and equipment necessary for on-site repairs, including workbenches, storage compartments, power supply units (generators), air compressors, and specialized tools.
3. All light mobile workshop trucks are equipped with high tensile steel leaf springs suspension and reinforced chassis.
4. Large capacity cargo compartment: The compartment has a large space and can provide sufficient cargo capacity. The loading method can be arranged reasonably according to the needs of different goods, such as volume, shape, etc., such as transporting large wind turbine blades, engineering machinery components, etc., all of which have sufficient space for placement.
5. Good durability: Key components of the vehicle, such as the engine, transmission, and axles, have undergone rigorous durability testing. The quality of the vehicle's components is reliable and can adapt to complex road conditions and long-term, high-intensity transportation work, reducing the frequency of fault repairs.
6. Gearbox/Transmission: WLY brand, derived from Fuller gearbox, manual operation (MT), 5/6 forwards and 1 reverses.
7. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
8. Multiple engine brands and horsepower options are available, including YUNNEI, YUCHAI and CUMMINS engines with 116 HP, 115 HP, 130 HP, 140 HP, 160 HP, and more.
9. Tyres: Vacuum tires and radial tires are available for selection. China famous tyre brand, is mostly used.
