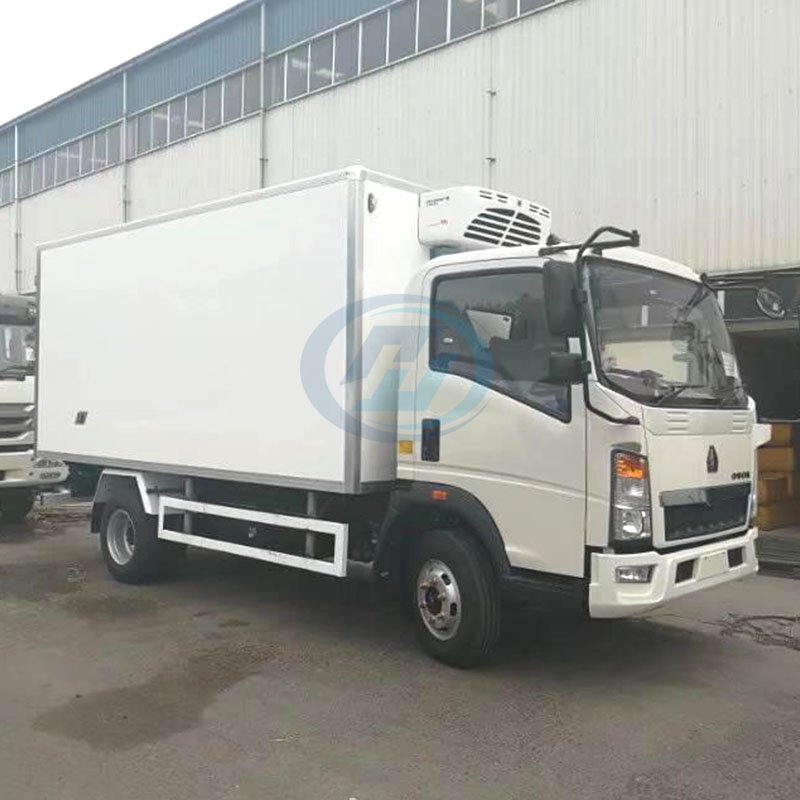

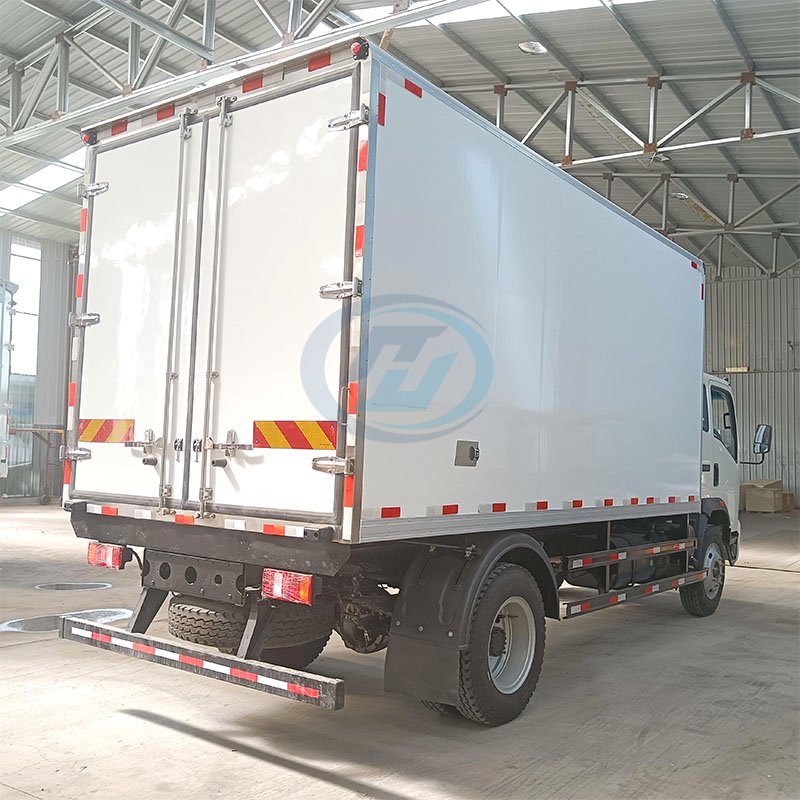

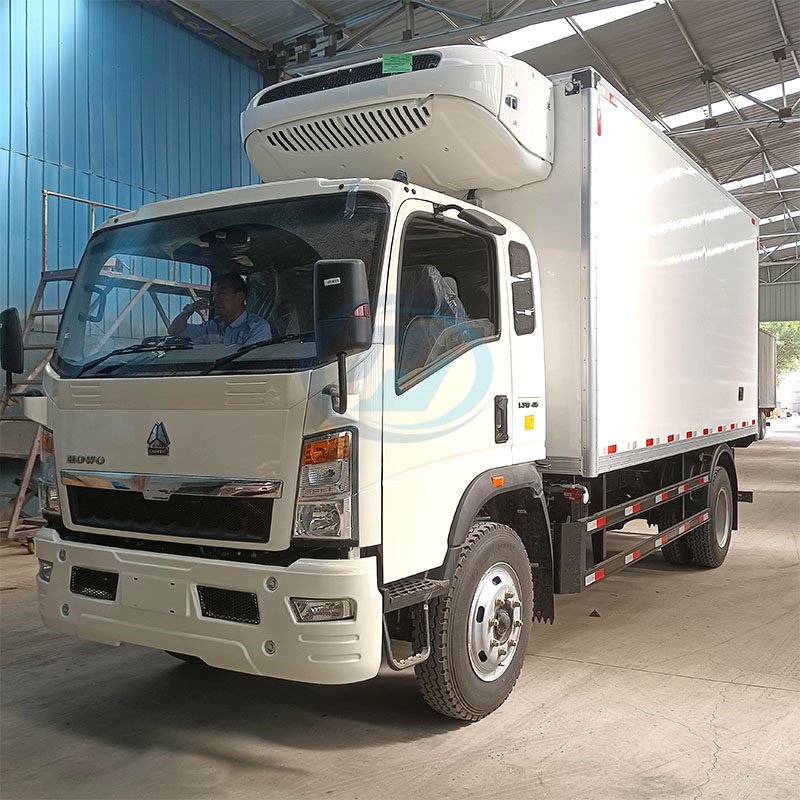

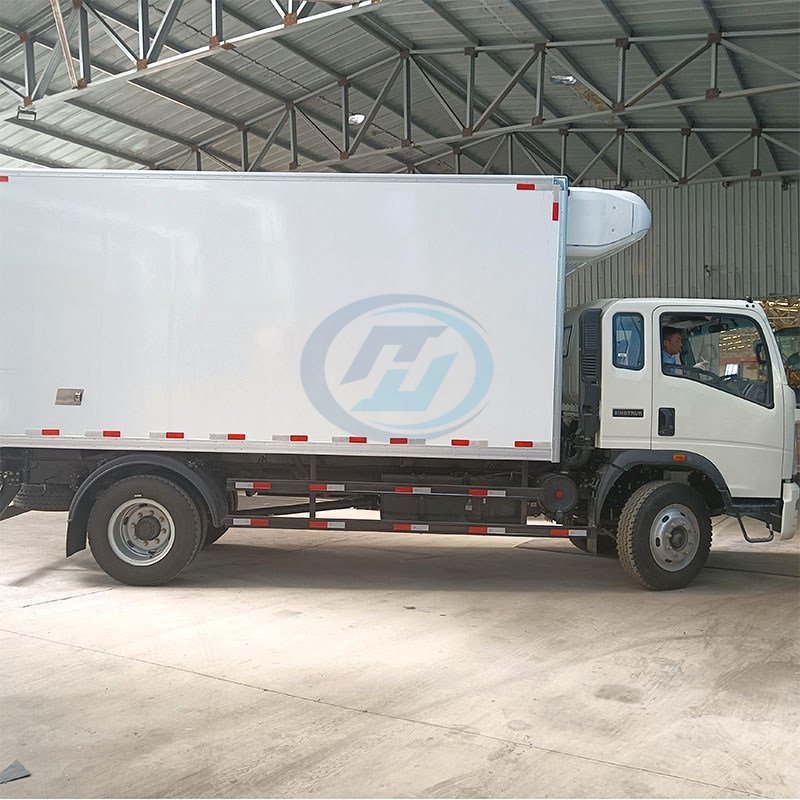

SINOTRUK HOWO 4X2 light refrigerator trucks are widely used in the food industry, pharmaceutical industry, and chemical industry transportation. Due to its sturdy structure, high load-bearing capacity, and low fuel consumption, it is widely used in Central and South Asia, Africa, Southeast Asia, and South America. The volume of the cargo box is 13CBM-35CBM. The maximum load-bearing capacity can reach 15 tons, and we can customize the size and steel plate thickness of the cargo box according to your requirements.
Specification
SINOTRUK HOWO 4X2 LIGHT REFRIGERATOR TRUCK | |
Model | ZZ1047D3414C145 |
Cabin | 1880mm, 2 seats, with air conditioner |
Engine | YN4102QBZL, 116HP, Euro III Emission standard Option:YC4E160-33,(160HP), YC4E140-33(140HP) |
Transmission | WLY6TS55C, manual, 6 F & 1 R |
Front axle | 2400kg loading capacity |
Rear axle | 4200kg loading capacity |
Steering | SINOTRUK brand |
Tire | 7.50R16, 7 pcs (including one spare tire) Option: 8.25R16, 8.25R20, 7.00R16 |
Fuel tank | 120L |
Cargo box | 4165*2300*2300mm, top 105mm, side 80mm, with Thermo King refrigerator |
Overall dimension | 6000*2450*3500mm |
Color | White, Yellow |
Product Features
1. Refrigeration Unit: Equipped with a high-efficiency refrigeration system that can maintain low temperatures suitable for transporting food items, pharmaceuticals, and other temperature-sensitive products. Options may include different types of refrigeration units (e.g., direct-drive systems or standby systems).
2. Cargo Box Design: The cargo area is typically insulated with materials like polyurethane foam to minimize heat transfer. The interior is designed for easy cleaning and may have features such as drainage holes to facilitate sanitation.
3. Engine Performance: Usually equipped with efficient engines that provide adequate power while still prioritizing fuel economy. Compliance with emissions standards depending on the market (Euro II III IV/V/VII options available).
4. All light refrigerator trucks are equipped with high tensile steel leaf springs suspension and reinforced chassis.
5. Large capacity cargo compartment: The compartment has a large space and can provide sufficient cargo capacity. The loading method can be arranged reasonably according to the needs of different goods, such as volume, shape, etc., such as transporting large wind turbine blades, engineering machinery components, etc., all of which have sufficient space for placement.
6. Good durability: Key components of the vehicle, such as the engine, transmission, and axles, have undergone rigorous durability testing. The quality of the vehicle's components is reliable and can adapt to complex road conditions and long-term, high-intensity transportation work, reducing the frequency of fault repairs.
7. Gearbox/Transmission: WLY brand, derived from Fuller gearbox, manual operation (MT), 5/6 forwards and 1 reverses.
8. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
9. Multiple engine brands and horsepower options are available, including YUNNEI, YUCHAI and CUMMINS engines with 116 HP, 115 HP, 130 HP, 140 HP, 160 HP, and more.
10. Tyres: Vacuum tires and radial tires are available for selection. China famous tyre brand, is mostly used.
