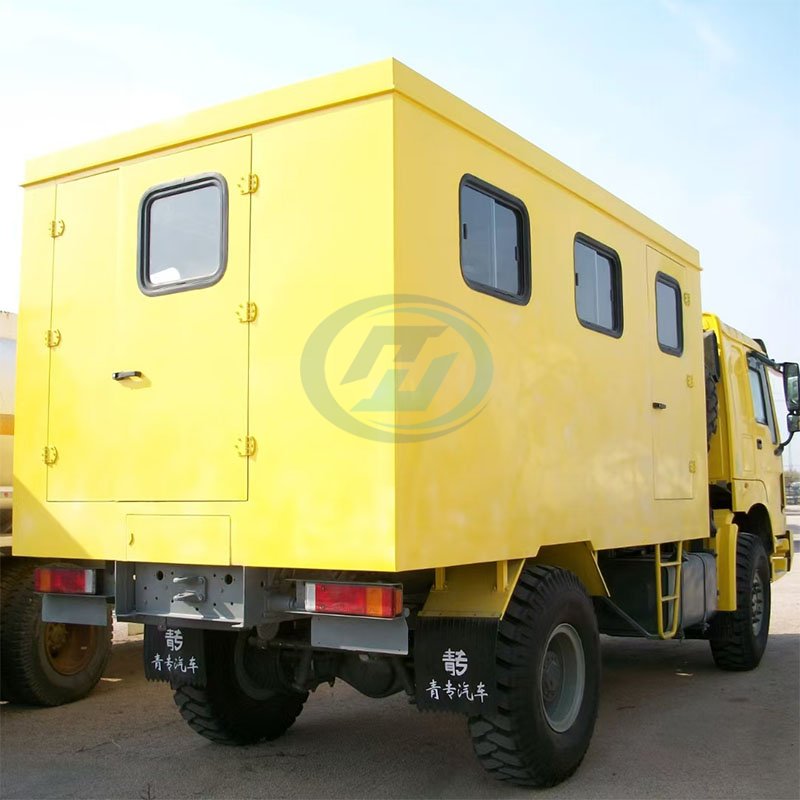

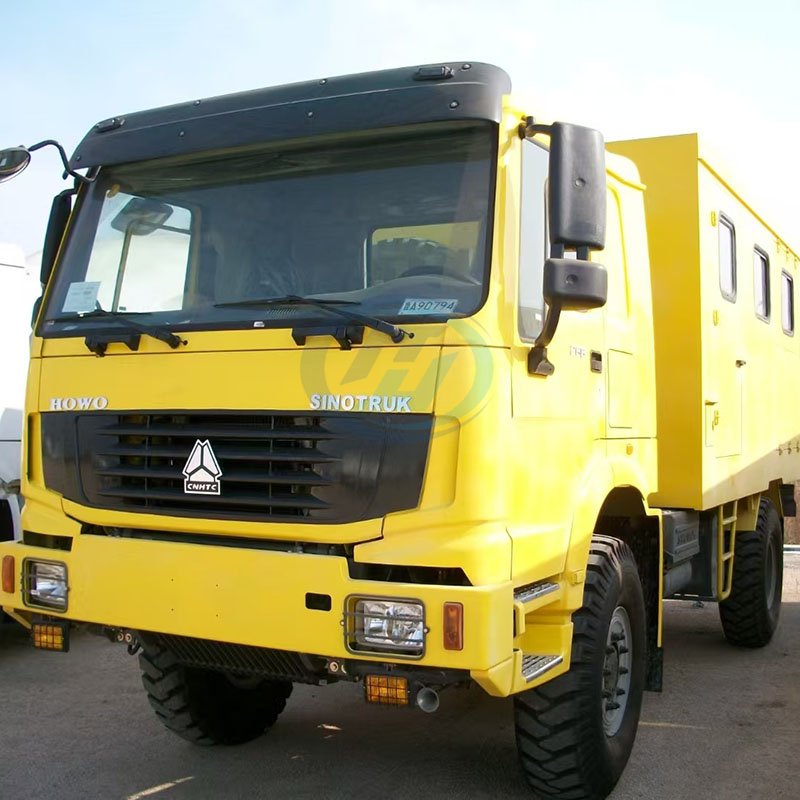

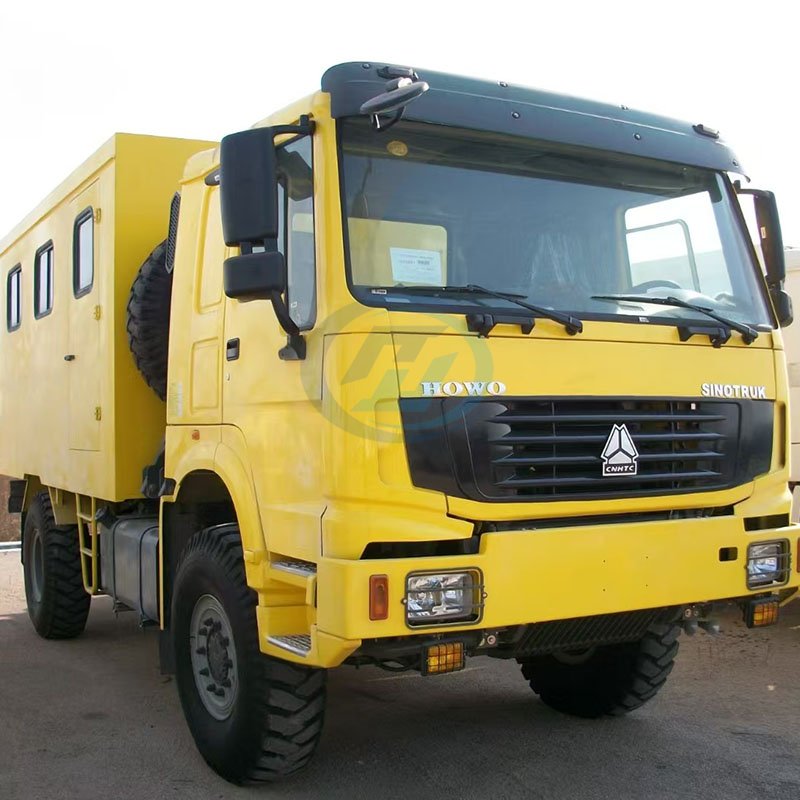

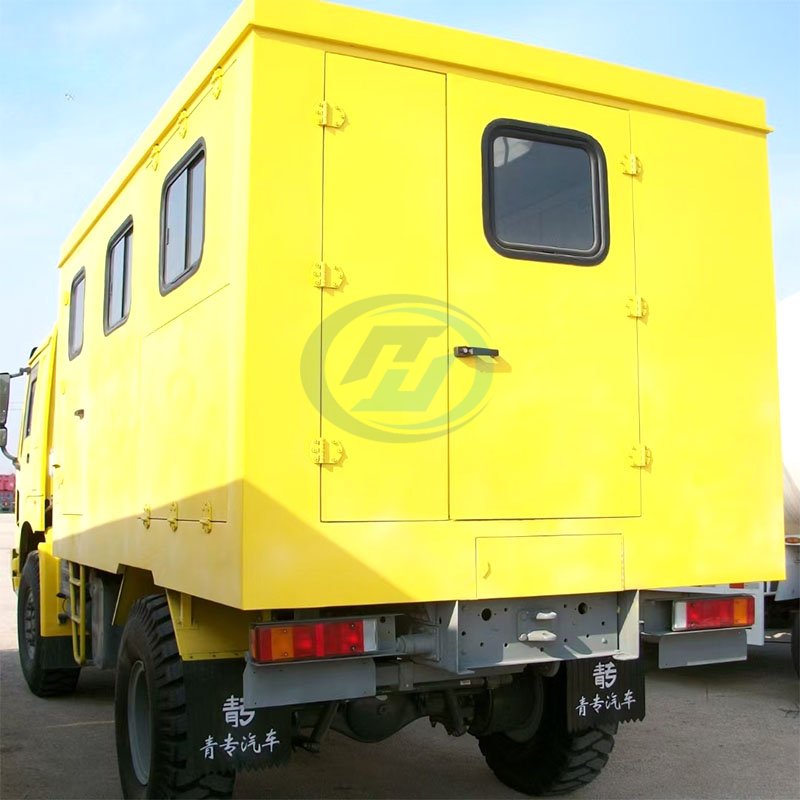

SINOTRUK HOWO-7 4X2 mobile workshop trucks are widely used in road rescue scenarios, equipment maintenance scenarios, and field operation scenarios. It is equipped with various tools, equipment, and often spare parts, enabling technicians to perform repairs and services at the location where the vehicle breaks down. Due to its sturdy structure, high load-bearing capacity, and low fuel consumption, it is widely used in Central and South Asia, Africa, Southeast Asia, and South America. And we can customize the size and steel plate thickness of the cargo box according to your requirements.
Specification
SINOTRUK HOWO-7 4X2 MOBILE WORKSHOP TRUCK | |
Model | ZZ1167N4617B1 |
Cabin | HW76, long cabin, single sleeper, with air conditioner |
Engine | WP10.300E22, 300HP, Euro II Emission standard Option:WP10.340E22(340HP), WP10.380E22(380HP) |
Transmission | HW19710, manual, 10 F & 2 R |
Front axle | 7100kg loading capacity |
Rear axle | 16000kg loading capacity |
Steering | Bosch brand, with Hydraulic assistance |
Tire | 315/80R22.5, 7 pcs (including one spare tire) Option:12.00R20,295/80R22.5,12R22.5 |
Fuel tank | 400L |
Cargo box | 5200*2050*2050mm, with items like crane, wall fan, exciter lamp, acetylene cylinder ect |
Overall dimension | 8700*2550*3900 mm |
Color | White, Red, Blue ,Yellow, Gray |
Product Features
1. All mobile workshop trucks are equipped with high tensile steel leaf springs suspension and reinforced double-layer chassis.
2. Plenty of options are available, including driver's air seat ensuring driver's comfortable driving experience, engine oil pan and intercooler protection plate, top mounted alarming beams (single and dual), engine exhaust valve brake (EVB), oil bath air inlet system good for dusty working condition to protect engine from inhale impure air, reverse buzzer, wind deflector to reduce wind resistance.
3. Classic engine: 300hp, 340hp,371hp,380hp and 400hp for option ; with Euro ll, Ill, IV, V, VI emision standard;
4. Gearbox/Transmission: Sinotruk self-develop HW brand, derived from Fuller gearbox, manual operation (MT), 9/10/12 forwards and 1/2 reverses, synchronizer is optional as well.
5. For some market where the weather temperature is very high, water dripping system is optional for cooling brake drum.
6. Rear Axle: double stage reduction, with full range of diff. ratio, suitable for all complex and mixed road condition.
7. Daily maintenance: on-site service for large users of the team, secondary maintenance of various vehicles. Complete the filling and replacement of the engine, transmission, axle lubricating oil and waste oil storage. Grease filling in all parts of the vehicle. Maintenance and replacement of various types of filters. Tire repair and replacement.
8. Quick repair: repair of the fault of the parts of the vehicle on the road. Equipped with accessory tool storage cabinet and bench vice table, it can repair and replace accessories, valves and other electrical faults, common hydraulic and mechanical faults.
9. Tyres: Mining purpose tyres can be equipped. China famous tyre brand, TRIANGE, is mostly used.
